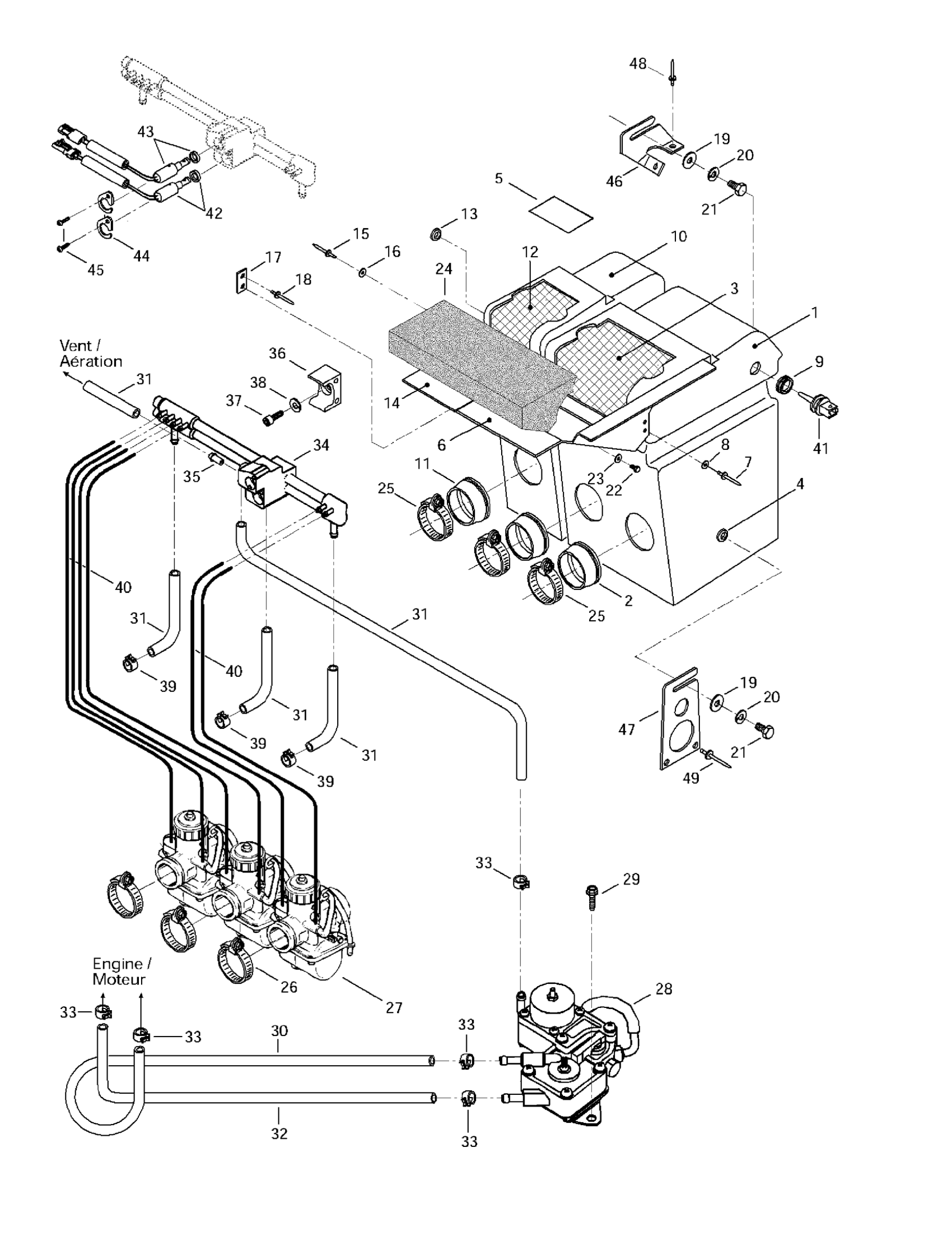

Ski-Doo Grand Touring SE, 1997 02- Air Intake System Diagram

#

Description
Price

1

Air Silencer Ass'y (2 Holes) | Includes 1 - 9.

580647603

Unavailable

2

Intake Adaptor

570047000

Unavailable

3

Air Filter Foam (2 Holes Sil.)

570029007

Unavailable

4

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

5

Warning Decal

414161500

Unavailable

6

Deflector (2 Holes Silencer)

517284900

Unavailable

7

Rivet

390406600

Unavailable

8

Flat Washer

517225900

$0.18

9

GROMMET - Call your local BRP dealership

570065500

Unavailable

10

Air Silencer Ass'y 1 Hole | (Incl. 9,12,31,40,69,70,71,72)

580647700

Unavailable

11

Intake Adaptor

570047000

Unavailable

12

Air Filter Foam (1 Holes Silencer)

572029103

Unavailable

13

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

14

Deflector (1 Holes Silencer)

517285000

Unavailable

15

Rivet

390406600

Unavailable

16

Flat Washer

517225900

$0.18

17

Plate

517278500

Unavailable

18

Pop Rivet 3/16"

390402400

$0.35

19

Flat Washer

224061121

$0.53

20

Lock Washer M6, Black

234161471

$0.53

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

22

Screw M5 x 14

222851465

Unavailable

23

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

24

Air Filter

415027600

Unavailable

25

Clamp

414830100

Unavailable

26

Clamp

420951510

Unavailable

27

Carburetor VM 38 -372 (PTO/MAG)

403128900

Unavailable

Carburetor VM 38 -373 (Center)

403129000

Unavailable

28

Air Pump Ass'y

415061300

Unavailable

29

Hex. Flange Screw M6 X 16

210261650

$1.67

30

Hose

219704549

$50.99

31

Polyurethane Hose 10000Mm Long

219704410

$56.99

32

Impulse Hose 6.35 mm

415063100

Unavailable

33

Spring Clamp

414415200

$0.88

34

Pressure Manifold | Includes 34 - 35.

415061200

Unavailable

35

Air Jet | Grand Touring SE.

404159700

Unavailable

36

Support | Grand Touring SE.

572096100

Unavailable

37

Machined Screw M6 x 16 | Grand Touring SE.

222861613

Unavailable

38

Lock Washer M6, Black

234161471

$0.53

39

Spring Clamp

414554800

$0.88

40

Vent Tube (Long)

404160000

Unavailable

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

41

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

42

Soleno‹d Valve (Female) | Grand Touring SE.

415061400

Unavailable

43

Soleno‹d Valve (Male) | Grand Touring SE.

415061500

Unavailable

44

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

45

SCREW - Call your local BRP dealership

404159300

Unavailable

46

Internal Bracket

518313900

Unavailable

47

External Bracket

517252000

Unavailable

48

Pop Rivet 3/16"

390402200

$0.35

49

Avex Rivet

390909200

$0.30
