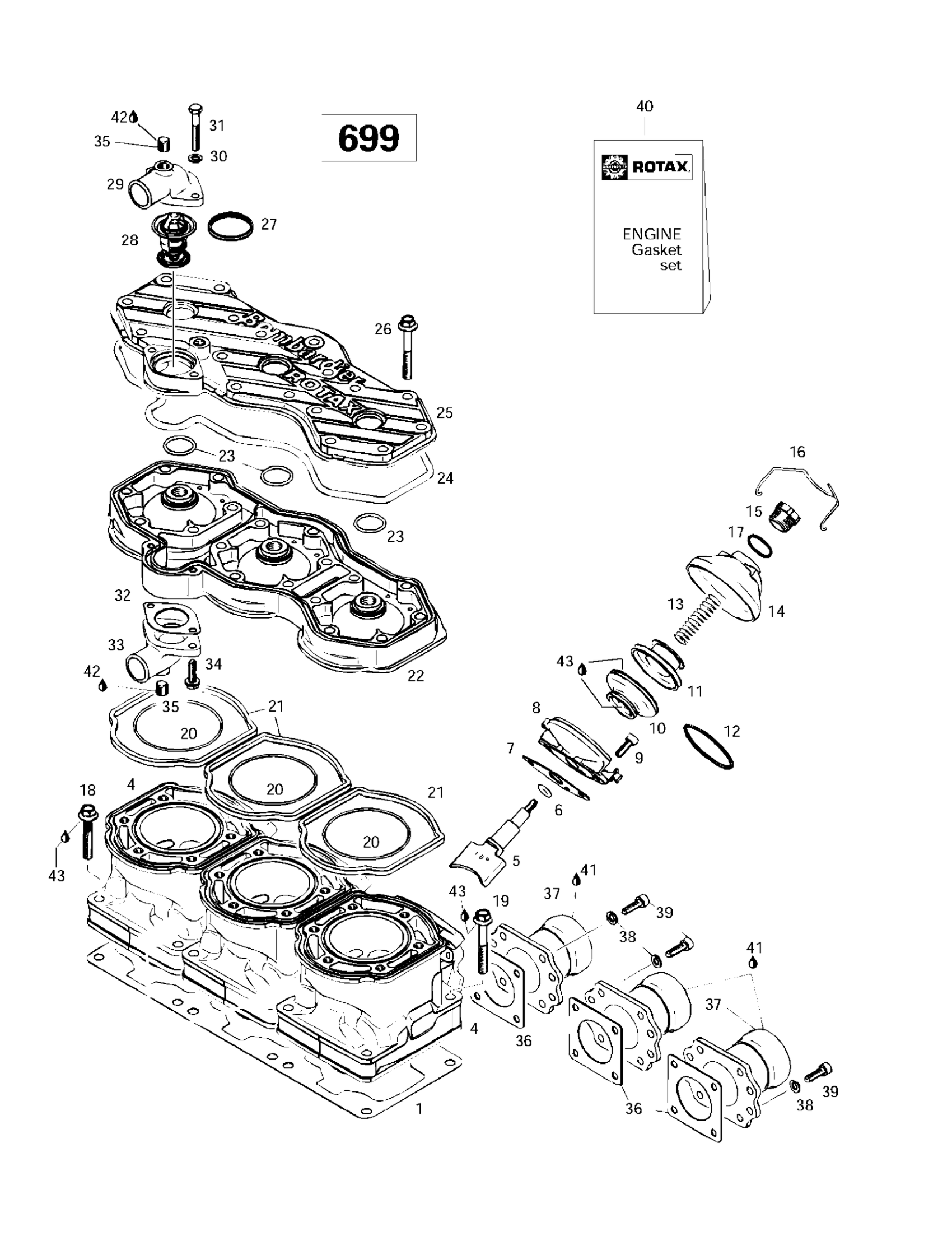

Ski-Doo Grand Touring SE, 1997 Cylinder, Exhaust Manifold (699) Diagram

#

Description
Price

1

BASE GASKET SET - Call your local BRP dealership | Includes 1 - 3. Formula III 700. Formula III 700 R.

420931575

Unavailable

1

Gasket 0.3 mm | Formula III 700 R.

420931570

Unavailable

2

GASKET 0.4 MM - Call your local BRP dealership | Formula III 700 R.

420931571

Unavailable

3

GASKET 0.6 MM - Call your local BRP dealership | Formula III 700 R.

420931572

Unavailable

4

CYLINDER (NICASIL COATED) - Call your local BRP dealership | Formula III 700 R.

420923420

Unavailable

4

REBUILD-CYLINDER NICASIL REP. 699 - Call your local BRP dealership

421000064

Unavailable

5

Exhaust Valve | Formula III 700 R.

420854307

Unavailable

6

O-Ring

420430110

$3.61

7

Gasket

420250239

$6.62

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

$1.85

10

Exhaust Bellows

420260723

$35.07

11

Exhaust Valve This part replaces 290253257.

420854449

$29.87

12

Hose Spring This part replaces 420239048.

420939281

$5.99

13

Spring This part replaces 420239944.

420239954

$7.31

14

Valve Cover

420911552

$37.66

15

Adjuster Screw

420241221

$12.52

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

O-Ring

420430220

$8.03

18

Hex. Collar Screw M8 x 45

420640432

$1.94

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-Ring | Grand Touring 500.

420831792

$15.35

21

SEAL RING - Call your local BRP dealership

420931320

Unavailable

22

Cylinder Head (Violet)

420923125

Unavailable

23

O-Ring

420430782

$4.41

24

O-Ring | Formula III 700 R.

420931330

Unavailable

25

Cylinder Head Cover (Violet) | Formula III 700. Formula III 700 R.

420923135

Unavailable

26

Hex. Screw M8 X 56.5

420941627

$8.34

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

Thermostat This part replaces 414834100.

420922519

$59.20

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Screw M6 X 40

207064044

$1.48

32

Gasket

420850338

$10.28

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

35

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

36

Gasket

420850552

$7.92

37

Exhaust Socket | Formula III 600.

420978816

Unavailable

38

Lock Washer M6, Black

234161471

$0.52

39

Socket Head Screw M6 X 20

205062044

$1.07

40

Gasket Set | Grand Touring SE.

420886312

Unavailable

41

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

42

Loctite 243, 10 ml

293800060

$20.77

43

Dow Corning 111, 150 g

413707000

$57.82
