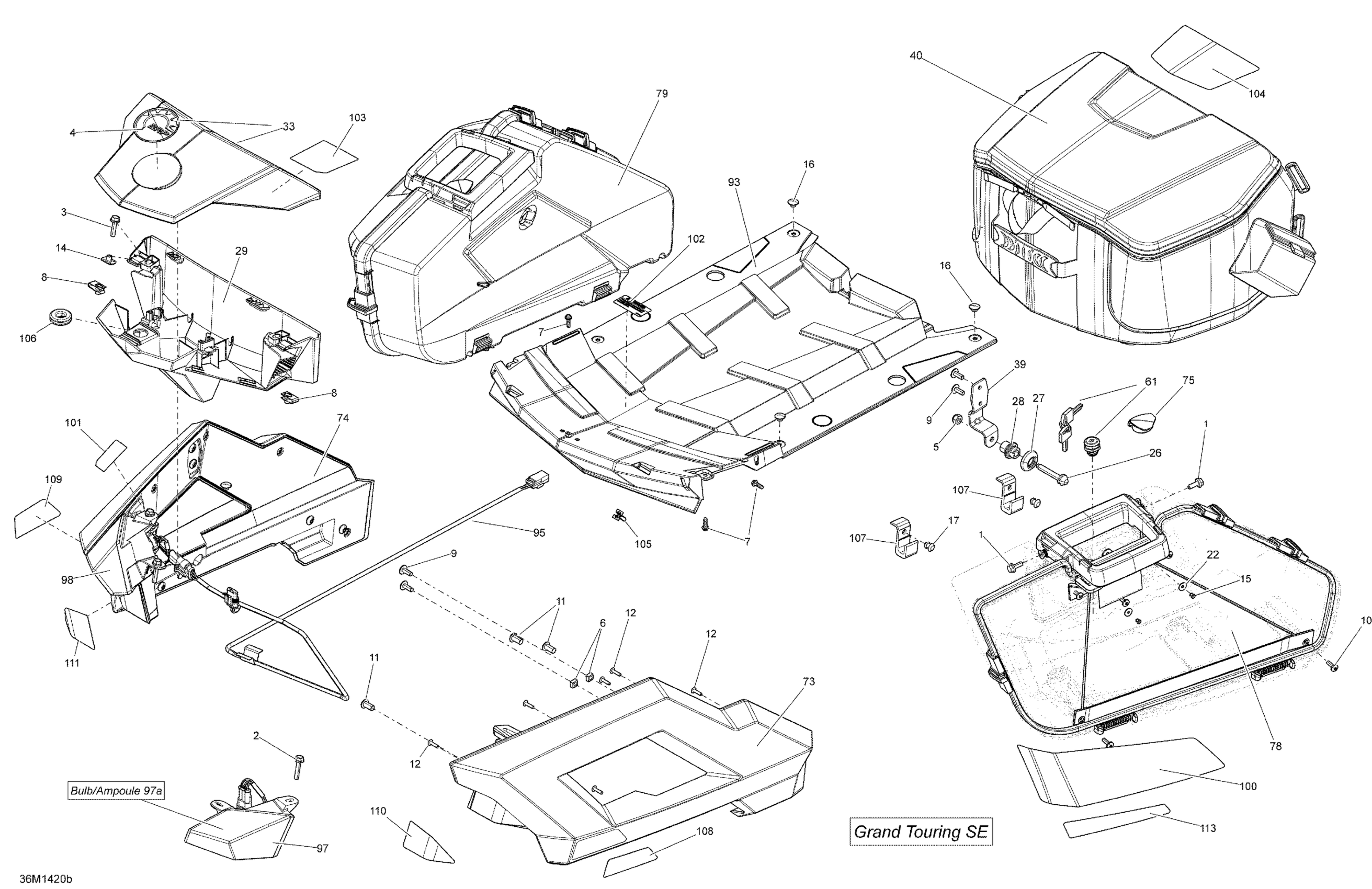

Ski-Doo GRAND TOURING SE 12004TEC XR, 2014 09- Luggage Rack SE Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

3

Hex. Flange Screw M6 X 25

207662554

$1.48

4

BRP Logo 68mm

516008739

$16.99

5

Hex. Elastic Nut M8 Brass

232581200

$2.22

6

Square Nut M6

232862412

$1.49

7

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

8

Panel Nut M6 X 1.0

250100198

$2.11

9

Torx Truss Screw M6 X 16

250000721

$1.69

10

Torx Screw K50 X 16

250000720

$1.69

11

Torx Screw M8 X 16

250000751

$6.11

12

Torx-Truss Pt K40 X 16

250000759

$2.11

14

Nut Welded, M6

293100003

$9.12

15

Pop RIvet 1/8 X ,375

293150285

$0.33

16

Pop Rivet 3/16"

293150103

$0.55

17

Ornit Rivet 6,5 X 14.5

293150266

$2.40

22

WASHER - Call your local BRP dealership

391301000

$0.70

26

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

27

Rubber Bumper | Package SE

511000358

$56.99

28

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

29

Rack Ass'y

511000530

$72.99

33

Cover

511000545

$77.99

39

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

511000580

Unavailable

40

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

860200174

Unavailable

61

LOCK - Call your local BRP dealership | Package SE

511000599

Unavailable

73

RH Arm Ass'y

511000631

$91.99

74

LH Arm Ass'y

511000632

$91.99

75

Black Sealing Cap | Package SE

511000639

$16.99

78

RH SUIT CASE - Call your local BRP dealership

511000848

Unavailable

79

LH SUIT CASE - Call your local BRP dealership

511000849

Unavailable

93

Radiator Cover

511000861

$52.99

95

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

97

RH Tail Light Ass'y

515176849

$59.49

98

LH Tail Light Ass'y

515176850

$59.49

100

RH Suit Case Decal

516005532

Unavailable

100

LH Suit Case Decal

516005531

Unavailable

101

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

102

WARNING DECAL - Call your local BRP dealership

516005523

Unavailable

103

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

104

Bag Decal

516005527

Unavailable

105

Edge Clip

517302785

$0.88

106

Grommet

517303756

$4.09

107

Support Plate | Package SE

518325618

$19.99

108

Red RH Rear Reflector

520000729

$15.99

109

RED LH REAR REFLECTOR - Call your local BRP dealership

520000730

Unavailable

110

Red RH Rear Reflector

520000731

$15.99

111

Red LH Rear Reflector

520000732

$16.99

113

Red RH Rear Reflector | Package SE

520000757

$16.99

113

Red LH Rear Reflector | Package SE

520000756

$15.99

97a

Bulb

520000758

$9.10
