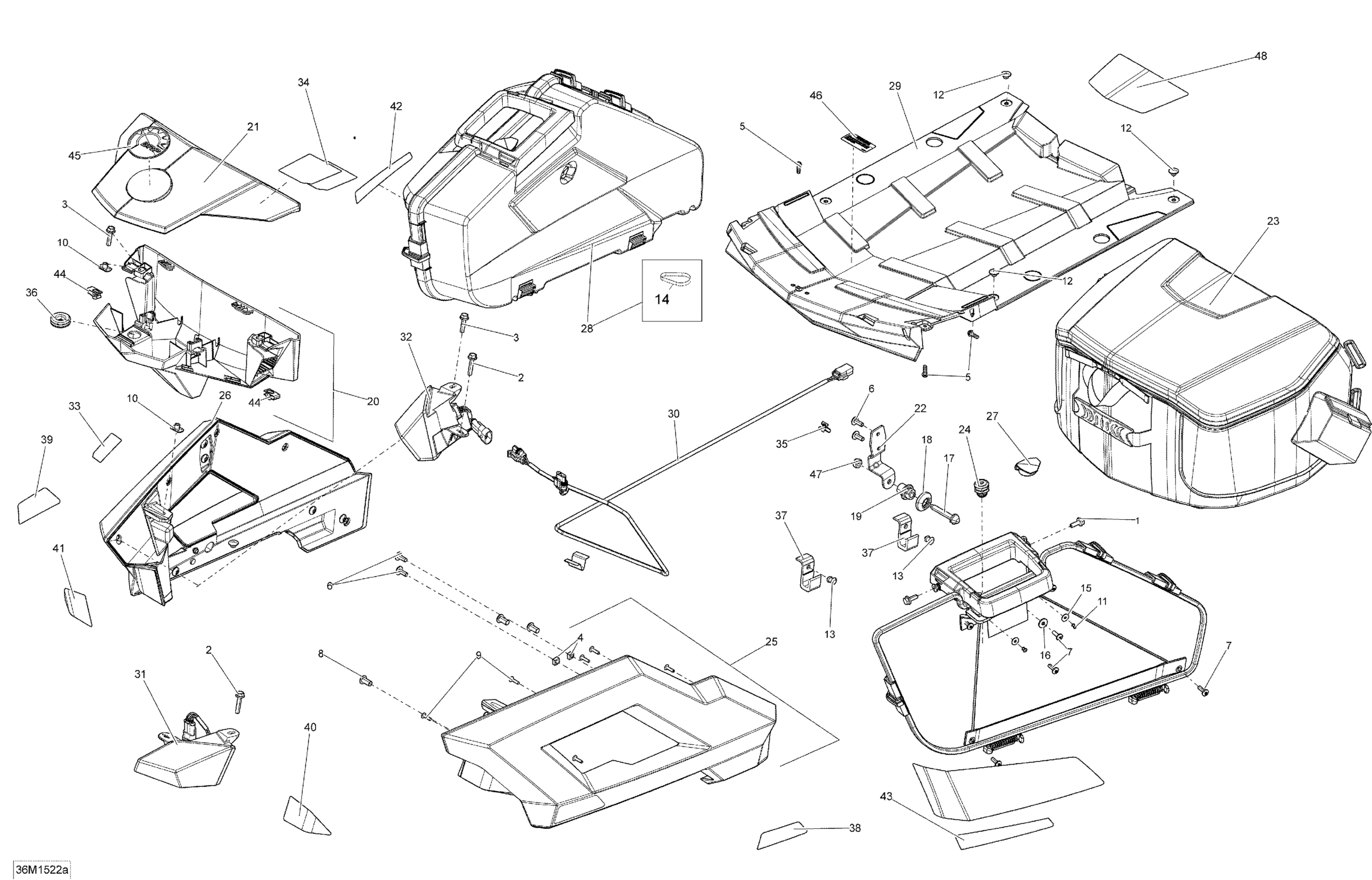

Ski-Doo Grand Touring SE 1200 XR137, 2015 09- Luggage Rack SE_36M1522a Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

3

Hex. Flange Screw M6 X 25

207662554

$1.48

4

Square Nut M6

232862412

$1.49

4

Square Nut M6

232862412

$1.49

5

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

6

Torx Truss Screw M6 X 16

250000721

$1.69

7

Torx Screw K50 X 16

250000720

$1.69

7

Torx Screw K50 X 16

250000720

$1.69

8

Torx Screw M8 X 16

250000751

$6.11

9

Torx-Truss Pt K40 X 16

250000759

$2.11

9

Torx-Truss Pt K40 X 16

250000759

$2.11

10

Nut Welded, M6

293100003

$9.12

11

Pop RIvet 1/8 X ,375

293150285

$0.33

11

Pop RIvet 1/8 X ,375

293150285

$0.33

12

Pop Rivet 3/16"

293150103

$0.55

13

Ornit Rivet 6,5 X 14.5

293150266

$2.40

14

Tie Wrap 94 mm | 4X4

293750001

$1.03

15

WASHER - Call your local BRP dealership

391301000

$0.70

15

WASHER - Call your local BRP dealership

391301000

$0.70

16

Washer | DS 650 X

391301600

$0.48

16

Washer | DS 650 X

391301600

$0.48

17

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

18

Rubber Bumper | Package SE

511000358

$56.99

19

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

20

Rack Ass'y

511000530

$72.99

21

Cover

511000545

$77.99

22

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

511000580

Unavailable

23

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

860200174

Unavailable

24

LOCK - Call your local BRP dealership | Package SE

511000599

Unavailable

25

RH Arm Ass'y

511000631

$91.99

26

LH Arm Ass'y

511000632

$91.99

27

Black Sealing Cap | Package SE

511000639

$16.99

27

Black Sealing Cap | Package SE

511000639

$16.99

28

RH BAG - Call your local BRP dealership

511001012

Unavailable

28

LH BAG - Call your local BRP dealership

511001013

Unavailable

29

Radiator Cover

511000861

$52.99

30

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

31

RH Tail Light Ass'y

515176849

$59.49

32

LH Tail Light Ass'y

515176850

$59.49

33

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

34

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

35

Edge Clip

517302785

$0.88

36

Grommet

517303756

$4.09

37

Support Plate | Package SE

518325618

$19.99

38

Red RH Rear Reflector

520000729

$15.99

39

RED LH REAR REFLECTOR - Call your local BRP dealership

520000730

Unavailable

40

Red RH Rear Reflector

520000731

$15.99

41

Red LH Rear Reflector

520000732

$16.99

42

Red LH Rear Reflector | Package SE

520000756

$15.99

43

Red RH Rear Reflector | Package SE

520000757

$16.99

44

Panel Nut M6 X 1.0

250100198

$2.11

45

BRP Logo 68mm

516008739

$16.99

46

WARNING DECAL - Call your local BRP dealership

516005523

Unavailable

47

Hex. Elastic Nut M8 Brass

232581200

$2.22

48

BAG DECAL - Call your local BRP dealership

516006674

Unavailable
