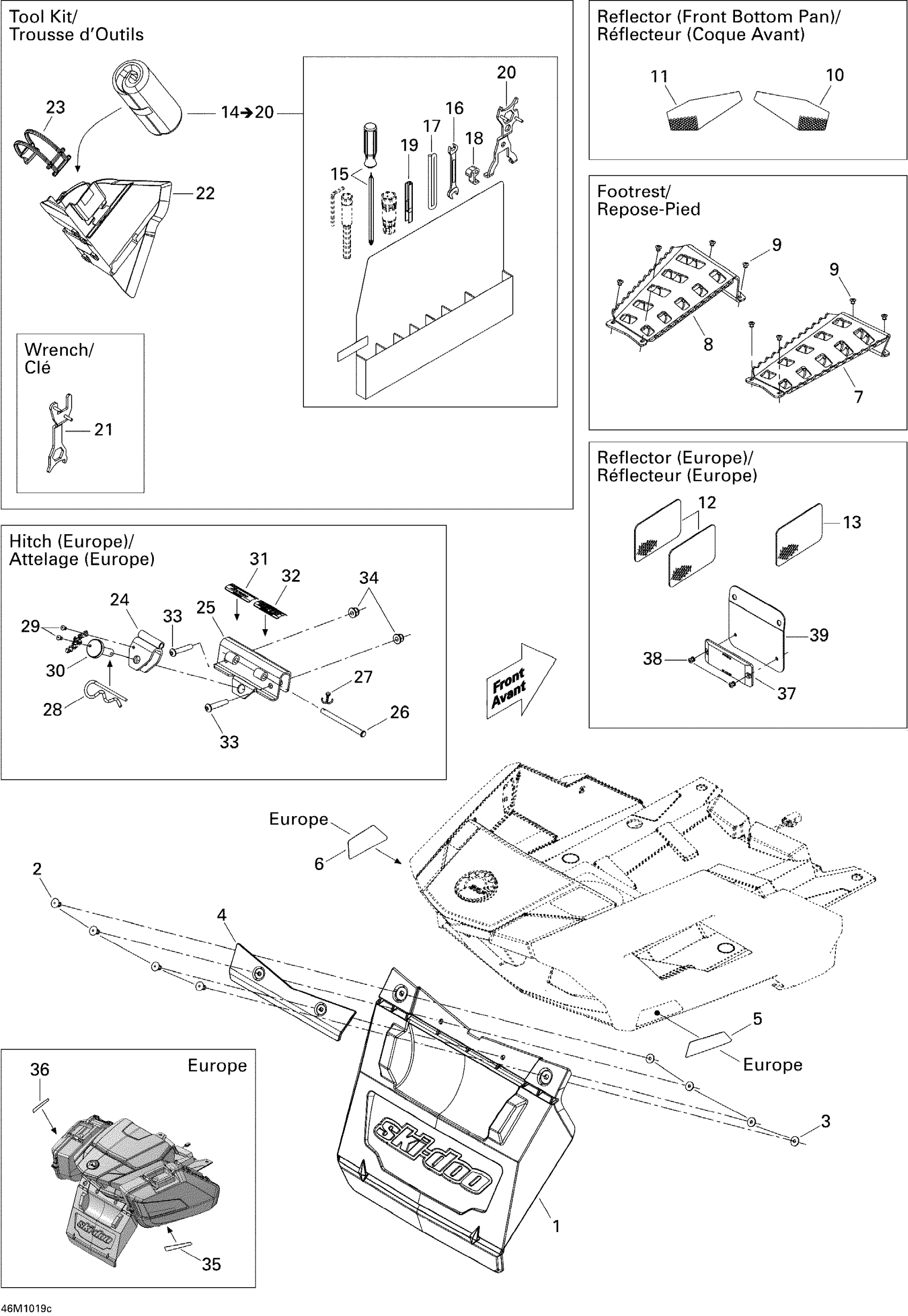

Ski-Doo Grand-Touring SE 1200, 2010 09- Utilities SE 1200 Diagram

#

Description
Price

1

Snow Guard

520000659

$84.99

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.19

4

Reinforcement

520000751

$20.99

5

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Europe

520000803

Unavailable

6

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Europe

520000804

Unavailable

7

MAT BLACK RH FOOTREST - Call your local BRP dealership

520000768

Unavailable

8

MAT BLACK LH FOOTREST - Call your local BRP dealership

520000769

Unavailable

9

Rivet 3/16"

293150102

$0.70

10

RH FRONT REFLECTOR - Call your local BRP dealership

520000759

Unavailable

11

LH FRONT REFLECTOR - Call your local BRP dealership

520000760

Unavailable

12

Amber, Reflector

520000271

$19.99

13

White, Reflector

415037900

$22.99

14

Tool Kit | Includes 20 To 28

529000065

$55.99

15

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

16

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

17

Was 412500100 Rope-Starter

219704403

$158.99

18

Starter Grip

529000060

$14.15

19

Spacing Tool

529035501

$4.72

20

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

21

WRENCH - Call your local BRP dealership

520000721

Unavailable

22

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

23

Latch

520000528

$7.69

24

Support

511000554

$19.49

25

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

26

Lock Pin

511001451

$9.49

27

Cotter Pin

371800200

$0.53

28

Hair Pin

114045200

$11.11

29

Pop Rivet 5/32” | Model Europe

390404300

$0.35

30

Pin

511000555

$19.49

31

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

32

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

33

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000831

Unavailable

36

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000832

Unavailable

37

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

38

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

39

REFLECTOR SUPPORT - Call your local BRP dealership | Model-Europe

520000933

Unavailable
