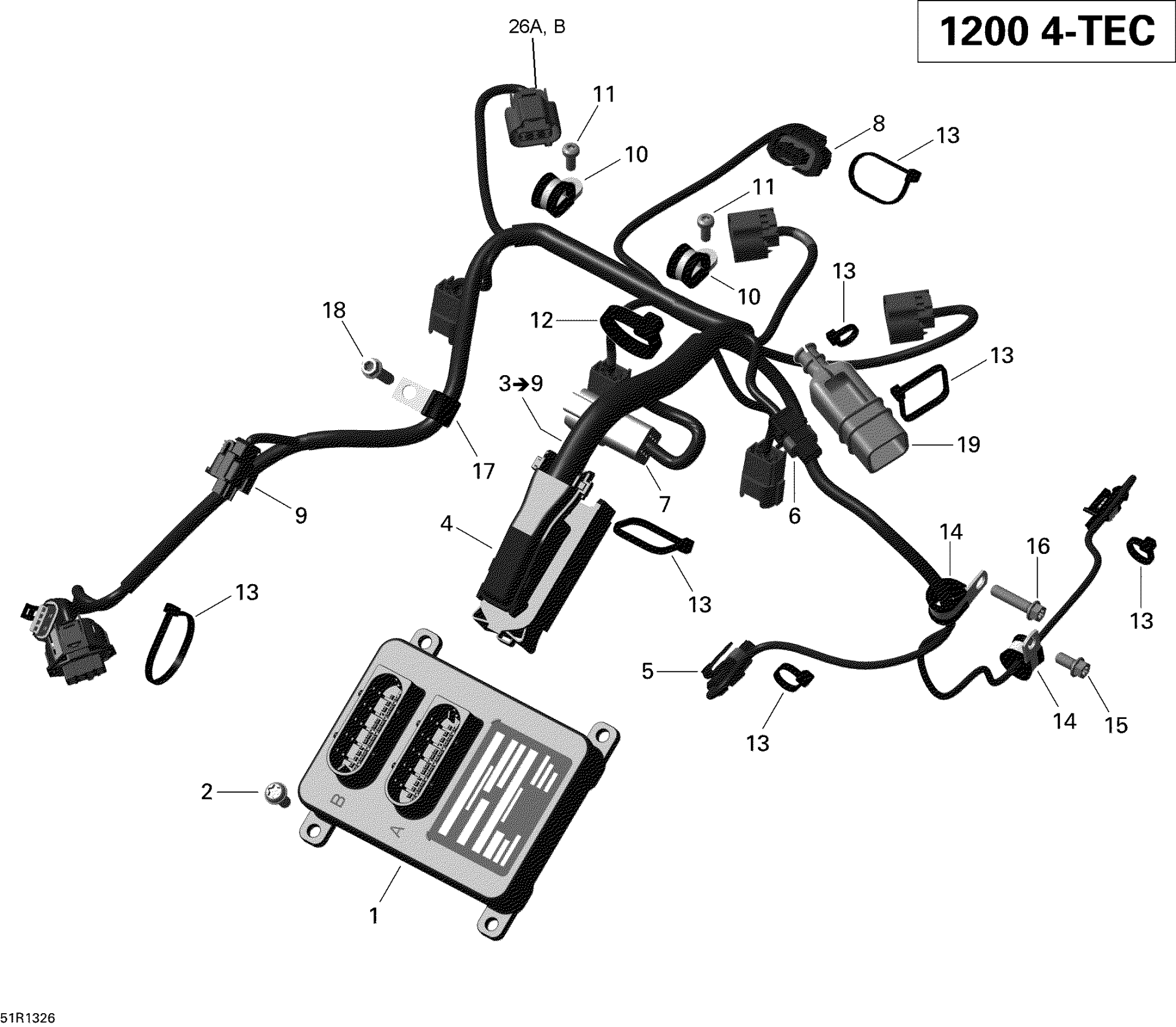

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 10- Engine Harness And Electronic Module Diagram

ECM, Engine Control Module

420666128

$1.00

Torx Flange Screw M6 X 16

420641588

$2.11

Engine Wiring Harness Ass'y

420665638

$519.99

ECM Connector

420664450

$27.49

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 2 Circuits

278001005

$19.49

Male Terminal Housing, 6 Circuits

710001539

$19.99

Housing Connector, 3 Circuits

278001830

$35.99

Housing Connector, 3 Circuits

278001829

$21.99

CABLE CLAMP - Call your local BRP dealership

420851108

$8.79

Torx Screw M5 X 12

420640086

$2.11

Tie-Rap

420866716

$1.90

Tie Rap

420651397

$1.01

Cable Clamp

420851492

$14.28

Hex. Flange Screw M6 X 12

420440147

$2.00

Torx Flange Screw M6 X 25

420440234

$3.06

Cable Clamp

420251812

Unavailable

Torx Flange Screw M6 X 25

420440234

$3.06

PROTECTOR - Call your local BRP dealership

420201070

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Female Terminal

710000335

$2.29

Seal

409012300

$4.54
