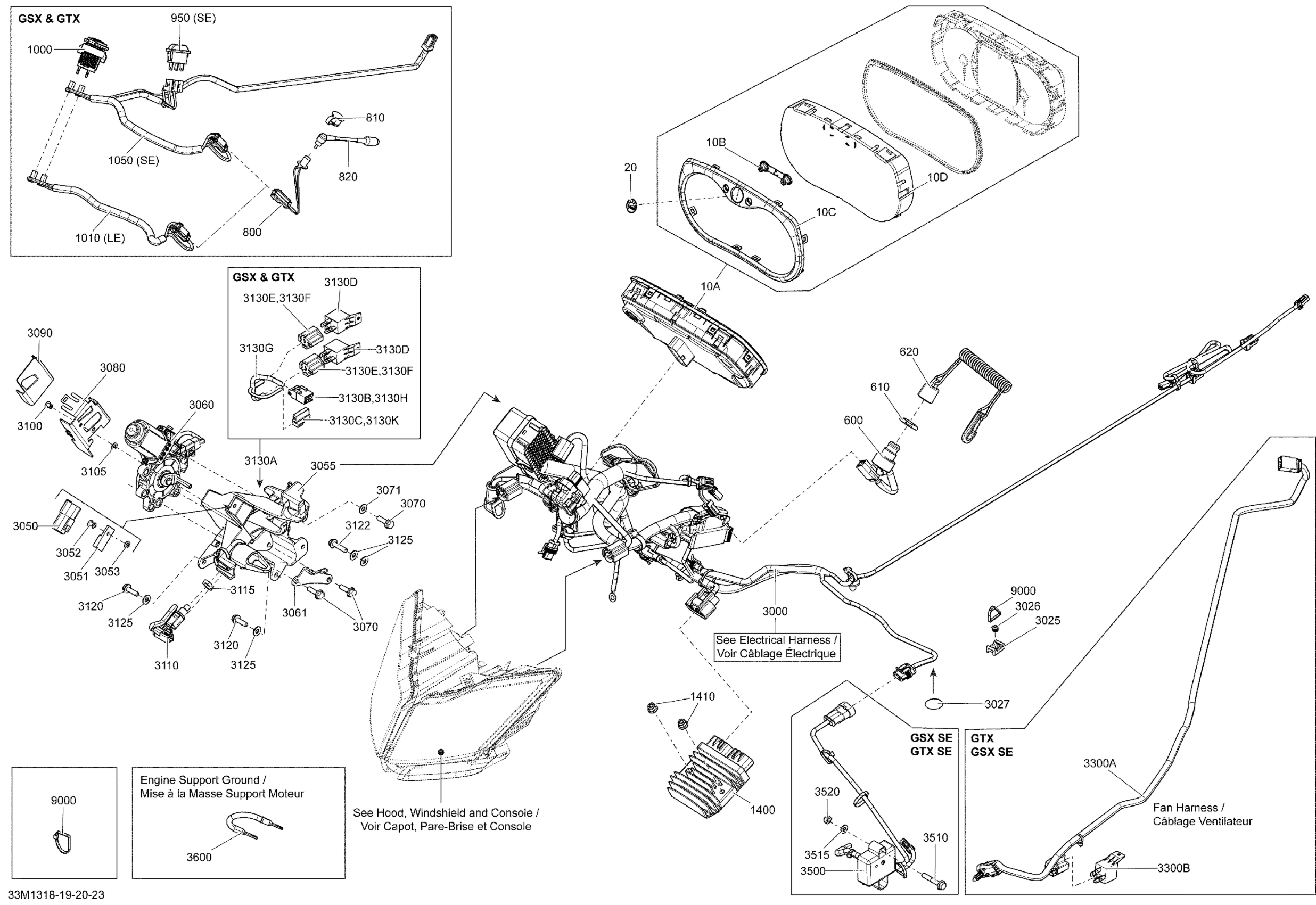

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 Electrical System Diagram

Speedometer | Includes 10 to 10c

515177910

$596.99

Speedometer Button | XTP

415129355

$13.52

Gauge Ring

415129348

$11.36

Lens | XTP

415129349

$22.36

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

DESS Switch

515177249

$102.96

Safety Nut (DESS Switch)

278002963

$3.12

DESS

515178284

$79.07

Visor Harness

515177837

$31.31

Cap

572103300

$9.36

Extension

515175851

$10.55

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

DC Outlet

710001248

$35.79

Harness Accessories

515177188

$34.30

SEAT HARNESS - Call your local BRP dealership

515177189

Unavailable

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

WIRING HARNESS - Call your local BRP dealership | Includes 1 to VC

515177380

Unavailable

Tie Rap Mount (screwable)

515176795

$4.96

Avex Rivet

390909200

$0.28

Adhesive Patch

518325560

$4.21

Housing

710003006

$8.31

Clip

270000141

$9.57

Pop Rivet 3/16"

390402200

$0.30

Flat Washer M5

234051410

$0.51

MULTIFUNCTION PLATE - Call your local BRP dealership

515177428

Unavailable

Electrical Motor Ass'y

515178574

$238.03

PLATE - Call your local BRP dealership

515177039

Unavailable

Hex. Flange Screw M6 X 20

207662044

$1.91

Flat Washer

224061121

$0.51

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

Pop Rivet 3/16"

390402200

$0.30

Flat Washer M5

234051410

$0.51

Switch Ass'y

515176472

$69.37

Brass Nut

250000373

Unavailable

Hex. Flange Screw M6 X 20

210262040

$2.00

Not Available As Spare Parts

XXX

Unavailable

Flat Washer

250200039

$0.70

REVERSE CABLE - Call your local BRP dealership | Includes 3130A to 3130K

515176760

Unavailable

Male Terminal

515175232

$1.45

Female Terminal

515175282

$6.24

Relay | DS 650 X

710010053

Unavailable

Female Housing, 5 Circuits

409209900

$8.72

Female Terminal

561503100

Unavailable

Tubing 10 MM 1000MM Long

219704407

$2.52

Male Terminal Housing, 4 Circuits

515175846

$8.31

Female Terminal Housing

515176550

$6.24

Fan Harness

515177646

$49.97

Relay | DS 650 X

710010053

Unavailable

Compressor Module

515177234

$409.99

Hex. Flange Screw M6 X 35

207663544

$0.85

Flat Washer 6 mm

234061410

$1.19

Elastic Stop Nut M6

232561414

$1.78

Ground Wire

515177289

$24.60

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie Wrap 142 mm

293750002

$1.01

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 206 mm

293750027

$2.61

Tie Wrap 368 mm

293750008

$0.97
