Description

Price

2

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

3

Hex. Flange Screw M6 X 25

207662554

$1.48

4

BRP Logo 68mm

516008739

$16.99

5

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

8

Panel Nut M6 X 1.0

250100198

$2.11

9

Torx Truss Screw M6 X 16

250000721

$1.69

11

Torx Screw M8 X 16

250000751

$6.11

12

Torx-Truss Pt K40 X 16

250000759

$2.11

14

Nut Welded, M6

293100003

$9.12

16

Pop Rivet 3/16"

293150103

$0.55

17

Ornit Rivet 6,5 X 14.5

293150266

$2.40

19

Bulb

520000758

$9.10

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

27

Rubber Bumper | Package SE

511000358

$56.99

28

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

29

Rack Ass'y

511000530

$72.99

31

Radiator Cover

511000861

$52.99

34

Cover

511000545

$77.99

40

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

511000580

Unavailable

41

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

860200174

Unavailable

54

LOCK - Call your local BRP dealership | Package SE

511000599

Unavailable

74

RH Arm Ass'y

511000631

$91.99

75

LH Arm Ass'y

511000632

$91.99

76

Black Sealing Cap | Package SE

511000639

$16.99

79

RH SUIT CASE - Call your local BRP dealership

511000848

Unavailable

80

LH SUIT CASE - Call your local BRP dealership

511000849

Unavailable

97

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

99

RH Tail Light Ass'y

515176849

$59.49

100

LH Tail Light Ass'y

515176850

$59.49

101

LH Suit Case Decal

516005531

Unavailable

102

RH Suit Case Decal

516005532

Unavailable

103

Bag Decal

516005527

Unavailable

104

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

105

WARNING DECAL - Call your local BRP dealership

516005523

Unavailable

106

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

107

Edge Clip

517302785

$0.88

108

Grommet

517303756

$4.09

109

Support Plate | Package SE

518325618

$19.99

110

Red RH Rear Reflector

520000729

$15.99

111

RED LH REAR REFLECTOR - Call your local BRP dealership

520000730

Unavailable

112

Red RH Rear Reflector

520000731

$15.99

113

Red LH Rear Reflector

520000732

$16.99

114

Red LH Rear Reflector | Package SE

520000756

$15.99

115

Red RH Rear Reflector | Package SE

520000757

$16.99

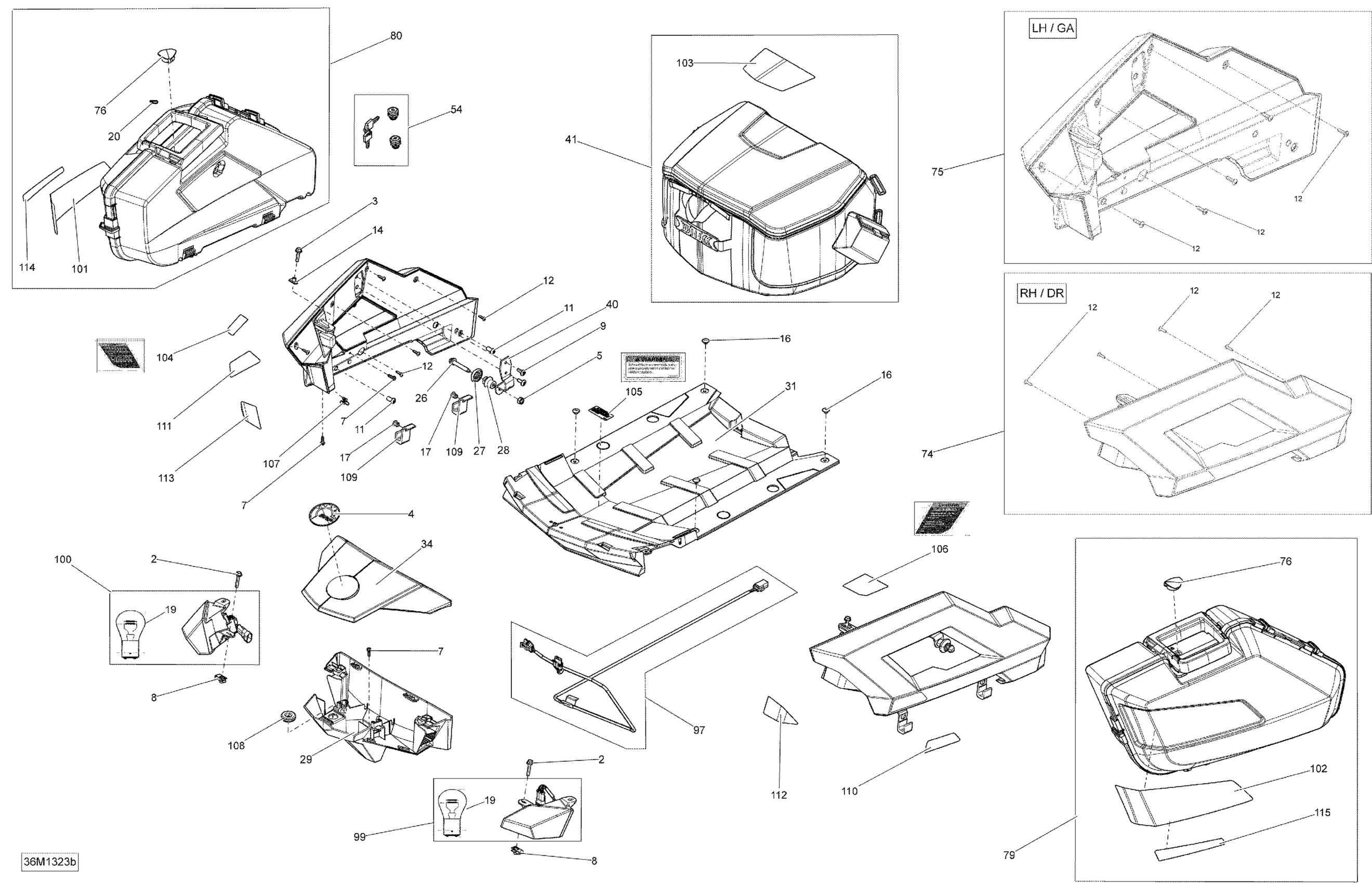

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 09- Luggage Rack Diagram

Hex. Flange Screw M6 X 30, Scotch Grip

Hex. Flange Screw M6 X 25

BRP Logo 68mm

Hex. Elastic Nut M8 Brass

Hex. Flange Screw K50 X 2.24 X 16

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Torx Screw M8 X 16

Torx-Truss Pt K40 X 16

Nut Welded, M6

Pop Rivet 3/16"

Ornit Rivet 6,5 X 14.5

Bulb

Tie Wrap 94 mm | 4X4

SUITCASE STUD - Call your local BRP dealership | Package SE

Rubber Bumper | Package SE

STUD NUT - Call your local BRP dealership | Package SE

Rack Ass'y

Radiator Cover

Cover

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

LOCK - Call your local BRP dealership | Package SE

RH Arm Ass'y

LH Arm Ass'y

Black Sealing Cap | Package SE

RH SUIT CASE - Call your local BRP dealership

LH SUIT CASE - Call your local BRP dealership

HARNESS RACK - Call your local BRP dealership

RH Tail Light Ass'y

LH Tail Light Ass'y

LH Suit Case Decal

RH Suit Case Decal

Bag Decal

WARNING DECAL, SECURITY - Call your local BRP dealership

WARNING DECAL - Call your local BRP dealership

WARNING DECAL, SECURITY - Call your local BRP dealership

Edge Clip

Grommet

Support Plate | Package SE

Red RH Rear Reflector

RED LH REAR REFLECTOR - Call your local BRP dealership

Red RH Rear Reflector

Red LH Rear Reflector

Red LH Rear Reflector | Package SE

Red RH Rear Reflector | Package SE
