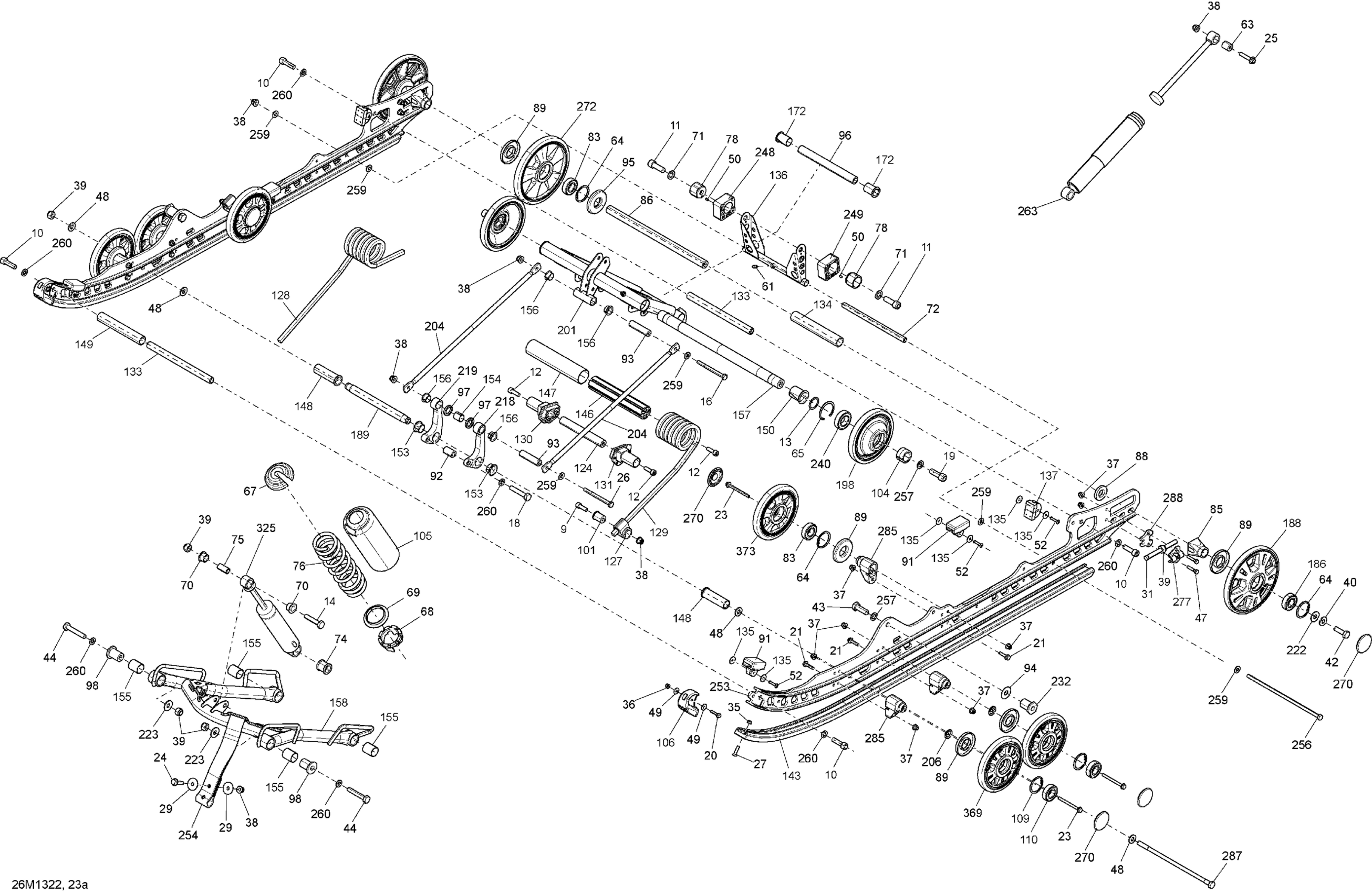

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 08- Rear Suspension LE Diagram

#

Description
Price

9

Socket Screw M8 X 25

205082554

$2.11

10

Socket Head Screw M10 X 35

205503554

$7.51

11

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

12

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

13

Washer

503190328

$12.65

14

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

16

Hex. Screw M8 X 90

207089044

$3.48

18

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

19

Socket Head Screw M12 X 35

205523554

$4.44

20

Hex. Flange Screw M5 X 25

207652544

$0.50

21

Hex. Flange Screw M6 X 25

207662556

$4.44

23

Hex. Flange Screw M6 X 70

207667056

$4.44

24

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

25

Hex. Flange Screw M8 X 40

207684044

$1.48

26

Hex. Screw M8 X 90

207089044

$3.48

27

Phillips Screw M6 X 25

208562531

$2.11

29

Flat Washer 8 mm

250200128

$4.44

31

Hex Screw M10 x 100

230100054

$6.45

35

Elastic Stop Nut M6

232561414

$0.55

36

Hex. Flange Elastic Nut M5

233251414

$1.04

37

Hex. Flange Elastic Nut M6

233261466

$2.00

38

Elastic Flange Nut M8

233281466

$1.01

39

Elastic Locking Nut M10

233601466

$2.11

40

Conical Spring Washer 10 mm

234201474

$1.69

42

Hex. Screw With Nylon

250000019

$1.69

43

Hex. Cap Screw M12 X 35

250000537

$3.17

44

Hex. Cap Screw M10 X 60

207006056

$7.51

47

Hex. Cap Screw M6 X 30

207063054

$6.39

48

Washer

250200138

$2.11

49

Washer

250200140

$1.01

50

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

52

Pop Rivet 3/16"

293150142

$2.29

61

Grease Fitting

408200700

$3.49

63

Bushing

414936000

$13.99

64

Retaining Ring

415129371

$12.01

65

Retaining Ring

415129371

$12.01

67

Spring Stopper

706200881

$12.99

68

Adjustment Cam

505073625

$12.99

69

Spring Guide

503191872

$2.29

70

Urethane Bushing

503189117

$8.19

71

Washer | 7415/7416. 7417/7418.

503189148

$2.85

72

Pivot Arm Axle

503189156

$21.99

74

Bushing

503189271

$13.99

75

Bushing | Includes 240d to 240d1

503189282

$4.34

76

Black, Spring

503191879

$62.49

78

Block Guide

503189488

$39.99

83

Ball Bearing | Package-STD

503190396

$14.30

85

Rear Wheel Spacer

503190428

$8.14

86

Rear Axle

503190429

$59.99

88

Washer

503190432

$14.22

89

Labyrinth Seal

503190434

$6.09

91

Rubber Stopper

503190576

$12.99

92

Central Shock Axle

503190604

$14.15

93

Axle Bar (Long)

503190643

$17.39

94

Washer

503190656

$2.96

95

Labyrinth Seal

503190682

$6.19

96

Lower Shaft

503192330

$45.99

97

Plastic Spacer

503190694

$2.11

98

Axle

503190698

$20.99

101

Spring Support Kit

861805547

$10.49

104

Retaining Ring

503191099

$8.29

105

Protector

503193663

$37.99

106

Runner Protector

503191137

$11.99

109

Retaining Ring

415129371

$12.01

110

Ball Bearing | Package-STD

503190396

$14.30

124

Spring Cam Axe

503191178

$28.99

127

Spring Support Kit

861805547

$10.49

128

RH SPRING, SQUARE - Call your local BRP dealership

503191616

Unavailable

129

LH SPRING, SQUARE - Call your local BRP dealership

503191617

Unavailable

130

RH Spring Cam

503191190

$15.29

131

LH Spring Cam

503191191

$15.79

133

Axle Strap

503191260

$30.99

134

Spacer

503196317

$18.49

135

Washer

503191273

$1.35

136

Pivot Arm

503191302

$124.99

137

Rubber Stopper

503191291

$19.99

143

Black, Slider Shoe 137''

503191306

$29.49

146

Spring Axle

503191344

$36.99

147

Plastic Bushing

503191345

$7.83

148

Center Bushing

503191351

$8.29

149

Spacer

503191448

$11.99

150

Cushion

503191451

$14.15

153

Bushing

503191552

$5.93

154

Bushing

503191553

$5.93

155

Bushing

503191554

$6.14

156

Swivel Bushing

503191555

$7.83

157

UPPER SHAFT - Call your local BRP dealership

503191571

Unavailable

158

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

172

Cushion

503191640

$5.93

186

Ball Bearing | Package-STD

503190396

$14.30

188

Full Moon Wheel Ass'y, 180 mm

503191627

$51.99

189

Center Shaft

503191764

$63.49

198

WHEEL 144 MM ASS'Y - Call your local BRP dealership

503191739

Unavailable

201

REAR ARM ASS'Y - Call your local BRP dealership

503191967

Unavailable

204

ROD-THROTTLE - Call your local BRP dealership

503191974

Unavailable

206

Wheel Cup M6

503191820

$4.99

218

LH Rocker Arm

503191890

$62.49

219

RH Rocker Arm

503191894

$62.49

222

Washer

503191910

$2.32

223

Washer

503191926

$1.58

232

Lower Axle

503191966

$15.89

240

Ball Bearing

503193548

$17.99

248

RH Block, 4 Positions

503192300

$25.99

249

LH Block, 4 Positions

503192301

$25.99

253

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192318

Unavailable

254

Stopper Strap

503192360

$20.99

256

Bolt M8 X 248mm

503192440

$30.49

257

Washer

503192491

$4.54

259

Washer

503192494

$3.17

260

Washer

503192496

$0.77

263

Rear Shock HPG SEAL

503193192

$248.99

270

Black, Wheel Cap

503192771

$2.39

272

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

277

Tensioner

503192583

$8.29

285

Casted Support

503193894

$16.49

287

Bolt M10 X 251MM

503193227

$17.29

288

Spacer

503193250

$16.49

325

Center Shock

503191590

$164.49

369

Full Moon Wheel Ass'y, 141 mm

503191622

$37.99

369

Full Moon Wheel Ass'y, 147 mm

503191624

$48.49

373

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

373

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49
