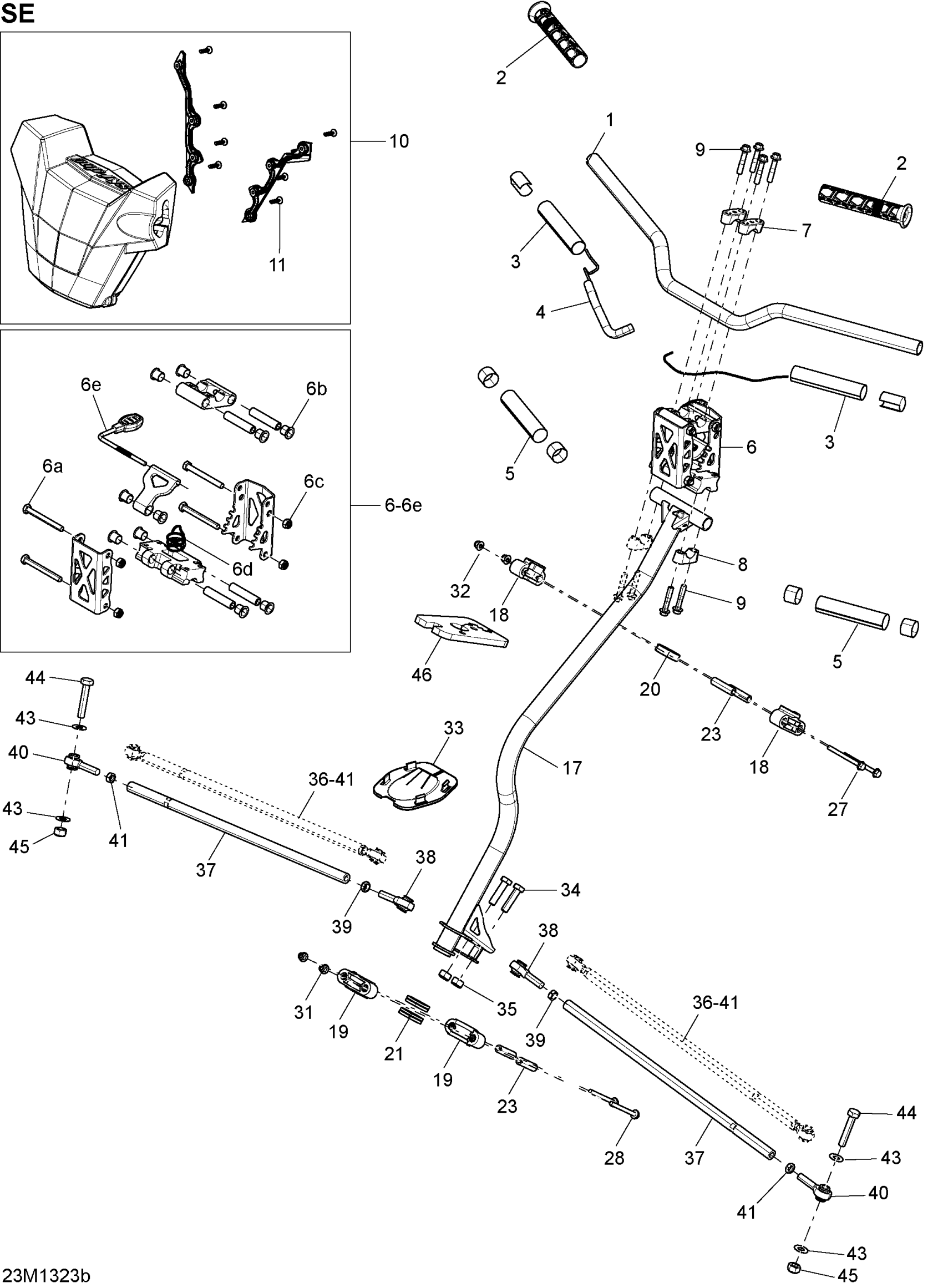

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 Steering SE Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Grip

506152501

$9.88

3

HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152605

Unavailable

4

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

5

Insulant

506153178

$9.93

6

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

6a

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

6b

Cushion

506152520

$12.00

6c

Hex. Flange Elastic Nut M8

233281414

$1.31

6d

Spring | Package SE

506152184

$8.48

6e

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

7

Steering Support | Includes 40 to 40a

506152751

$11.58

8

Steering Support | Includes 40 to 40a

506152751

$11.58

9

Hex. Flange Screw M8 X 40

250000352

$3.16

10

Steering Pad (Adjustable)

506152330

$93.25

10

Steering Pad (Adjustable)

506152601

$93.25

11

Screw PT Type K-50 X 16

250000959

$2.00

17

Steering Column

506152964

$183.55

18

Upper Half-Housing

506152508

$7.18

19

Lower Half-Housing

506152217

$5.40

20

Upper Anti-Vibration Gasket

506152509

$4.39

21

Lower Vibration Ring

506152518

$4.39

23

Housing Bushing

506152297

$9.93

27

Hex. Flange Screw M6 X 70

207667056

$4.15

28

Hex. Flange Screw M6 X 70

207667044

$0.81

31

Elastic Flange Nut M6 X 1.0

233261416

$2.00

32

Elastic Flange Nut M6 X 1.0

233261416

$2.00

33

Plate

506152163

$9.93

34

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

35

Elastic Stop Nut M10

232500416

$1.79

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Tie-Rod Ass'y

506152496

$58.18

38

LH Thread Ball Joint

506152081

$38.78

39

LH Threaded Hex. Jam Nut M10

250100016

$0.70

40

RH Threaded Ball Joint

506152019

$38.78

41

RH Threaded Hex. Jam Nut M10

732610010

$0.70

43

Washer

506152582

$4.28

44

Hex Screw M10 X 1.5 X 55

207005554

$7.09

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

46

Bushing

506152521

$13.19
