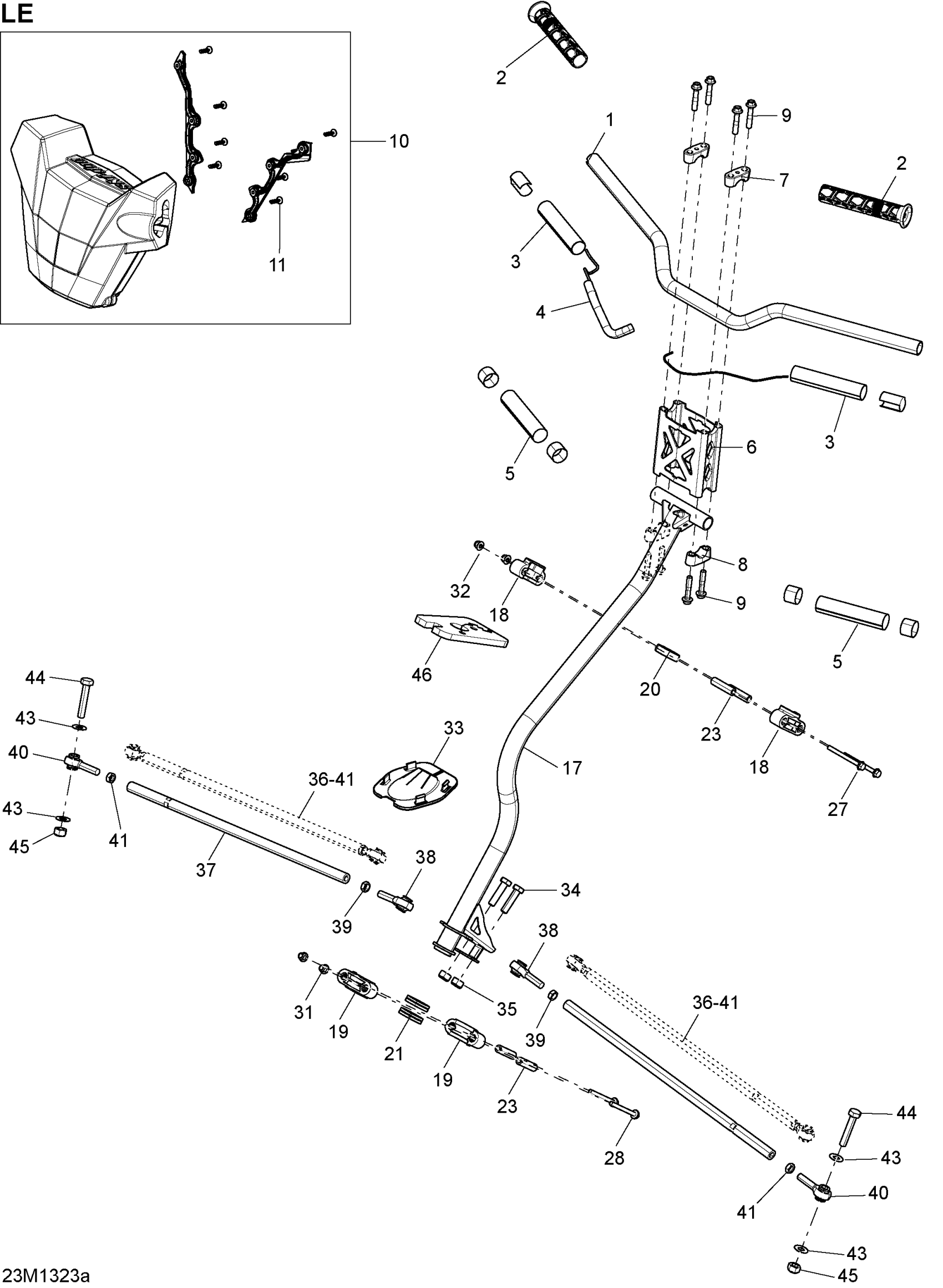

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 07- Steering LE Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Grip

506152501

$12.58

3

HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152605

Unavailable

4

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

5

Insulant

506153178

$12.99

6

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

7

Steering Support | Includes 40 to 40a

506152751

$13.99

8

Steering Support | Includes 40 to 40a

506152751

$13.99

9

Hex. Flange Screw M8 X 40

250000352

$3.38

10

STEERING PAD (ADJUSTABLE) - Call your local BRP dealership This part replaces 506152307.

506152679

Unavailable

11

Screw PT Type K-50 X 16

250000959

$2.11

17

Steering Column

506152964

$199.99

18

Upper Half-Housing

506152508

$9.23

19

Lower Half-Housing

506152217

$7.62

20

Upper Anti-Vibration Gasket

506152509

$4.79

21

Lower Vibration Ring

506152518

$4.79

23

Housing Bushing

506152297

$12.99

27

Hex. Flange Screw M6 X 70

207667056

$4.44

28

Hex. Flange Screw M6 X 70

207667044

$0.85

31

Elastic Flange Nut M6 X 1.0

233261416

$2.11

32

Elastic Flange Nut M6 X 1.0

233261416

$2.11

33

Plate

506152163

$12.99

34

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

35

Elastic Stop Nut M10

232500416

$1.90

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Tie-Rod Ass'y

506152496

$62.49

38

LH Thread Ball Joint

506152081

$41.49

39

LH Threaded Hex. Jam Nut M10

250100016

$0.74

40

RH Threaded Ball Joint

506152019

$41.49

41

RH Threaded Hex. Jam Nut M10

732610010

$0.74

43

Washer

506152582

$4.55

44

Hex Screw M10 X 1.5 X 55

207005554

$7.51

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

46

Bushing

506152521

$15.79
