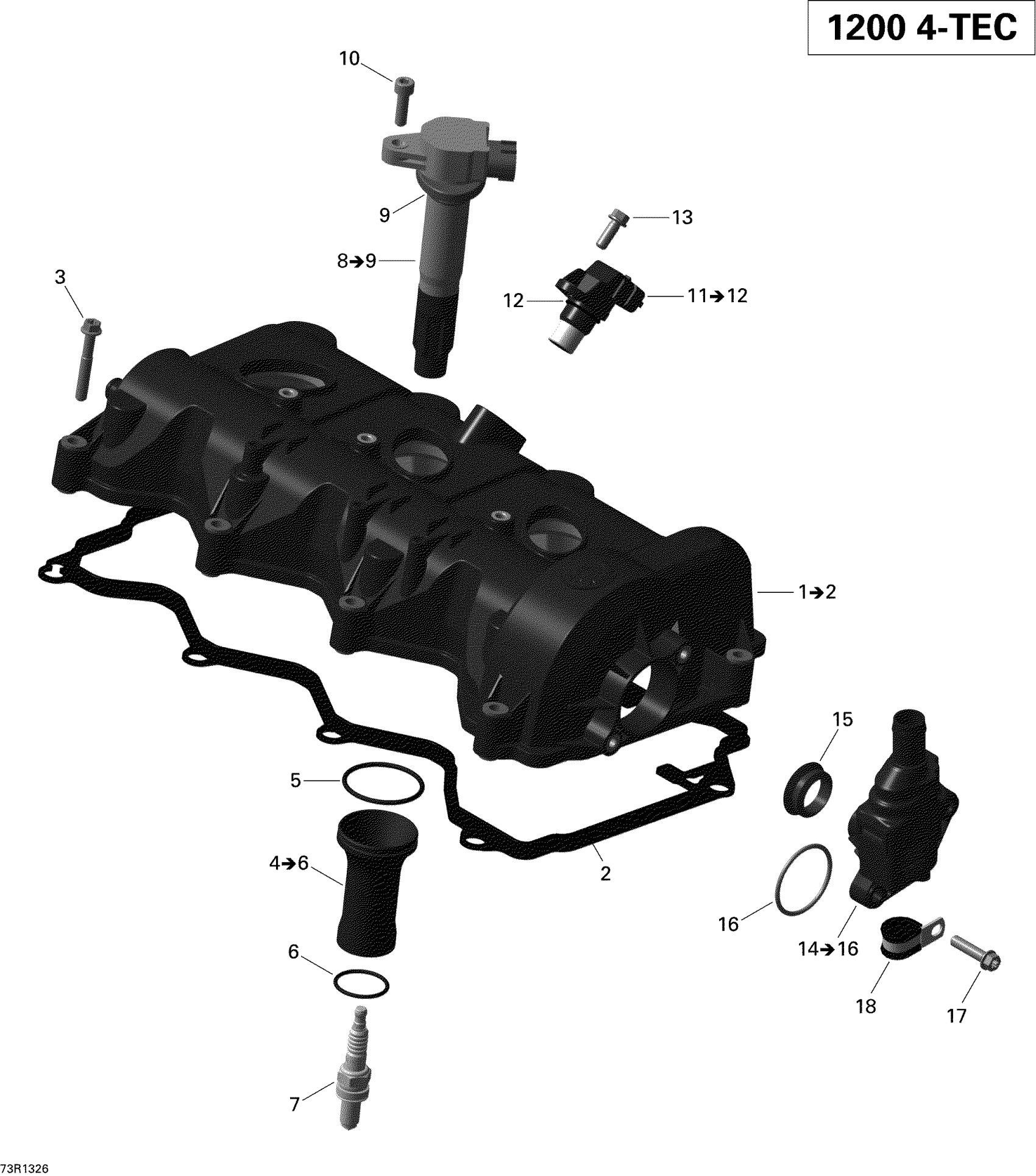

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 Valve Cover Diagram

#

Description
Price

1

Valve Cover Ass'y | Includes 1 to 2

420611856

Unavailable

2

Gasket

420431041

$18.63

3

Torx Flange Screw M6 X 40

420440282

$3.01

4

Spark Plug Pipe Ass'y | Includes 4 to 6

420460585

$5.06

5

O-Ring

420431740

$12.15

6

O-Ring

420631611

$9.03

7

Spark Plug NGK CR8EKB

415129429

$11.32

8

Stick Coil | Includes 8 to 9 This part replaces 420665810.

420665811

$155.94

9

PROTECTION CAP - Call your local BRP dealership

420201435

$15.64

10

Socket Head Screw M6 X 20

205062044

$1.07

11

Camshaft Position Sensor Ass'y

420664046

$70.82

12

O-Ring

420631890

$4.24

13

Torx Flange Screw M6 X 16

420440162

$3.01

14

Vent Valve Ass'y | Includes no. 39-41

420856506

$67.57

15

V-Ring 20S FPM Blow By Valve

420630125

$9.37

16

O-Ring

420950870

$4.41

17

Torx Flange Screw M6 X 25

420440234

$2.91

18

Cable Clamp

420851492

$13.18
