Description

Price

1

Oil Tank Ass'y | Includes 1 to 5

420656386

$139.99

2

Oil Lever Tube Ass'y | Includes 2 to 3

420856661

$23.99

3

Gasket Ring

420431790

$8.57

4

O-Ring

420931634

$17.53

5

O-Ring

420430068

$17.53

6

Torx Flange Screw M6 X 20

420440207

$3.06

7

Air Vent Line

420460021

$17.53

8

Clamp

420951273

$6.39

9

Gasket

420431283

$25.49

10

Oil Radiator

420891914

$121.99

11

Torx Flange Screw M6 X 25

420440234

$3.06

12

Pressure Regulating Piston

420256510

$28.49

13

Spring

420239445

$14.22

14

Gasket Ring

420650465

$13.16

15

Screw Plug M22 X 1.5

420640279

$35.99

16

Oil Pump Rotor, Suction

420256681

$35.99

17

Needle Pin

420232731

$4.01

18

OIL PUMP SHAFT - Call your local BRP dealership

420837911

$19.49

19

Needle Pin

420929075

$2.11

20

Oil Pump Housing

420611861

$41.49

21

Torx Flange Screw M6 X 35

420641258

$3.38

22

Needle Pin

420232431

$4.39

23

Idle Gear, 31 Teeth

420835055

$23.99

24

Oil Pump Gear, 29 Teeth

420834882

$11.60

25

Graduated Spacer This part replaces 420947390.

420947396

$27.49

26

Torx Flange Screw M6 X 16

420440162

$3.17

27

Idle Gear, 22 Teeth

420835051

$23.49

28

Oil Pump Gear, 28 Teeth

420834887

$11.60

29

Oil Pump Cover

420611980

$36.99

30

Oil Pump Rotor

420256831

$75.99

31

Needle Pin

420632221

$4.44

32

Oil Pump Cover

420611950

$56.99

33

O-Ring

420631830

$2.11

34

OIL PUMP SHAFT - Call your local BRP dealership

420837915

Unavailable

35

Oil Pump Rotor, Pressure

420256671

$33.99

36

OIL SIEVE - Call your local BRP dealership

420856658

Unavailable

37

Oil Sieve

420856650

$15.28

38

Oil Sieve

420856655

$15.28

39

Screw Plug M14 X 1.5

420941841

$23.99

40

Gasket Ring

420230500

$1.90

41

O-Ring

420430115

$2.32

42

Oil Filter

420956124

$20.99

43

O-Ring

420230923

$3.17

44

Oil Filter cover

420612135

$11.63

45

Oil Pressure Switch

420256915

$40.99

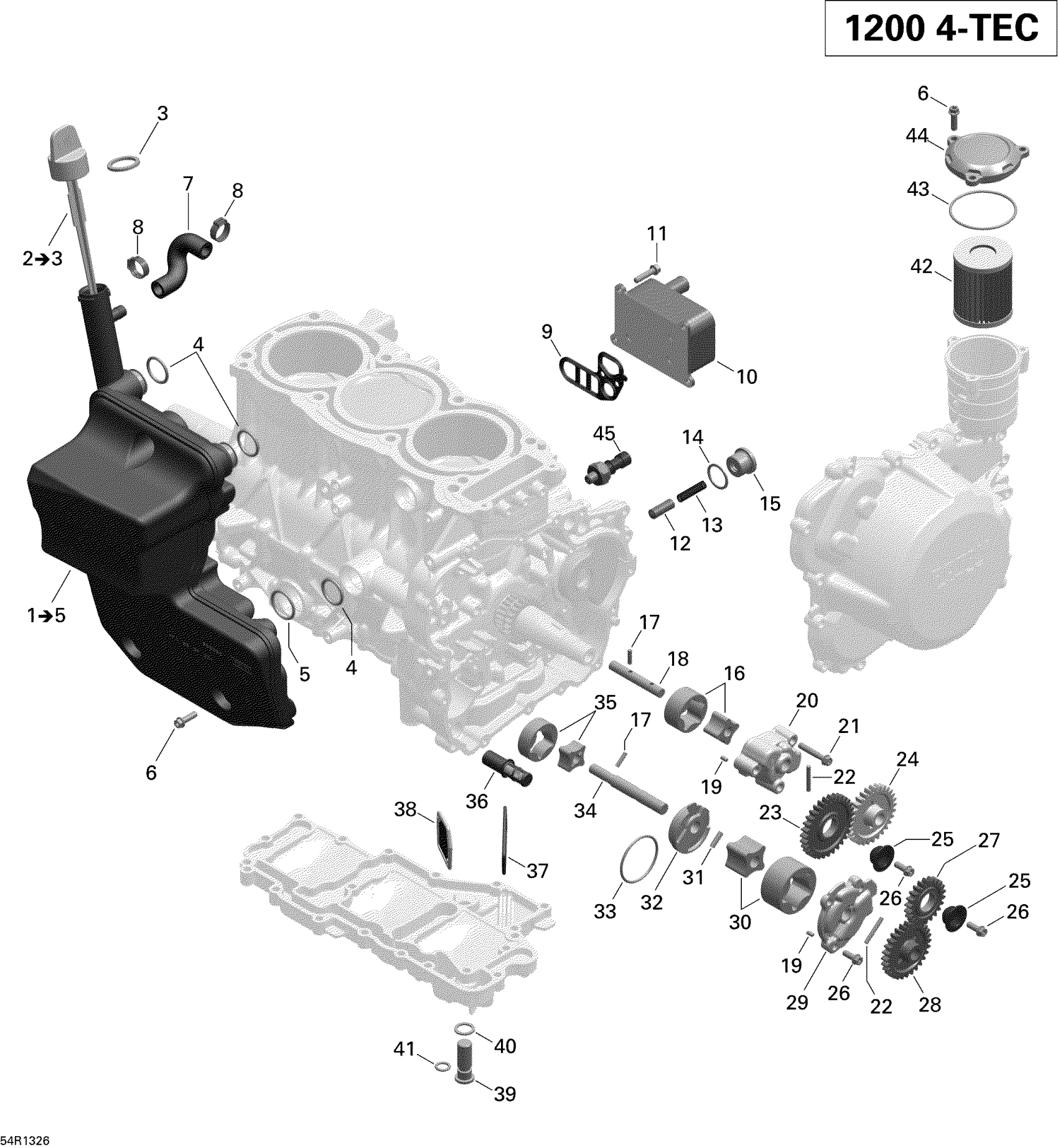

Ski-Doo GRAND TOURING LE & SE 1200 XR, 2013 01- Engine Lubrication Diagram

Oil Tank Ass'y | Includes 1 to 5

Oil Lever Tube Ass'y | Includes 2 to 3

Gasket Ring

O-Ring

O-Ring

Torx Flange Screw M6 X 20

Air Vent Line

Clamp

Gasket

Oil Radiator

Torx Flange Screw M6 X 25

Pressure Regulating Piston

Spring

Gasket Ring

Screw Plug M22 X 1.5

Oil Pump Rotor, Suction

Needle Pin

OIL PUMP SHAFT - Call your local BRP dealership

Needle Pin

Oil Pump Housing

Torx Flange Screw M6 X 35

Needle Pin

Idle Gear, 31 Teeth

Oil Pump Gear, 29 Teeth

Graduated Spacer This part replaces 420947390.

Torx Flange Screw M6 X 16

Idle Gear, 22 Teeth

Oil Pump Gear, 28 Teeth

Oil Pump Cover

Oil Pump Rotor

Needle Pin

Oil Pump Cover

O-Ring

OIL PUMP SHAFT - Call your local BRP dealership

Oil Pump Rotor, Pressure

OIL SIEVE - Call your local BRP dealership

Oil Sieve

Oil Sieve

Screw Plug M14 X 1.5

Gasket Ring

O-Ring

Oil Filter

O-Ring

Oil Filter cover

Oil Pressure Switch
