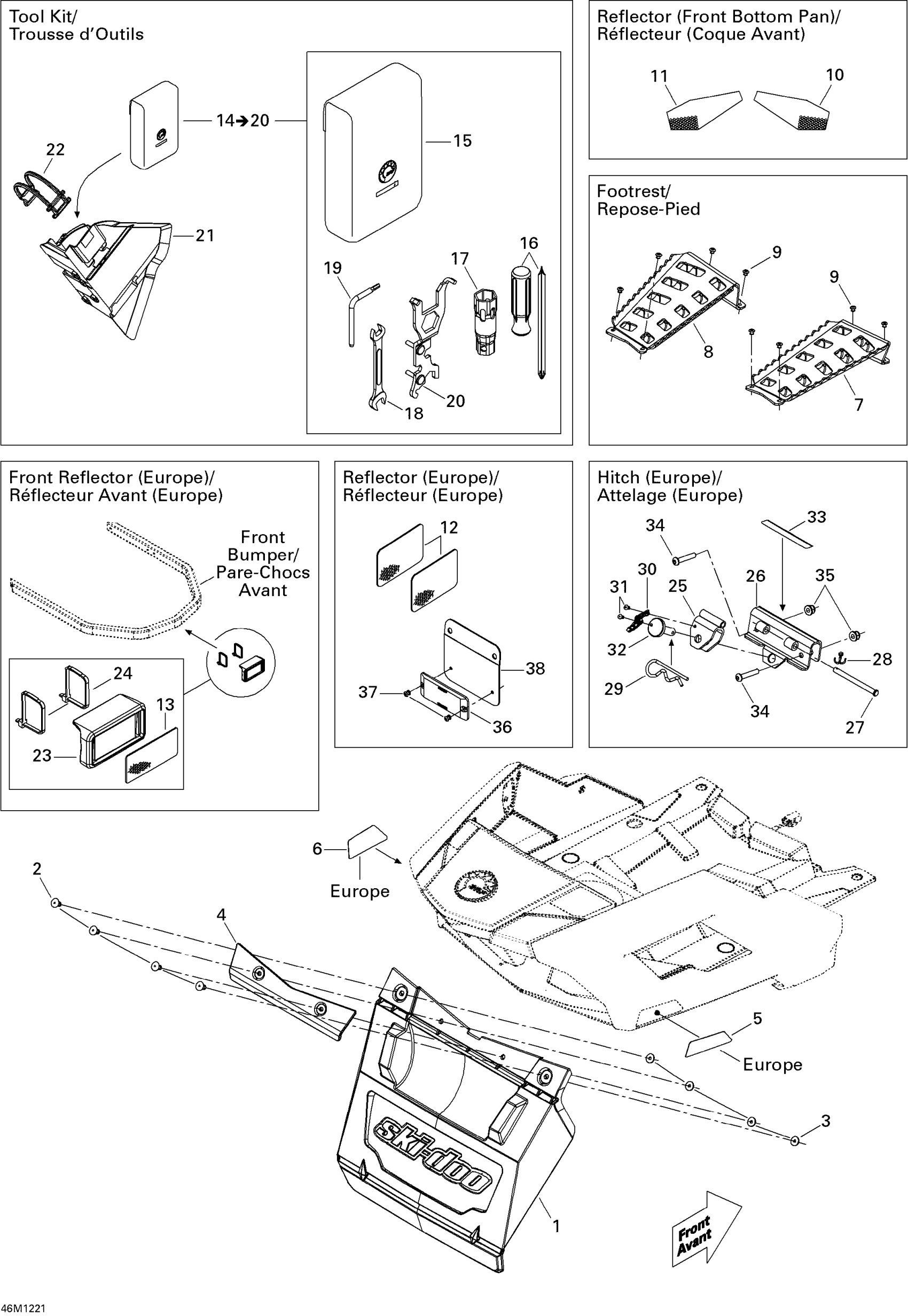

Ski-Doo Grand Touring LE & SE 1200 XR, 2012 Utilities SE Diagram

#

Description
Price

1

Snow Guard

520000659

$86.54

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.18

4

Reinforcement

520000751

$17.13

5

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Europe

520000803

Unavailable

6

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Europe

520000804

Unavailable

7

MAT BLACK RH FOOTREST - Call your local BRP dealership

520000768

Unavailable

8

MAT BLACK LH FOOTREST - Call your local BRP dealership

520000769

Unavailable

9

Rivet 3/16"

293150102

$0.69

10

RH FRONT REFLECTOR - Call your local BRP dealership

520000759

Unavailable

11

LH FRONT REFLECTOR - Call your local BRP dealership

520000760

Unavailable

12

Amber, Reflector

520000271

$18.63

13

White, Reflector

415037900

$18.63

14

Tool Kit | Includes 16 To 22

529000066

$46.99

15

Not Available As Spare Part - Friction Washer

Unavailable

16

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

19

Spacing Tool

520001142

$10.99

20

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

21

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

22

Latch

520000528

$6.40

23

Deep Black, Reflector Support

520000871

$5.13

24

Tie Rap 371 mm

293750018

$0.52

25

Support

511000554

$17.88

26

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

27

Lock Pin

511001451

$8.31

28

Cotter Pin

371800200

$0.49

29

Hair Pin

114045200

$10.37

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Pop Rivet 5/32” | Model Europe

390404300

$0.30

32

Pin

511000555

$17.88

33

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

34

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

35

Hex. Flange Elastic Nut M8

233281414

$1.31

36

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

37

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

38

REFLECTOR SUPPORT - Call your local BRP dealership | Model-Europe

520000933

Unavailable
