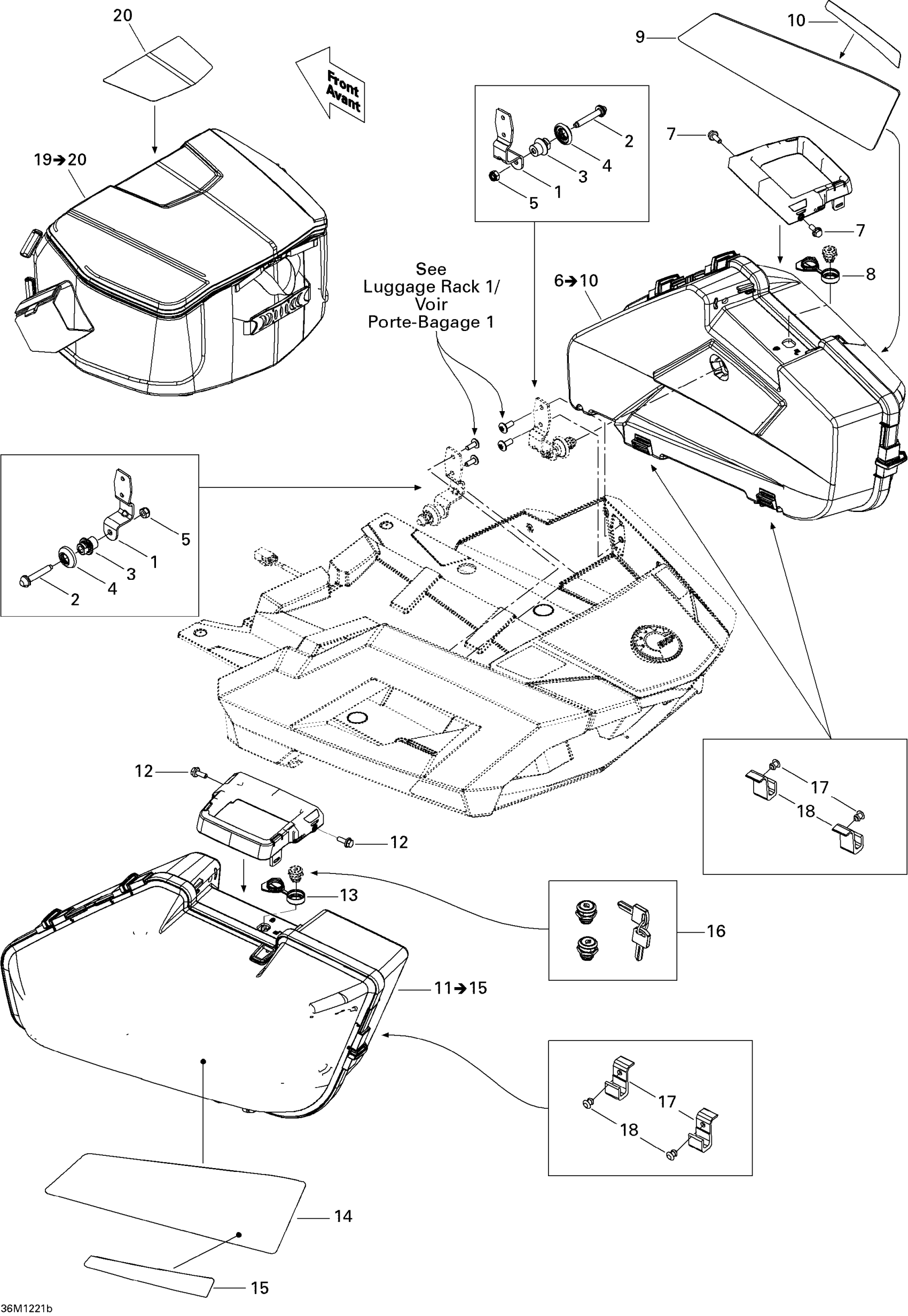

Ski-Doo Grand Touring LE & SE 1200 XR, 2012 09- Luggage Rack 2_SE North America Diagram

#

Description
Price

1

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

511000580

Unavailable

2

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

3

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

4

Rubber Bumper | Package SE

511000358

$56.99

5

Hex. Elastic Nut M8 Brass

232581200

$2.22

6

RH SUITCASE ASS'Y - Call your local BRP dealership | Includes 6 to 10

511000689

Unavailable

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

Black Sealing Cap | Package SE

511000639

$16.99

9

RH BAG DECAL - Call your local BRP dealership

516003766

Unavailable

10

Red RH Rear Reflector | Package SE

520000757

$16.99

11

LH SUITCASE ASS'Y - Call your local BRP dealership | Includes 11 to 15

511000690

Unavailable

12

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

13

Black Sealing Cap | Package SE

511000639

$16.99

14

LH BAG DECAL - Call your local BRP dealership

516003765

Unavailable

15

Red LH Rear Reflector | Package SE

520000756

$15.99

16

LOCK - Call your local BRP dealership | Package SE

511000599

Unavailable

17

Support Plate | Package SE

518325618

$19.99

18

Ornit Rivet 6,5 X 14.5

293150266

$2.40

19

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

860200174

Unavailable

20

BAG DECAL - Call your local BRP dealership

516003817

Unavailable
