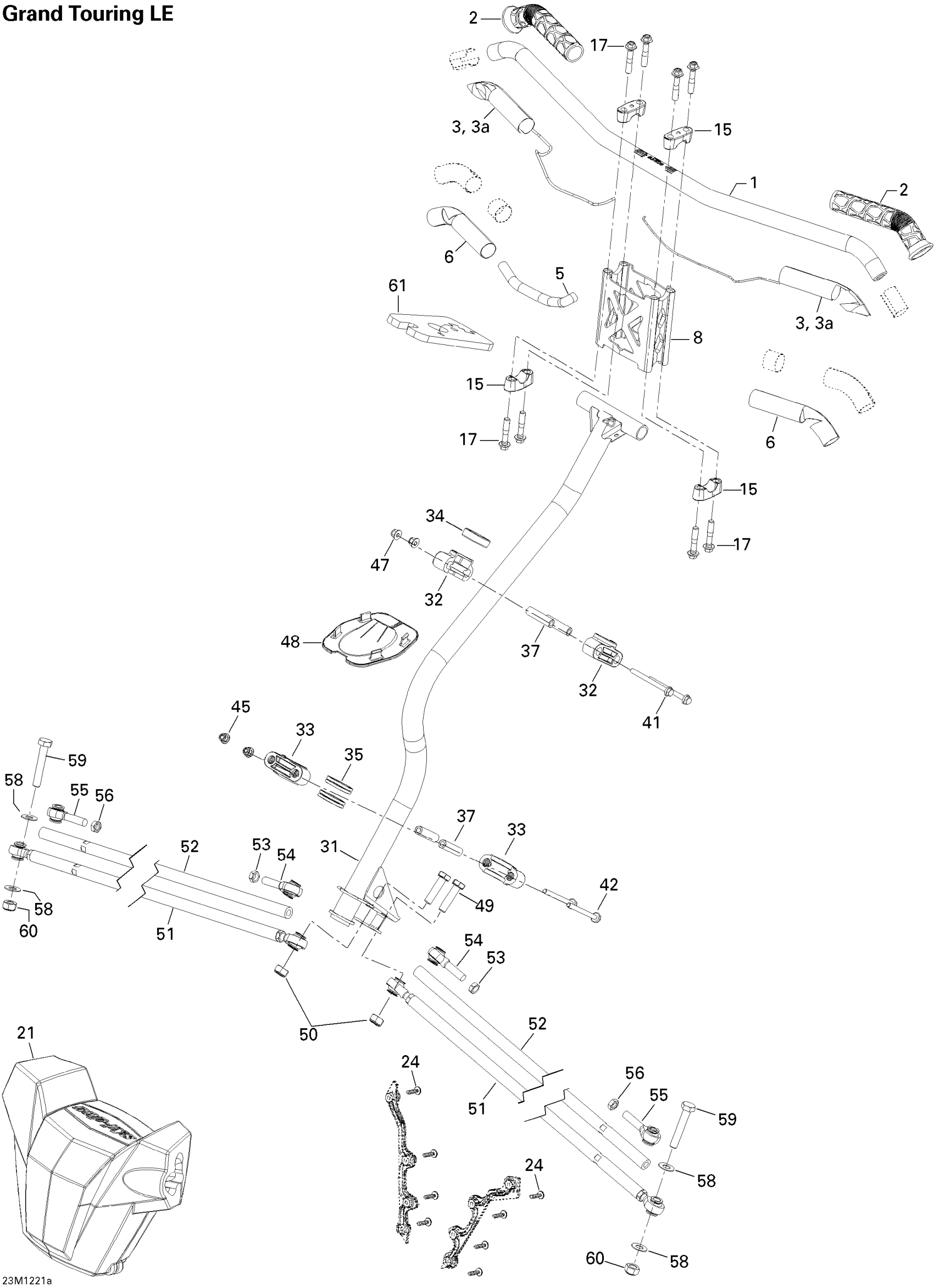

Ski-Doo Grand Touring LE & SE 1200 XR, 2012 07- Steering Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Handle Grip

506152424

$15.29

3

Heating Element

506152422

$99.99

5

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

6

Insulant

506153178

$12.99

7

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

7a

Not Available As Spare Part - Friction Washer

Unavailable

7b

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

7c

Cushion

506152520

$15.72

7d

Not Available As Spare Part - Friction Washer

Unavailable

7e

Hex. Flange Elastic Nut M8

233281414

$1.47

7f

Not Available As Spare Part - Friction Washer

Unavailable

7g

Not Available As Spare Part - Friction Washer

Unavailable

7h

Not Available As Spare Part - Friction Washer

Unavailable

7k

Spring | Package SE

506152184

$10.49

7m

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

8

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

15

Steering Support | Includes 40 to 40a

506152751

$13.99

17

Hex. Flange Screw M8 X 40

250000352

$3.38

20

STEERING PAD (ADJUSTABLE) - Call your local BRP dealership This part replaces 506152307.

506152679

Unavailable

21

Steering Pad (Adjustable)

506152330

$104.99

24

Screw PT Type K-50 X 16

250000959

$2.11

31

Steering Column

506152964

$199.99

32

Upper Half-Housing

506152508

$9.23

33

Lower Half-Housing

506152217

$7.62

34

Upper Anti-Vibration Gasket

506152509

$4.79

35

Lower Vibration Ring

506152518

$4.79

37

Housing Bushing

506152297

$12.99

41

Hex. Flange Screw M6 X 70

207667056

$4.44

42

Hex. Flange Screw M6 X 70

207667044

$0.85

45

Elastic Flange Nut M6 X 1.0

233261416

$2.11

47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

48

Plate

506152163

$12.99

49

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

50

Elastic Stop Nut M10

232500416

$1.90

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Tie-Rod Ass'y

506152496

$62.49

53

LH Thread Ball Joint

506152081

$41.49

54

LH Threaded Hex. Jam Nut M10

250100016

$0.74

55

RH Threaded Ball Joint

506152019

$41.49

56

RH Threaded Hex. Jam Nut M10

732610010

$0.74

58

Washer

506152194

$4.55

59

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

60

Elastic Stop Nut M10

232500416

$1.90

61

Bushing

506152521

$15.79
