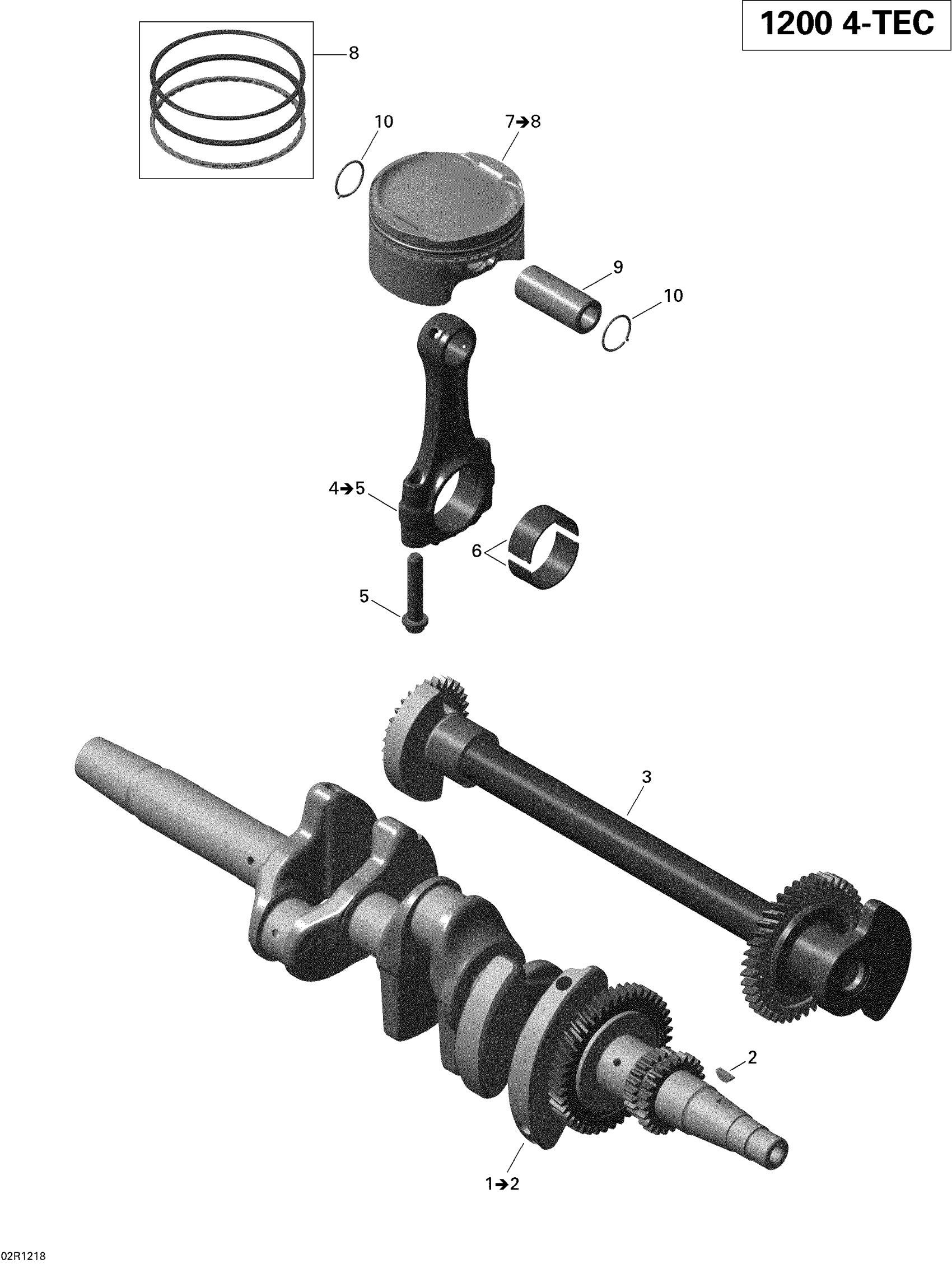

Ski-Doo Grand Touring LE & SE 1200 XR, 2012 01- Crankshaft, Pistons And Balance Shaft Diagram

#

Description

Price

1

CRANKSHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420819796

$949.99

2

Woodruff Key 4 X 5

420246570

$3.38

3

Balance Shaft This part replaces 420820054.

420820053

$539.99

4

CONNECTING ROD ASS'Y - Call your local BRP dealership | Includes 4 to 5

420917645

$239.99

5

Connecting Rod Screw M9 X 1

420641475

$17.53

6

Plain Bearing

420933842

$19.49

7

Piston Ass'y, 90.958 mm | Includes 7 to 8

420891890

$180.99

8

Piston Ring Set | 400HO

420296774

$78.99

9

Piston Pin

420216274

$28.49

10

Piston Circlip

420245436

$4.89
