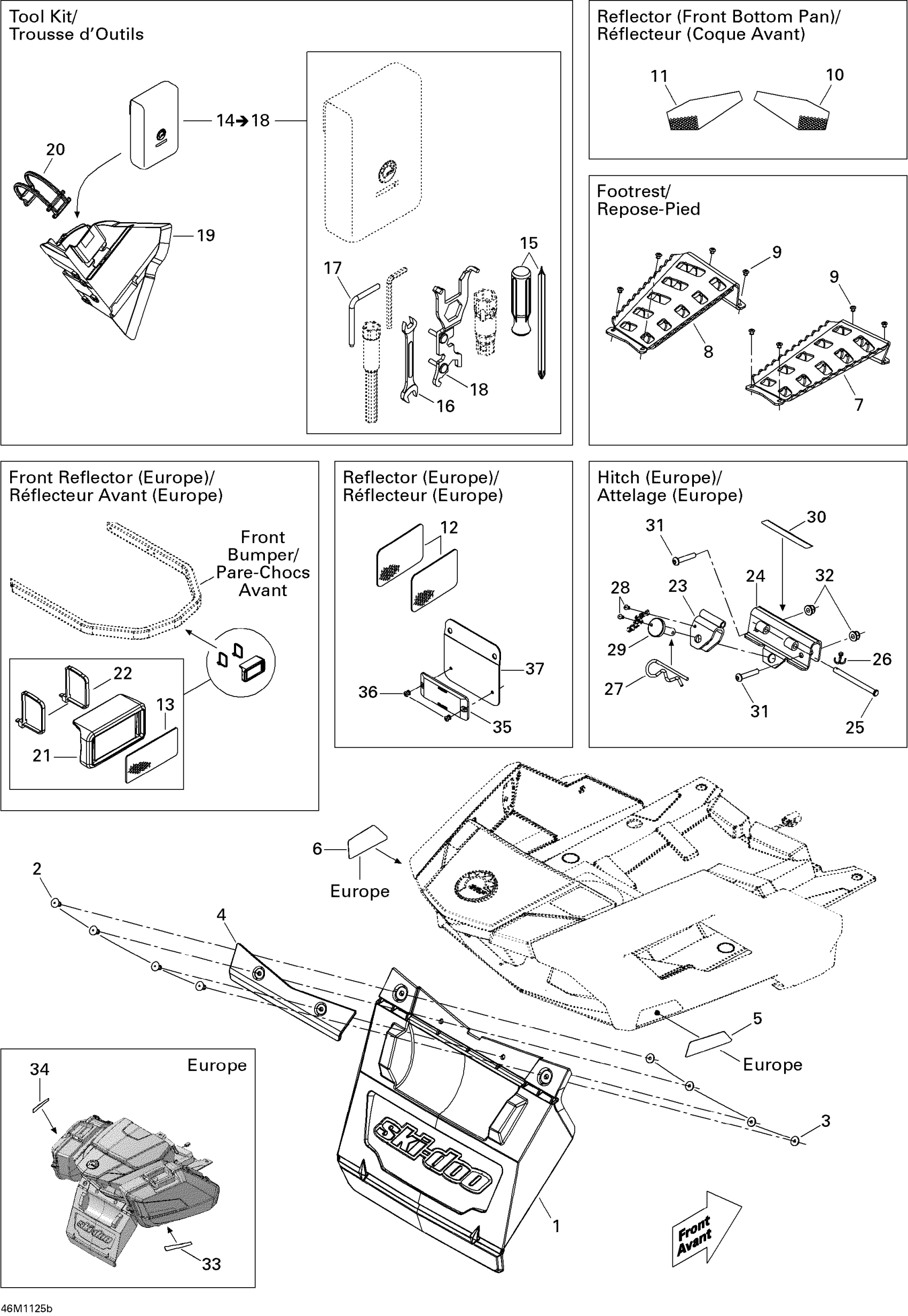

Ski-Doo Grand Touring LE & SE 1200 XR, 2011 09- Utilities SE Diagram

#

Description
Price

1

Snow Guard

520000659

$84.99

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.19

4

Reinforcement

520000751

$20.99

5

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Europe

520000803

Unavailable

6

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Europe

520000804

Unavailable

7

MAT BLACK RH FOOTREST - Call your local BRP dealership

520000768

Unavailable

8

MAT BLACK LH FOOTREST - Call your local BRP dealership

520000769

Unavailable

9

Rivet 3/16"

293150102

$0.70

10

RH FRONT REFLECTOR - Call your local BRP dealership

520000759

Unavailable

11

LH FRONT REFLECTOR - Call your local BRP dealership

520000760

Unavailable

12

Amber, Reflector

520000271

$19.99

13

White, Reflector

415037900

$22.99

14

Tool Kit | Includes 16 To 22

529000066

$45.99

15

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

16

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

17

SPACING TOOL - Call your local BRP dealership

520001028

Unavailable

18

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

19

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

20

Latch

520000528

$7.69

21

Deep Black, Reflector Support

520000871

$5.79

22

Tie Rap 371 mm

293750018

$0.56

23

Support

511000554

$19.49

24

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

25

Lock Pin

511001451

$9.49

26

Cotter Pin

371800200

$0.53

27

Hair Pin

114045200

$11.11

28

Pop Rivet 5/32” | Model Europe

390404300

$0.35

29

Pin

511000555

$19.49

30

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

31

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000831

Unavailable

34

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000832

Unavailable

35

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

36

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

37

REFLECTOR SUPPORT - Call your local BRP dealership | Model-Europe

520000933

Unavailable
