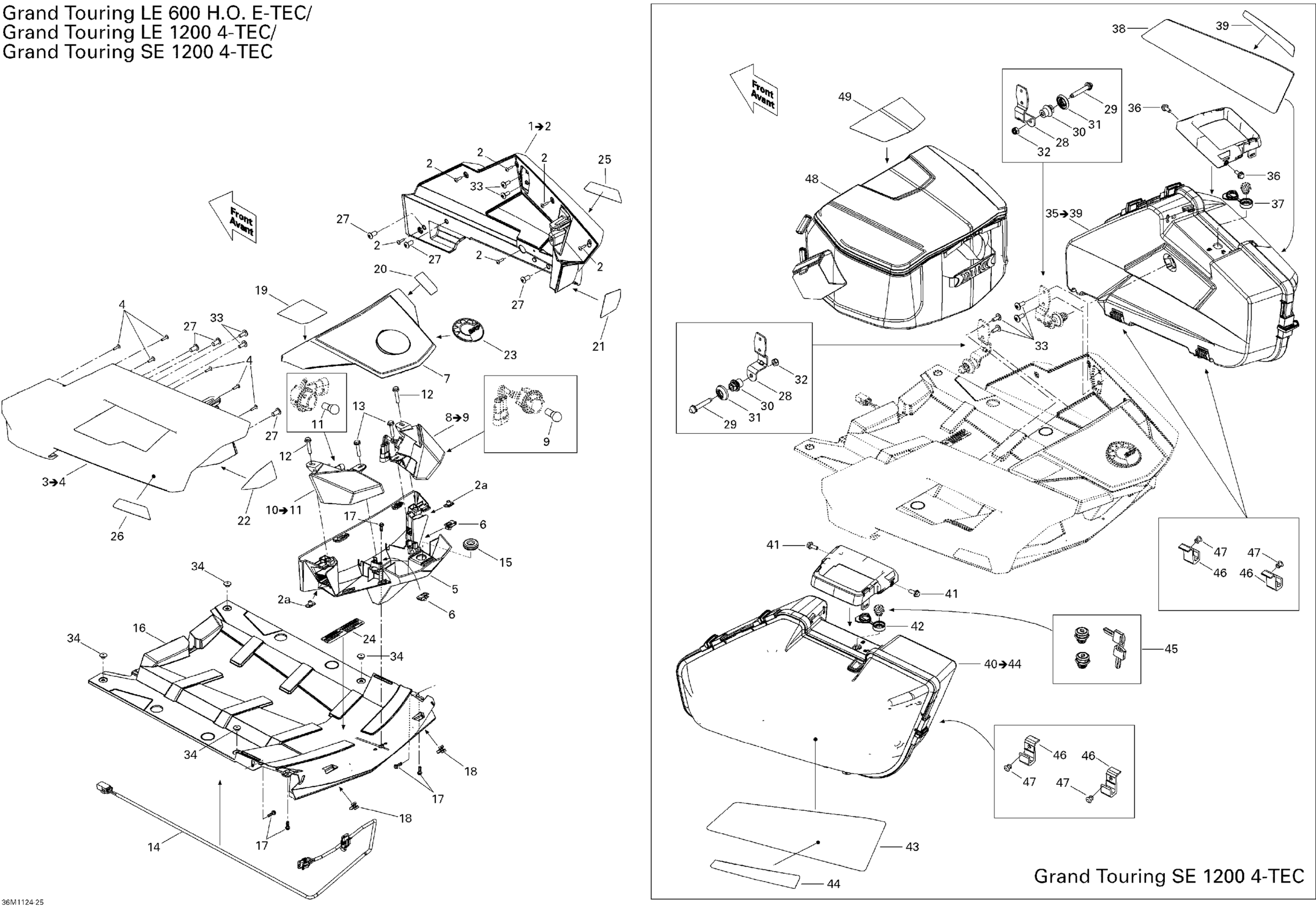

Ski-Doo Grand Touring LE & SE 1200 XR, 2011 Luggage Rack Diagram

#

Description
Price

1

RH Arm Ass'y

511000631

$83.55

2

Torx-Truss Pt K40 X 16

250000759

$2.00

2a

Nut Welded, M6

293100003

$7.25

3

LH Arm Ass'y

511000632

Unavailable

4

Torx-Truss Pt K40 X 16

250000759

$2.00

5

Rack Ass'y

511000530

$69.37

6

Panel Nut M6 X 1.0

250100198

$1.99

7

Cover

511000545

$79.99

8

RH Tail Light Ass'y

515176849

$60.42

9

Bulb

520000758

$8.60

10

LH Tail Light Ass'y

515176850

$60.42

11

Bulb

520000758

$8.60

12

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

13

Hex. Flange Screw M6 X 25

207662554

$1.43

14

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

15

Grommet

517303756

$3.61

16

Radiator Cover

511000861

$52.96

17

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

18

Edge Clip

517302785

$0.81

19

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

20

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

21

Red RH Rear Reflector

520000731

$13.36

22

Red LH Rear Reflector

520000732

$12.99

23

BRP Logo 68mm

516008739

$14.78

24

WARNING DECAL, SECURITY - Call your local BRP dealership

516004587

Unavailable

25

Red RH Rear Reflector

520000729

$13.36

26

RED LH REAR REFLECTOR - Call your local BRP dealership

520000730

Unavailable

27

Torx Screw M8 X 16

250000751

$5.33

28

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

511000580

Unavailable

29

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

30

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

31

Rubber Bumper | Package SE

511000358

Unavailable

32

Hex. Elastic Nut M8 Brass

232581200

$1.48

33

Torx Truss Screw M6 X 16

250000721

$1.60

34

Pop Rivet 3/16"

293150103

$0.52

35

RH SUITCASE ASS'Y - Call your local BRP dealership | Includes 6 to 10

511000689

Unavailable

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

37

Black Sealing Cap | Package SE

511000639

$12.67

38

RH BAG DECAL - Call your local BRP dealership

516003766

Unavailable

39

Red RH Rear Reflector | Package SE

520000757

$12.99

40

LH SUITCASE ASS'Y - Call your local BRP dealership | Includes 11 to 15

511000690

Unavailable

41

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

42

Black Sealing Cap | Package SE

511000639

$12.67

43

LH BAG DECAL - Call your local BRP dealership

516003765

Unavailable

44

Red LH Rear Reflector | Package SE

520000756

$13.36

45

LOCK - Call your local BRP dealership | Package SE

511000599

Unavailable

46

Support Plate | Package SE

518325618

$17.88

47

Ornit Rivet 6,5 X 14.5

293150266

$1.88

48

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

860200174

Unavailable

49

BAG DECAL - Call your local BRP dealership

516003817

Unavailable
