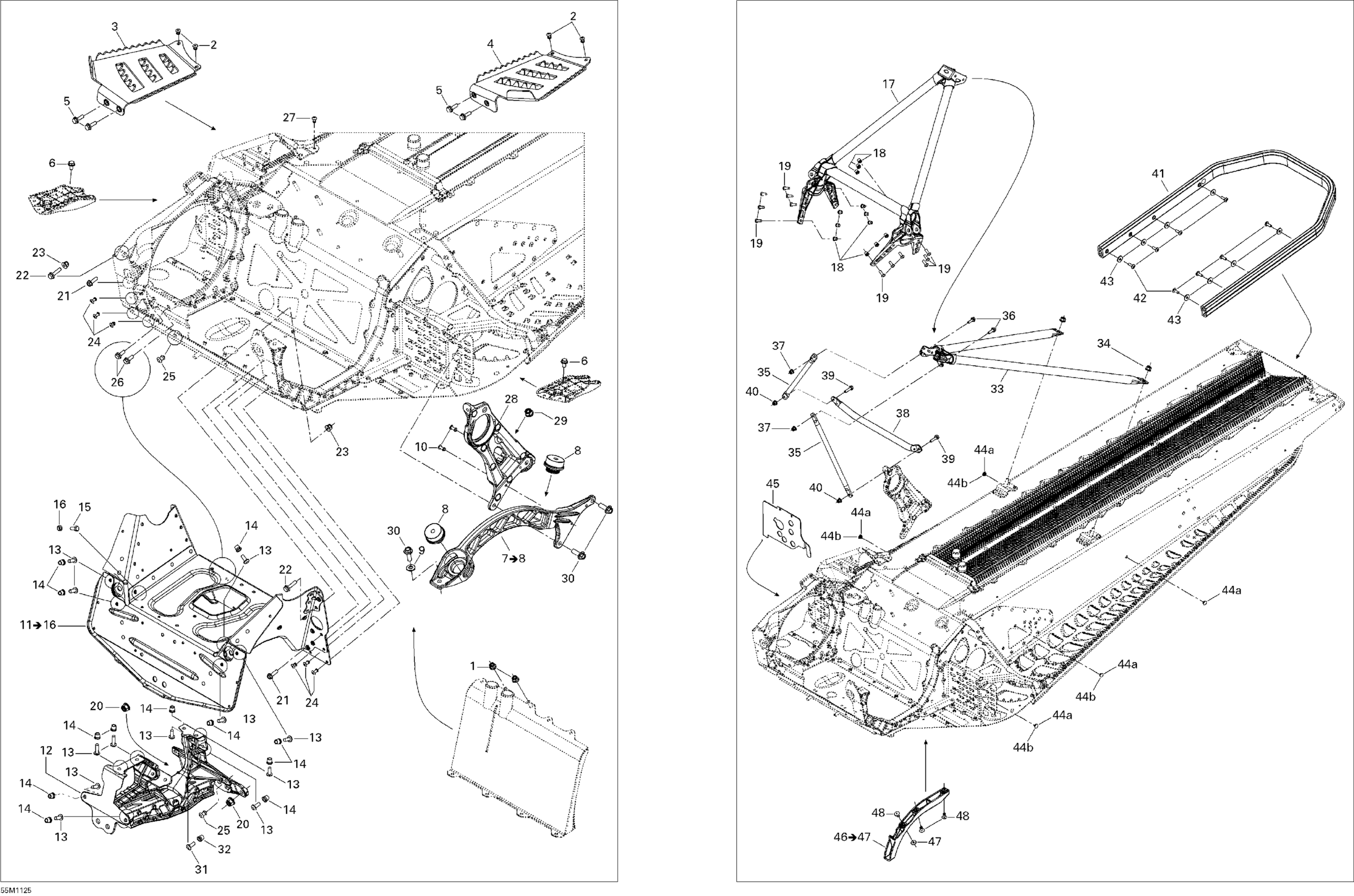

Ski-Doo Grand Touring LE & SE 1200 XR, 2011 09- Frame and Components LE Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2

Pop Rivet 3/16"

390402200

$0.35

3

RH FOOTREST - Call your local BRP dealership | Grand Touring LE

518326193

Unavailable

4

LH FOOTREST - Call your local BRP dealership | Grand Touring LE

518326194

Unavailable

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

7

Brace Ass'y | Includes 200 to 200a

518327392

$199.99

8

Vibration Damper

512061516

$61.99

9

Conical Spring Washer M8

234281474

$1.48

10

Pop Rivet 3/16”

390407200

$0.70

11

CROSS MEMBER S MODULE - Call your local BRP dealership

518328325

Unavailable

12

Front Suspension Support

518327487

$289.99

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Hex. Screw M6 X 14

207161444

$0.58

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Front Member

518326970

$299.99

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Hex. Flange Screw M6 X 16

210261650

$1.67

22

Hex. Flange Screw M6 X 25

207662544

$0.64

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

Monobolt Rivet, 4.8 mm

293150191

$0.99

25

Monobolt Rivet 6.4

293150182

$3.09

26

Hex. Flange Screw M6 X 16

207661644

$0.74

27

Avex Rivet

390909100

$0.30

28

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

31

Hex. Flange Screw M6 X 20

207662044

$2.00

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Rear Member

518326559

$264.99

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Upper Lateral Column Support

518325114

$22.49

36

Hex. Flange Screw M6 X 20

207662044

$2.00

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Center Column Support

518326657

$19.99

39

Hex. Flange Screw M6 X 25

207662544

$0.64

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

REAR BUMPER - Call your local BRP dealership | Grand Touring LE

518325470

Unavailable

42

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

43

Flat Washer

224061201

$1.37

44a

Full Moon Dart 8 mm

293730041

$2.21

44b

Not Available As Spare Parts

XXX

Unavailable

45

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

46

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

47

Washer

517124300

$0.19

48

Pop Rivet 3/16”

293150108

$1.19
