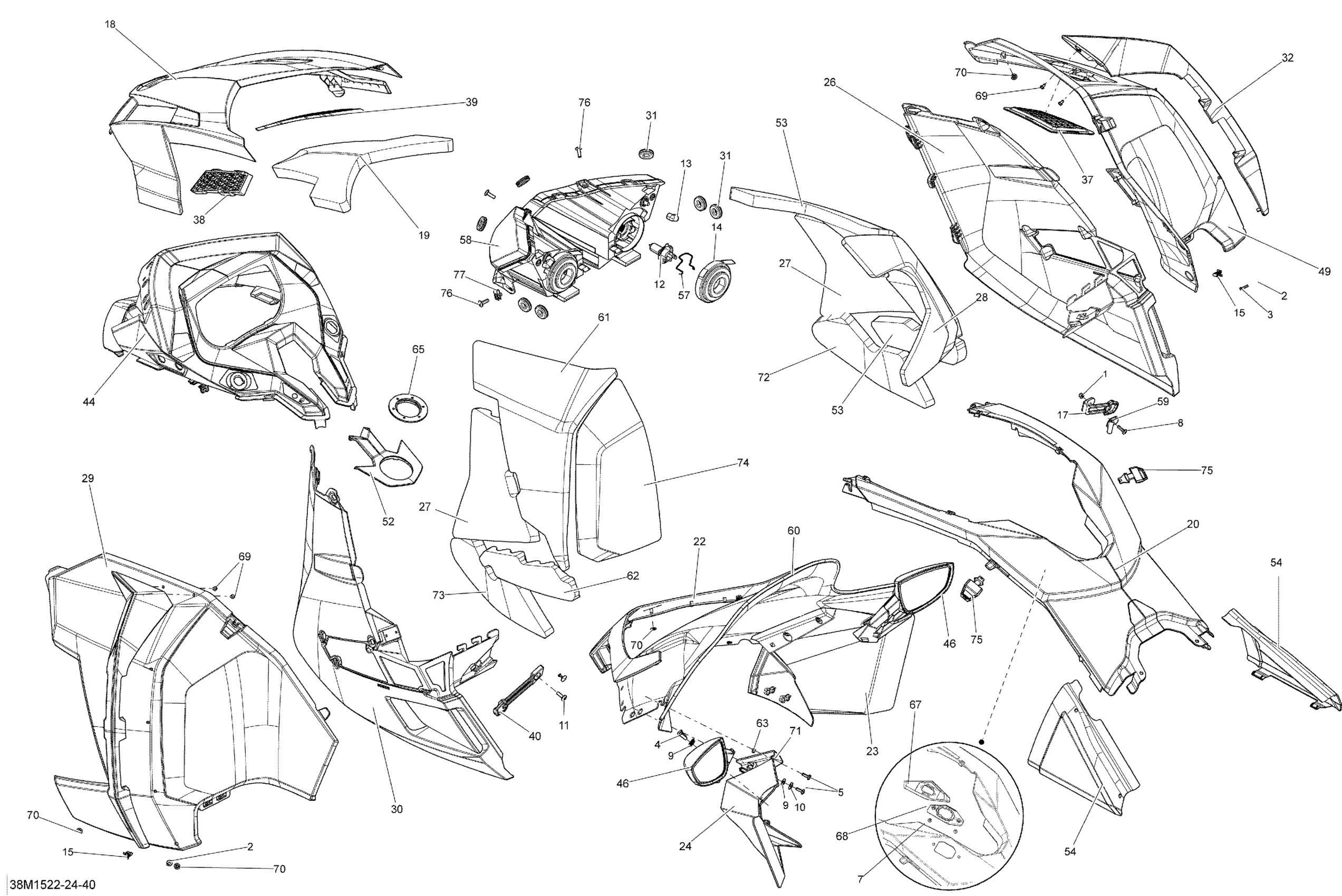

Ski-Doo Grand Touring LE 900ACE XR137, 2015 09- Hood _38M1540 Diagram

#

Description
Price

1

Flange Elastic Nut M5

233251434

$2.00

2

Flat Washer 4 mm, Stainless

234042600

$1.15

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Torx Truss Screw M6 X 16

250000721

$1.69

5

Torx Screw K50 X 16

250000720

$1.69

7

Torx-Truss Pt K40 X 16

250000759

$2.11

8

Torx Screw M5 X 20

250000792

$2.11

9

Rubber Washer 5 mm

250200024

$2.19

10

Washer M5

250200025

$0.74

11

Torx Truss Screw M6 X 20

250000705

$2.11

12

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

13

Cap

515176498

$12.99

14

Rubber Cap Protector

219800280

$19.49

15

Edge Clip

517302785

$0.88

17

RH Panel Latch

517303612

$9.99

18

Black Hood | Model-Black-Black

517303739

$244.99

19

Hood Foam

517304893

$28.99

20

CONSOLE B-160 - Call your local BRP dealership

517305337

Unavailable

22

Windshield Support Kit

860200230

$34.99

23

RH Console Air Deflector

517303745

$42.99

24

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303746

Unavailable

26

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

27

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

27

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304899

Unavailable

28

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

29

Black LH Pannel | Model-Black-Black

517303753

$229.99

30

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

31

Grommet

517303756

$4.09

32

BLACK RH SIDE WIND DEFLECTOR - Call your local BRP dealership | Model-Black-Black

517304197

Unavailable

32

BLACK LH SIDE WIND DEFLECTOR - Call your local BRP dealership

517304196

Unavailable

37

PANEL GRILL - Call your local BRP dealership

517303801

Unavailable

38

LH Hood Grille

517303804

$31.99

39

RH Hood Grille

517303805

$31.99

40

LH Panel Latch

517303808

$11.49

44

INDICATOR SUPPORT - Call your local BRP dealership

517303971

Unavailable

46

RH Mirror Ass'y

517305100

$52.99

46

LH Mirror Ass'y

517305101

$52.99

49

Black RH Pannel

517304006

$349.99

52

Deep Black, Cap Console

517304027

$15.49

53

RH UPPER PANEL FOAM - Call your local BRP dealership

517304908

Unavailable

54

DEEP BLACK LH FUEL TANK MOULDING - Call your local BRP dealership | Model-Black-Black

517304123

Unavailable

54

DEEP BLACK RH FUEL TANK MOULDING - Call your local BRP dealership | Model-Black-Black

517304124

Unavailable

57

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

58

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

59

Latch Support

517304221

$9.19

60

EXTRA HIGHT WINDSHIELD (620) - Call your local BRP dealership

517304268

Unavailable

61

LH UPPER PANEL FOAM - Call your local BRP dealership

517304902

$28.99

62

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304897

Unavailable

63

Rubber Washer 5 mm

517304281

$14.24

65

Console Nut

517304518

$15.29

67

Plate

517305338

$16.49

68

Plate

517305339

$16.49

69

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

70

Push Nut

732610072

$2.19

71

Flat Washer

517225900

$0.18

72

RH LOWER PANEL FOAM - Call your local BRP dealership

517304905

Unavailable

73

LH LOWER PANEL FOAM - Call your local BRP dealership

517304901

Unavailable

74

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

75

Panel Latch

517305000

$13.49

76

Torx Truss Screw M6 X 20

250000705

$2.11

77

Panel Nut M6 X 1.0

250100198

$2.11
