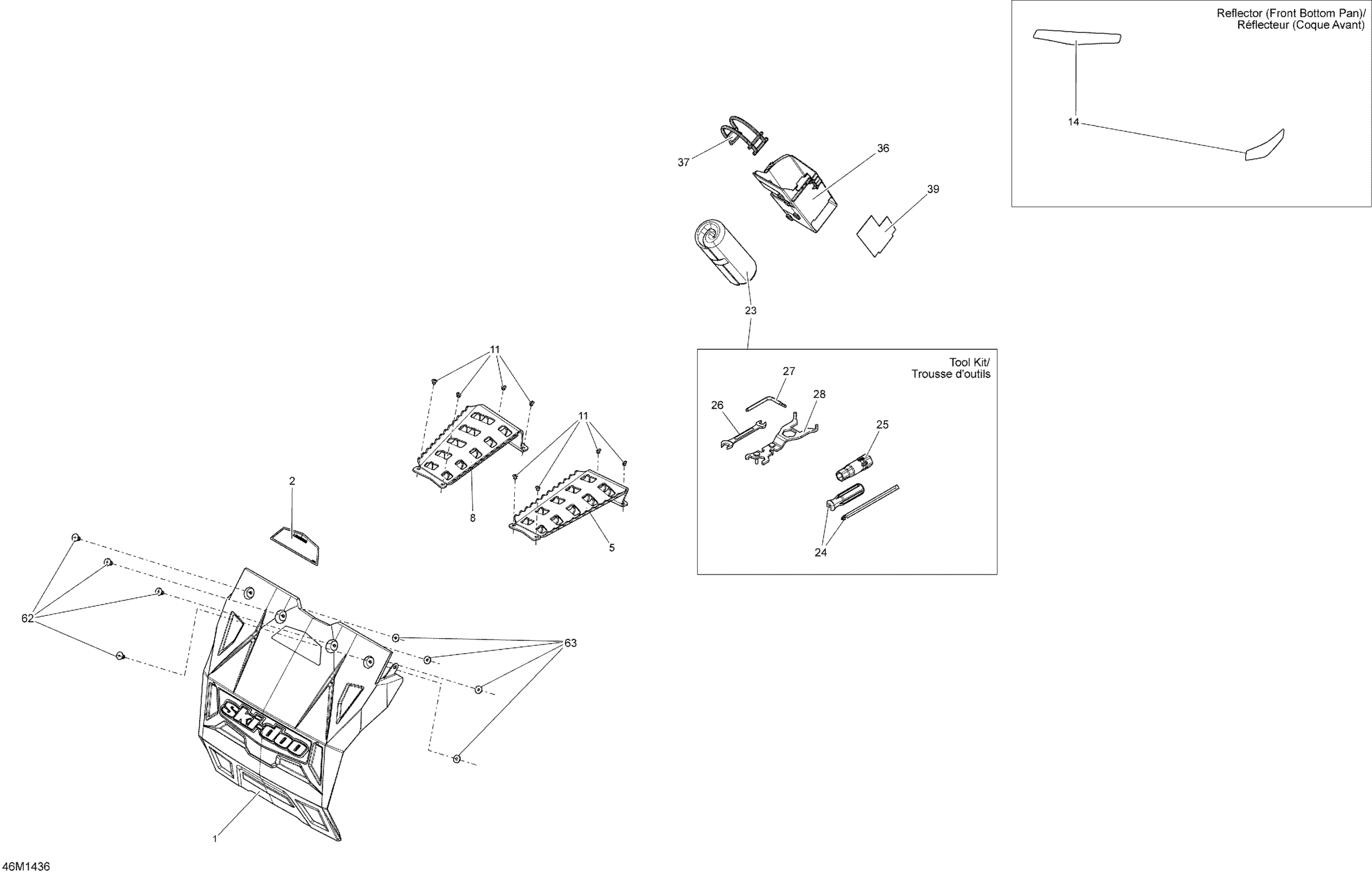

Ski-Doo GRAND TOURING LE 900 ACE XR, 2014 09- Utilities Diagram

#

Description
Price

1

Snow Guard, Black W Alloy Grey Insert

520001342

$110.99

2

Warning Decal, Track

516005175

Unavailable

5

MAT BLACK RH FOOTREST - Call your local BRP dealership

520000768

Unavailable

8

MAT BLACK LH FOOTREST - Call your local BRP dealership

520000769

Unavailable

11

Rivet 3/16"

293150102

$0.70

14

YELLOW FRONT REFLECTOR XR - Call your local BRP dealership

520001234

Unavailable

23

Tool Kit | Includes 16 To 22

529000066

$45.99

24

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

25

Set Key, 16/21 mm

529000046

$14.49

26

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

27

Spacing Tool

520001142

$10.52

28

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

36

Tool Kit Rack

520000894

$14.99

37

Latch

520000528

$7.69

39

Reflective Sheet

514054827

$7.79

62

Pop Rivet 3/16”

293150108

$1.19

63

Washer

517124300

$0.19
