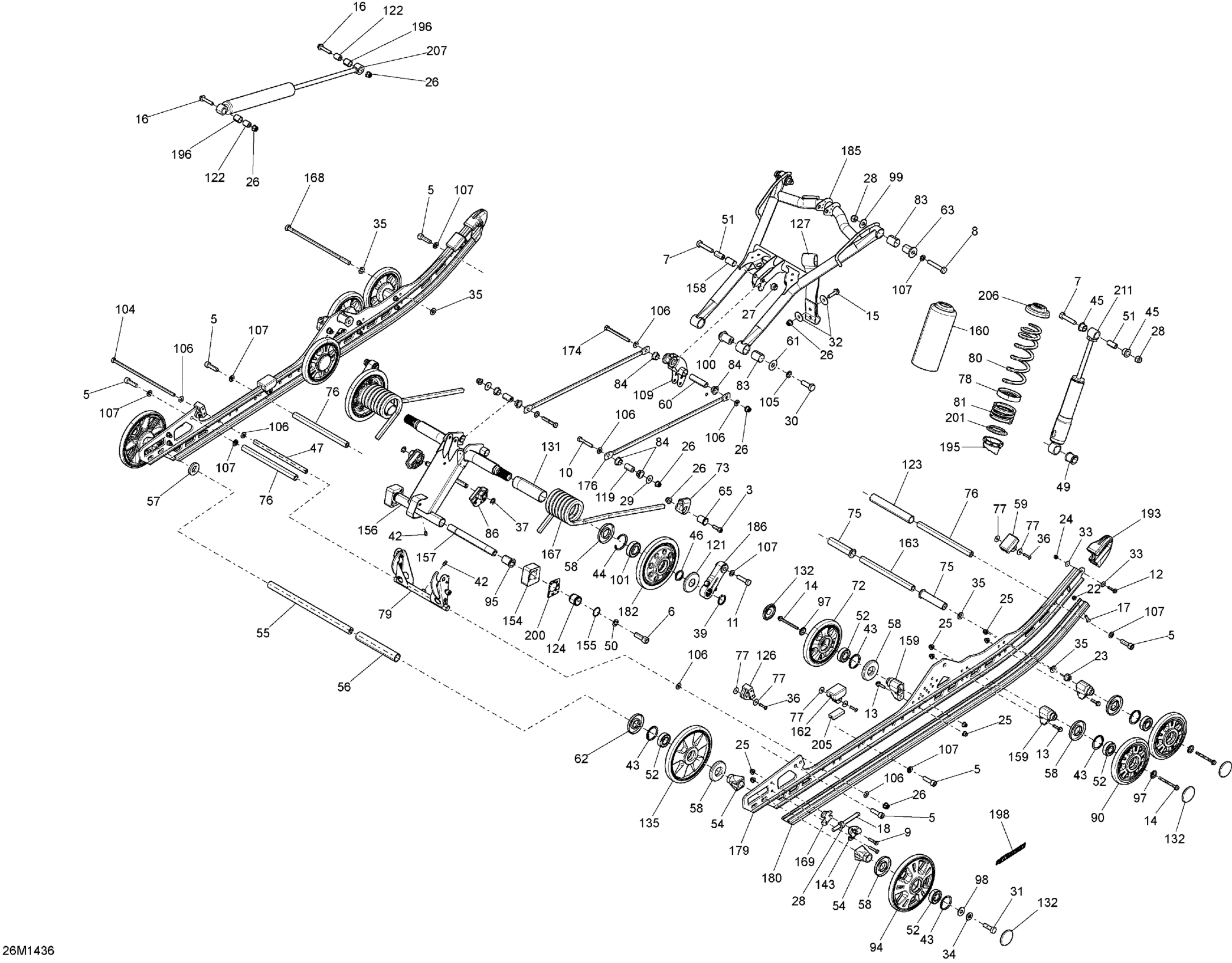

Ski-Doo GRAND TOURING LE 900 ACE XR, 2014 Rear Suspension Diagram

#

Description
Price

3

Socket Screw M8 X 25

205082554

$1.74

5

Socket Head Screw M10 X 35

205503554

$6.18

6

Socket Head Screw M12 X 35

205523554

$4.28

7

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

8

Hex. Cap Screw M10 X 60

207006056

$6.18

9

Hex. Cap Screw M6 X 30

207063054

$4.41

10

Hex. Screw M8 X 50

207085044

$1.25

11

Cap Screw Hex. M10 X 40

207204056

$6.18

12

Hex. Flange Screw M5 X 25

207652544

$0.42

13

Hex. Flange Screw M6 X 25

207662556

$3.61

14

Hex. Flange Screw M6 X 70

207667056

$3.61

15

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

16

Hex. Flange Screw M8 X 40

207684044

$1.25

17

Phillips Screw M6 X 25

208562531

$1.74

18

Hex Screw M10 x 100

230100054

$5.29

22

Elastic Stop Nut M6

232561414

$1.55

23

Hex. Flange Elastic Nut M10

233201436

$1.74

24

Hex. Flange Elastic Nut M5

233251414

$1.66

25

Hex. Flange Elastic Nut M6

233261466

$1.66

26

Elastic Flange Nut M8

233281466

$0.83

27

Elastic Locking Nut M10 X 1.5

233601416

$1.68

28

Elastic Locking Nut M10

233601466

$1.74

29

Flat Washer 8 mm

234082410

$1.11

30

Hex. Cap Screw M12 X 35

250000537

$2.63

31

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$3.61

32

Flat Washer 8 mm

250200128

$1.74

33

Washer

250200140

$0.83

34

Conical Spring Washer M10

250200141

$2.06

35

Flat Washer

250200143

$2.63

36

Pop Rivet 3/16"

293150013

$1.11

37

E-Circlip

293370013

$0.62

39

Retaining Ring

293370080

$2.12

42

Grease Fitting

408200700

$2.80

43

Retaining Ring

415129371

$8.92

44

Retaining Ring

415129780

$13.88

45

Urethane Bushing

503189117

$6.88

46

Axle Spring

503189146

$7.54

47

Pivot Arm Axle

503189156

$20.74

49

Bushing

503189271

$10.46

50

Washer

503189276

$3.20

51

Bushing | Includes 240d to 240d1

503189282

$4.18

52

Ball Bearing | Package-STD

503190396

$7.12

54

Rear Wheel Spacer

503190428

$6.06

55

Rear Axle

503190429

$59.97

56

Spacer

503196317

$15.35

57

Washer

503190432

$12.52

58

Labyrinth Seal

503190434

$4.29

59

Rubber Stopper

503190576

$10.23

60

Axle Bar (Long)

503190643

$15.35

61

Washer

503190656

$2.91

62

Labyrinth Seal

503190682

$5.85

63

Axle

503190698

$17.66

65

Spring Support Kit

861805547

$8.14

72

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

73

Spring Support Kit

861805547

$8.14

75

Center Bushing

503191259

$8.97

76

Axle Strap

503191260

$29.20

77

Washer

503191273

$1.06

78

Spring Spacer

503191281

$7.66

79

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

80

Deep Black, Spring (189mm) Long

503193160

$88.43

81

Black Spring (51mm) Short

503193480

$88.43

83

Bushing

503191554

$5.88

84

Swivel Bushing

503191555

$5.71

86

LH Cam Adjuster

503191565

$13.95

86

RH Cam Adjuster

503191566

$13.95

90

Full Moon Wheel Ass'y, 147 mm

503191624

$46.12

94

Full Moon Wheel Ass'y, 180 mm

503191627

$49.97

95

Cushion

503191640

$5.71

97

Wheel Cup M6

503191820

$4.66

98

Washer

503191910

$2.25

99

Washer

503191926

$1.57

100

Lower Axle

503191966

$15.35

101

Ball Bearing

503193548

$16.89

104

Bolt M8 X 248mm

503192440

$29.97

105

Washer

503192491

$4.38

106

Washer

503192494

$3.11

107

Washer

503192496

$0.75

109

Rocker

503192531

$78.43

119

Axle Bar

503192555

$11.40

121

Labyrinth Ring

503192592

$4.66

122

Axle Shock Absorber

503196509

$11.98

123

Spacer

503196943

$7.58

124

Guide Block

503192749

$5.85

126

Rubber Stopper

503192750

$12.65

127

Stopper Strap

503192360

$19.97

131

Bushing

503192767

$15.26

132

Black, Wheel Cap

503192771

$2.28

135

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

143

Tensioner

503192583

$5.85

154

LH Cam Block

503192918

$12.65

154

RH Cam Block

503192919

$12.65

155

O-Ring

503192921

$2.25

156

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

157

Lower Shaft

503192981

$17.66

158

Bushing

503193037

$15.35

159

Casted Support

503193894

$12.75

160

Protector

503193663

$35.35

162

Rubber Stopper Ass'y

503195523

$5.25

163

Pivot Axle

503193435

$38.43

167

Black LH Spring, Square

503193539

$103.05

167

Black, RH Spring Square

503193538

$103.05

168

Bolt M10 X 251MM

503193227

$16.12

169

Spacer

503193250

$13.95

174

Screw M8 X 90

503193372

$4.28

176

Link Rod

503193443

Unavailable

179

Runner 137"

503194037

Unavailable

180

Black, Slider Shoe 137"

503193449

$27.66

182

Black Wheel Ass'y 165 mm | Included 3070 to 3070b

503193451

$49.97

185

Front Arm Ass'y

503193452

Unavailable

186

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

193

LH Protector

503193724

$35.35

193

RH Protector

503193725

$35.35

195

Adjustment Cam

505073625

$12.18

196

Leg Cushion

505072663

$7.40

198

Runner Decal

516004755

$9.11

200

LH Block Sticker Decal

516004900

$16.12

200

RH Block Sticker Decal

516004901

$16.12

201

Spring Guide

503191872

$2.18

205

Reinforcement Stopper

572084800

$5.25

206

Spring Stopper

706200881

$10.30

207

REAR SHOCK HPG - Call your local BRP dealership

503193647

Unavailable

211

Central Shock

503193444

$157.66
