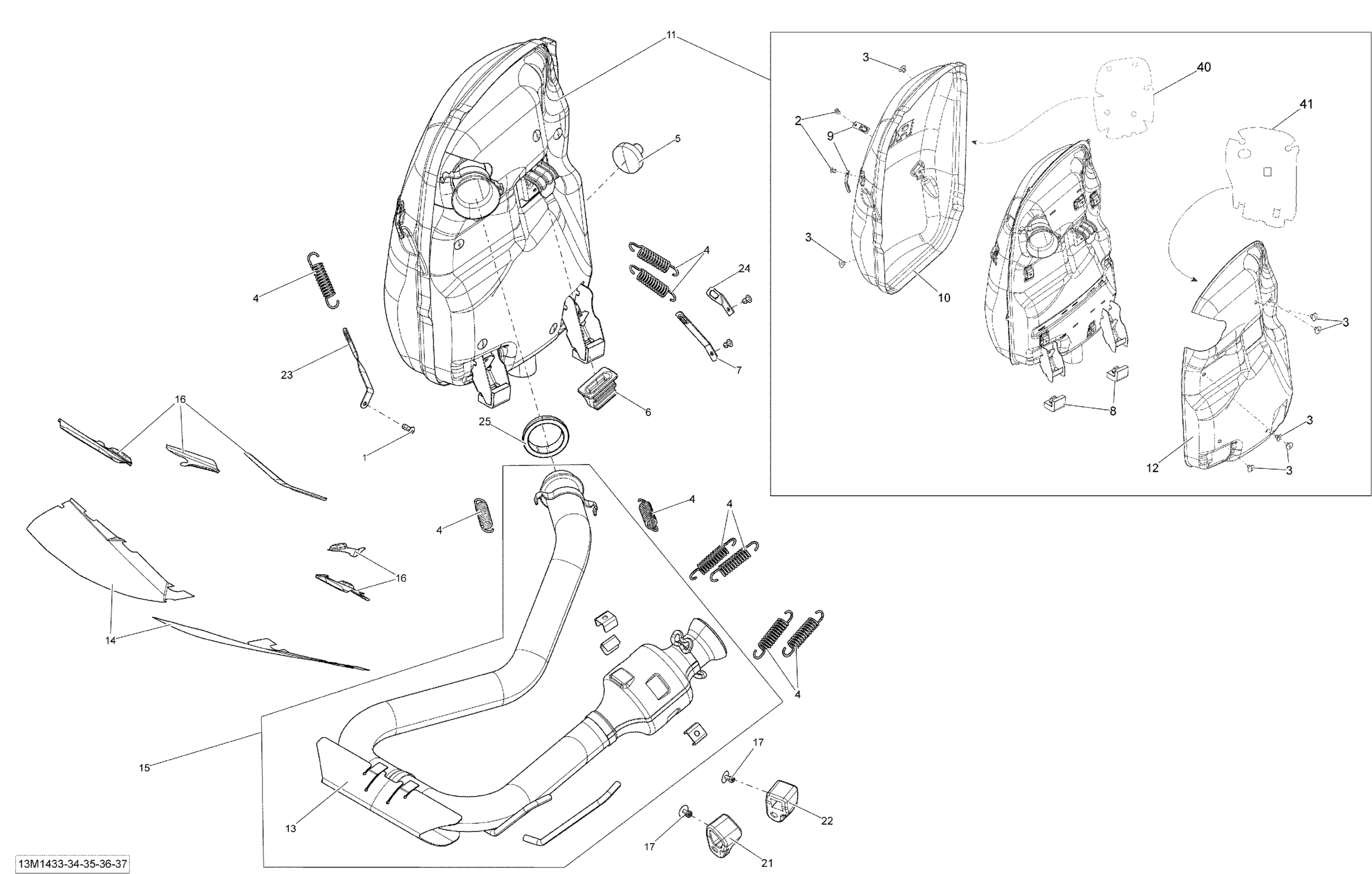

Ski-Doo GRAND TOURING LE 900 ACE XR, 2014 Exhaust System Diagram

#

Description
Price

1

Interlock Rivet 3/16''

293150194

$0.99

2

Avex Rivet

390909200

$0.28

3

Pop Rivet 3/16”

390910000

$0.55

4

Spring

415107100

$6.01

5

Not Available As Spare Parts

XXX

Unavailable

6

Stopper

514054346

$17.88

7

SPRING BRACKET - Call your local BRP dealership

514054484

Unavailable

8

Lower Stopper

514054496

$25.34

9

Spring Bracket

514054522

$6.09

10

RH Heat Shield

514055325

$52.96

11

Muffler Ass'y | Includes 400 to 400h

514055324

$698.48

12

LH HEAT SHIELD - Call your local BRP dealership

514055128

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

PIPE ASS'Y - Call your local BRP dealership

514055096

Unavailable

16

HEAT SHIELD - Call your local BRP dealership

514055009

Unavailable

17

Pop Rivet 3/16"

293150103

$0.52

21

Not Available As Spare Parts

XXX

Unavailable

22

RUBBER - Call your local BRP dealership

514055015

Unavailable

23

Spring Bracket

514055030

$10.24

24

Not Available As Spare Parts

XXX

Unavailable

25

Exhaust Gasket

707601033

$13.04

40

RH Insulating Wool

514054769

$11.28

41

LH Insulating Wool

514054881

$13.36
