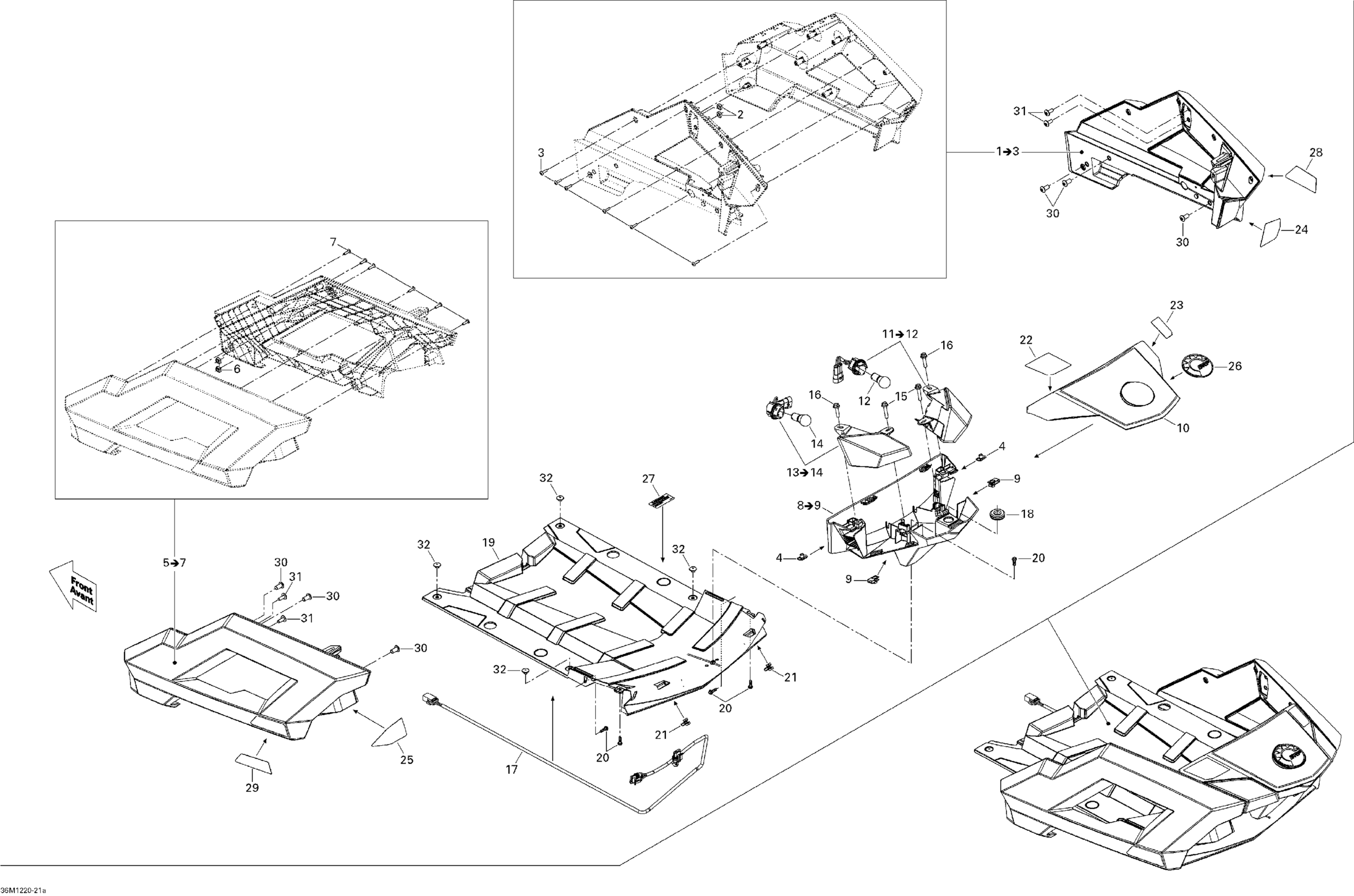

Ski-Doo Grand Touring LE 600HOETEC XR, 2012 Luggage Rack Diagram

#

Description
Price

1

RH Arm Ass'y

511000631

$86.12

2

Square Nut M6

232862412

$1.18

3

Torx-Truss Pt K40 X 16

250000759

$1.74

4

Nut Welded, M6

293100003

$6.32

5

LH Arm Ass'y

511000632

Unavailable

6

Square Nut M6

232862412

$1.18

7

Torx-Truss Pt K40 X 16

250000759

$1.74

8

Rack Ass'y

511000530

$71.51

9

Panel Nut M6 X 1.0

250100198

$1.73

10

Cover

511000545

$73.82

11

RH Tail Light Ass'y

515176849

$61.99

12

Bulb

520000758

$7.49

13

LH Tail Light Ass'y

515176850

$61.99

14

Bulb

520000758

$7.49

15

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

16

Hex. Flange Screw M6 X 25

207662554

$1.48

17

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

18

Grommet

517303756

$3.15

19

Radiator Cover

511000861

$53.99

20

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

21

Edge Clip

517302785

$0.70

22

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

23

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

24

Red RH Rear Reflector

520000731

$13.77

25

Red LH Rear Reflector

520000732

$13.38

26

BRP Logo 68mm

516008739

$12.87

27

WARNING DECAL, SECURITY - Call your local BRP dealership

516004587

Unavailable

28

Red RH Rear Reflector

520000729

$13.77

29

RED LH REAR REFLECTOR - Call your local BRP dealership

520000730

Unavailable

30

Torx Screw M8 X 16

250000751

$4.64

31

Torx Truss Screw M6 X 16

250000721

$1.39

32

Pop Rivet 3/16"

293150103

$0.54
