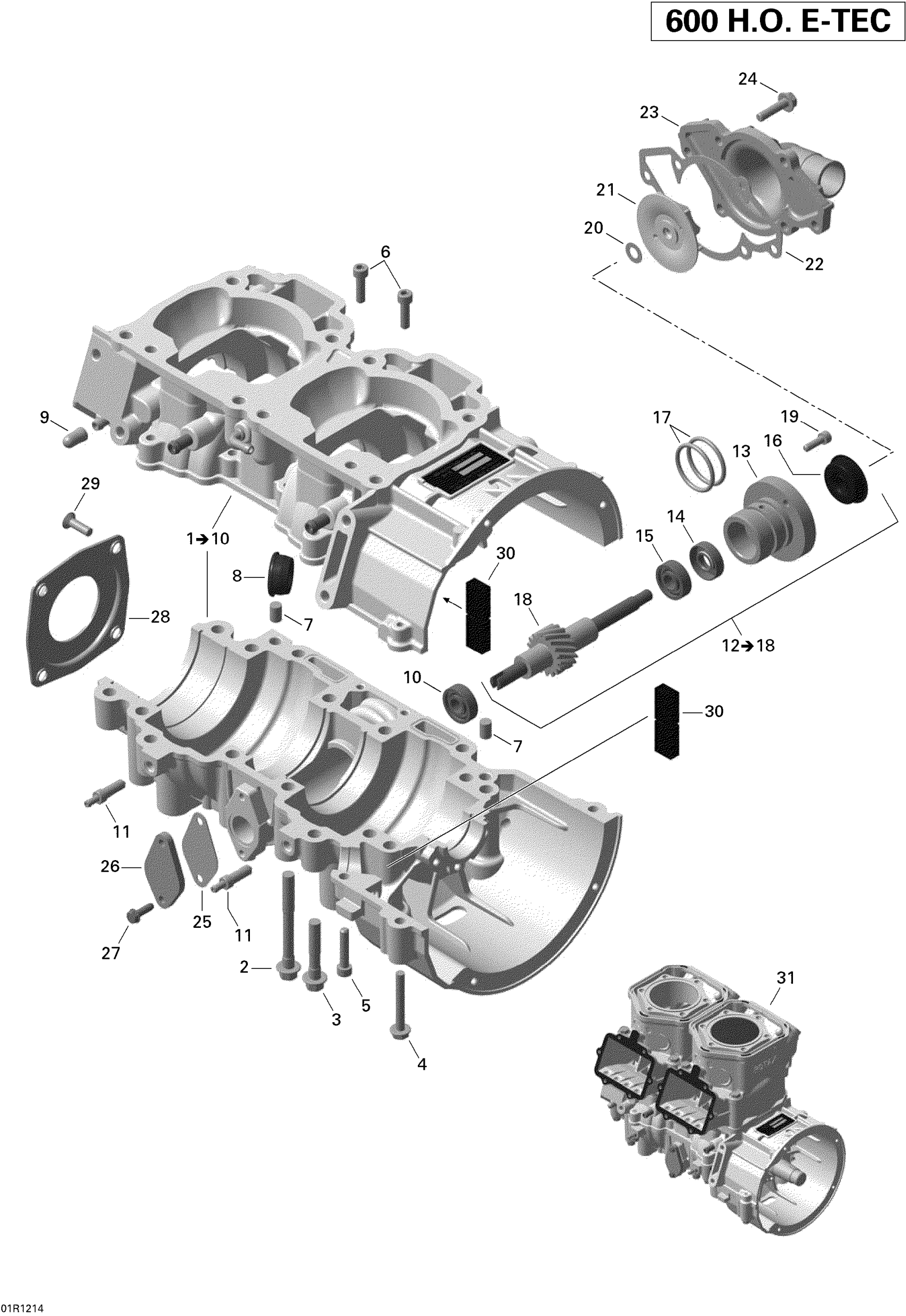

Ski-Doo Grand Touring LE 600HOETEC XR, 2012 01- Crankcase And Water Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 10

420890229

$1.00

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

7

Center Pin 8 X 12

420632010

$4.01

8

Cable Grommet

420660890

$14.22

9

Cap

420960770

$4.12

10

Ball Bearing

420232100

$20.99

11

Check Valve

420956071

$24.99

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$15.36

15

Ball Bearing

420232100

$20.99

16

Rotary Seal

420650371

$43.49

17

O-Ring

420950890

$4.44

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.90

20

Thrust Washer

420227945

$4.01

21

Water Impeller

420222505

$19.99

22

Gasket This part replaces 420931810.

420931811

$13.76

23

Water Pump Housing

420922630

$61.49

24

Hex. Screw M6 X 25

420240034

$1.90

25

Gasket This part replaces 420931566.

420931568

$10.33

26

Cover Plate

420810827

$14.83

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Seal Cover

420812422

$14.83

29

Screw M6 X 20

420941436

$3.17

30

Rubber Stopper

420960925

$6.39

31

Short Block 593 Ho E-Tec

420059354

$2.00

31

Short Block 593 Ho E-Tec

420059354

$2.00
