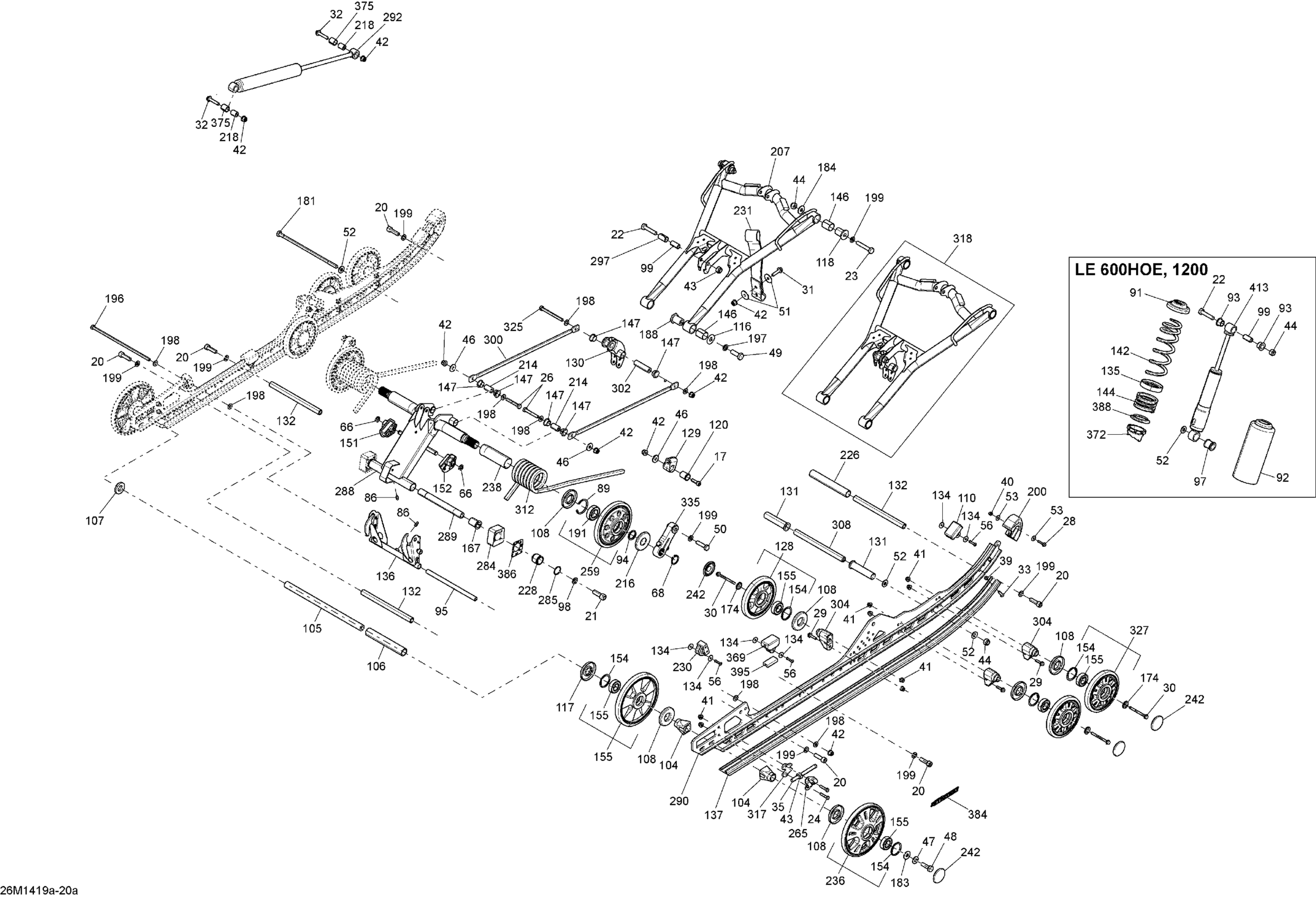

Ski-Doo GRAND TOURING LE 600HOE XR, 2014 Rear Suspension LE 600HOE Diagram

#

Description
Price

17

Socket Screw M8 X 25

205082554

$2.11

20

Socket Head Screw M10 X 35

205503554

$7.51

21

Socket Head Screw M12 X 35

205523554

$4.44

22

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

23

Hex. Cap Screw M10 X 60

207006056

$7.51

24

Hex. Cap Screw M6 X 30

207063054

$6.39

26

Hex. Screw M8 X 55

207085544

$1.68

28

Hex. Flange Screw M5 X 25

207652544

$0.50

29

Hex. Flange Screw M6 X 25

207662556

$4.44

30

Hex. Flange Screw M6 X 70

207667056

$4.44

31

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

32

Hex. Flange Screw M8 X 40

207684044

$1.48

33

Phillips Screw M6 X 25

208562531

$2.11

35

Hex Screw M10 x 100

230100054

$6.45

39

Elastic Stop Nut M6

232561414

$0.55

40

Hex. Flange Elastic Nut M5

233251414

$1.04

41

Elastic Flange Nut M8

233281466

$1.01

42

Elastic Flange Nut M8

233281466

$1.01

43

Elastic Locking Nut M10

233601466

$2.11

44

Elastic Locking Nut M10

233601466

$2.11

46

Flat Washer 8 mm

234082410

$1.47

47

Conical Spring Washer M10

250200141

$2.11

48

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

49

Hex. Cap Screw M12 X 35

250000537

$3.17

50

Cap Screw Hex. M10 X 40

207204056

$7.51

51

Flat Washer 8 mm

250200128

$4.44

52

Washer

250200138

$2.11

53

Washer

250200140

$1.01

56

Pop Rivet 3/16"

293150013

$1.37

66

E-Circlip

293370013

$0.65

68

Retaining Ring

293370080

$2.29

86

Grease Fitting

408200700

$3.49

89

Retaining Ring

415129780

$15.79

91

Spring Stopper

706200881

$12.99

92

Protector

503193663

$37.99

93

Urethane Bushing

503189117

$8.19

94

Axle Spring

503189146

$9.59

95

Pivot Arm Axle

503189156

$21.99

97

Bushing

503189271

$13.99

98

Washer

503189276

$3.28

99

Bushing | Includes 240d to 240d1

503189282

$4.34

104

Rear Wheel Spacer

503190428

$8.14

105

Rear Axle

503190429

$59.99

106

Spacer

503196317

$18.49

107

Washer

503190432

$14.22

108

Labyrinth Seal

503190434

$6.09

110

Rubber Stopper

503190576

$12.99

116

Washer

503190656

$2.96

117

Labyrinth Seal

503190682

$6.19

118

Axle

503190698

$20.99

120

Spring Support Kit

861805547

$10.49

128

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

129

Spring Support Kit

861805547

$10.49

130

Rocker

503192531

$76.99

131

Center Bushing

503191259

$11.49

132

Axle Strap

503191260

$30.99

134

Washer

503191273

$1.35

135

Spring Spacer

503191281

$8.89

136

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

137

Black, Slider Shoe 137''

503191306

$29.49

142

Black Spring (51mm) Short

503193480

$90.99

144

Black, Spring (189mm) Long

503193067

$90.99

146

Bushing

503191554

$6.14

147

Swivel Bushing

503191555

$7.83

151

LH Cam Adjuster

503191565

$16.49

152

RH Cam Adjuster

503191566

$16.49

154

Retaining Ring

415129371

$12.01

155

Ball Bearing | Package-STD

503190396

$14.30

167

Cushion

503191640

$5.93

174

Wheel Cup M6

503191820

$4.99

181

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$15.99

183

Washer

503191910

$2.32

184

Washer

503191926

$1.58

188

Lower Axle

503191966

$15.89

191

Ball Bearing

503193548

$17.99

196

Bolt M8 X 248mm

503192440

$30.49

197

Washer

503192491

$4.54

198

Washer

503192494

$3.17

199

Washer

503192496

$0.77

200

Slide Protector

503192530

$19.99

207

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

214

Axle Bar

503192555

$14.15

216

Labyrinth Ring

503192592

$4.99

218

Axle Shock Absorber

503196509

$12.58

226

Spacer

503196943

$10.99

228

Guide Block

503192749

$6.19

230

Rubber Stopper

503192750

$14.99

231

Stopper Strap

503192759

$25.99

236

Full Moon Wheel Ass'y, 180 mm

503191627

$51.99

238

Bushing

503192767

$17.39

242

Black, Wheel Cap

503192771

$2.39

247

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

259

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

265

Tensioner

503192583

$8.29

284

LH Cam Block

503192918

$14.99

284

RH Cam Block

503192919

$14.99

285

O-Ring

503192921

$2.32

288

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

289

Lower Shaft

503192981

$20.99

290

Bare, Runner 137" | Not Shown

503193730

$244.99

292

Rear Shock Ass'y

503195281

$248.99

297

Bushing

503193037

$16.18

300

Link Rod

503193005

$28.49

302

Axle Bar (Long)

503190643

$17.39

304

Casted Support

503193894

$16.49

308

Pivot Axle

503193435

$39.99

312

Black LH Spring, Square

503193539

$104.99

312

Black, RH Spring Square

503193538

$104.99

317

Spacer

503193250

$16.49

318

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

325

Screw M8 X 90

503193372

$4.44

327

Full Moon Wheel Ass'y, 141 mm

503191622

$37.99

335

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

369

Rubber Stopper Ass'y

503195523

$5.59

372

Adjustment Cam

505073625

$12.99

375

Leg Cushion

505072663

$9.23

384

Runner Decal

516004755

$11.99

386

LH Block Sticker Decal

516004900

$18.99

386

RH Block Sticker Decal

516004901

$18.99

388

Spring Guide

503191872

$2.29

395

Reinforcement Stopper

572084800

$12.99

413

Center Shock

503192209

$164.49
