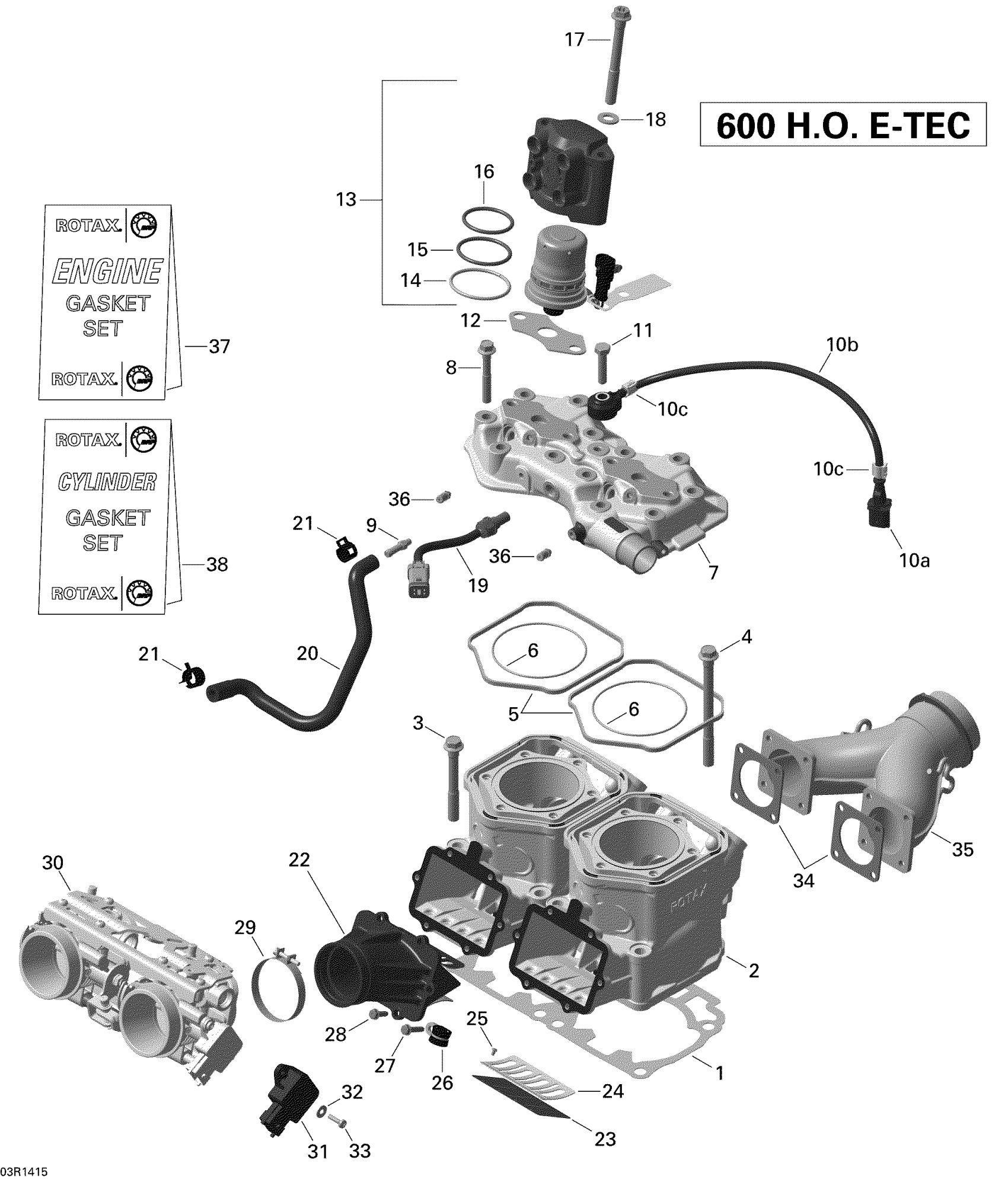

Ski-Doo GRAND TOURING LE 600HOE XR, 2014 Cylinder And Injection System Diagram

#

Description
Price

1

Gasket 0.5 mm

420431160

$16.89

1

Gasket 0.6 mm

420431161

$23.05

1

Gasket 0.7 mm

420431162

$23.05

1

Double Gasket 0.8 mm

420431163

$23.05

2

Cylinder

420623263

$469.99

2

Cylinder

420623263

$469.99

3

Hex. Collar Screw

420640524

$11.52

4

Hex. Collar Screw

420640534

$13.58

5

Rubber Ring

420931590

$5.69

6

O-Ring This part replaces 420850540.

293300026

$2.67

7

Head Cylinder Cover

420623299

$274.99

8

Hex. Screw M8 X 56.5

420941627

$8.34

9

Hose Nipple

420924724

$12.29

10a

Noise Sensor

270000484

$65.62

10b

TUBE - Call your local BRP dealership

420460010

Unavailable

10c

CLIP - Call your local BRP dealership

420960890

Unavailable

11

Hex. Screw M8 X 35

207083544

$0.92

12

Gasket

420430930

$4.60

13

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

14

Crush Ring

415129497

$7.38

15

O-Ring

415129498

$12.51

16

O-Ring

415129499

$6.82

17

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

18

Flat Washer M10 This part replaces 420927410.

420927411

$2.06

19

Temperature Sensor This part replaces 420664508.

420664509

$142.28

20

Molded Hose

420460867

$17.66

21

Clamp

420853511

$7.31

22

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$228.43

23

Reed Pedal

420924680

$37.66

24

Reed Pedal Stop

420924695

$13.58

25

Phillips Screw M3 X 5

420941215

$1.42

26

Clamp

420851250

$9.31

27

Tapping Screw M5 X 22

420841550

$1.68

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Clamp

420851065

$13.58

30

Throttle Body

420889201

$1,228.43

31

Position Sensor

420866120

$77.97

32

Flat Washer 4 mm, Stainless

234041600

$0.91

33

Phillips Screw M4 X 16

208641660

$0.74

34

Gasket

420850552

$7.92

35

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

36

Hose Nipple

420924724

$12.29

37

Gasket Set, Engine

420889924

$184.58

38

Gasket Set, Cylinder

420889928

$159.20
