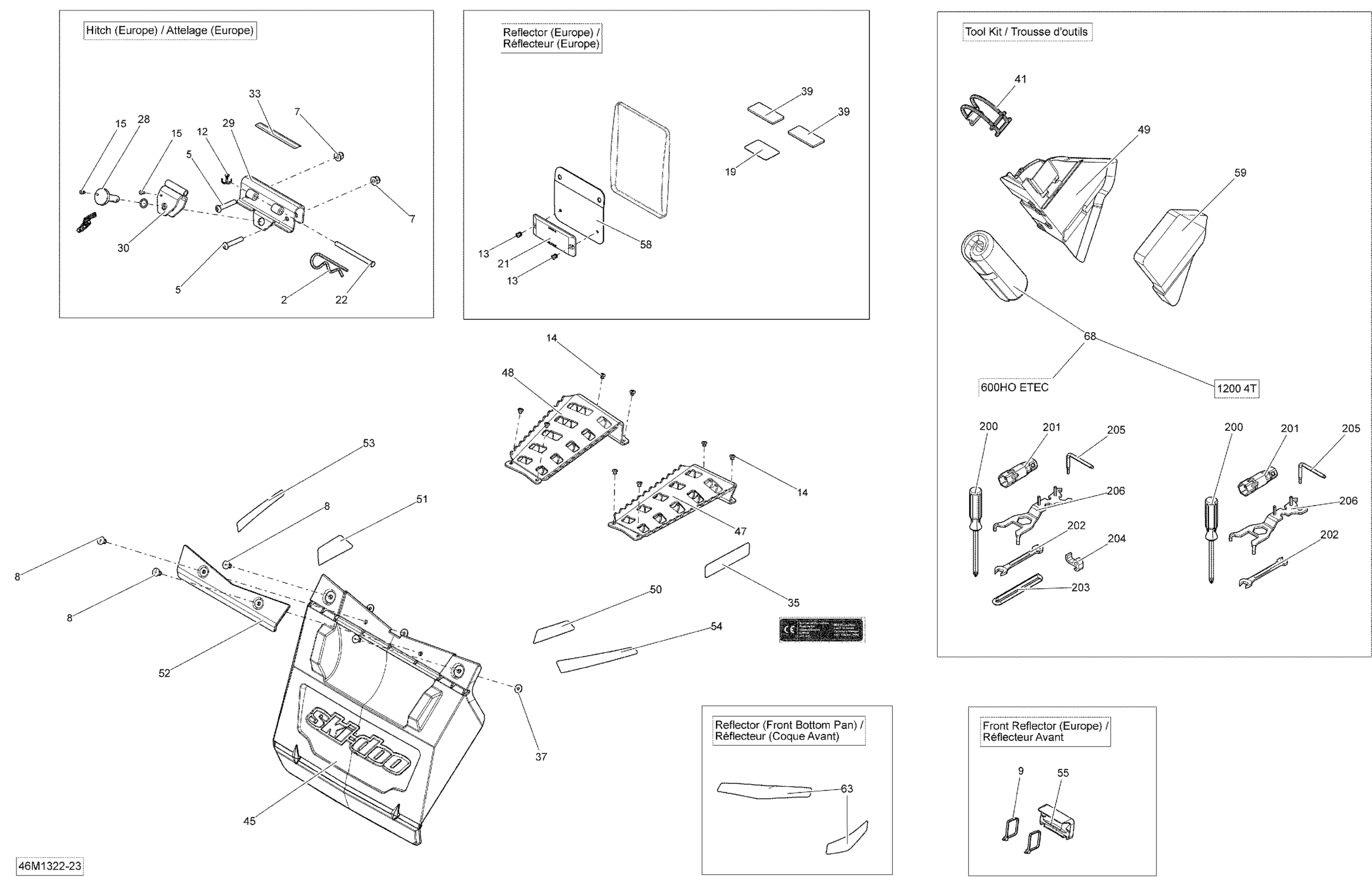

Ski-Doo GRAND TOURING LE 600HOE XR, 2013 09- Utilities Diagram

#

Description
Price

2

Hair Pin

114045200

$11.11

5

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Pop Rivet 3/16”

293150108

$1.19

9

Tie Rap 371 mm

293750018

$0.56

12

Cotter Pin

371800200

$0.53

13

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

14

Rivet 3/16"

293150102

$0.70

15

Pop Rivet 5/32” | Model Europe

390404300

$0.35

19

White, Reflector

415037900

$22.99

21

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

22

Lock Pin

511001451

$9.49

28

Pin

511000555

$19.49

29

Support

511000554

$19.49

30

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

33

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

35

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

37

Washer

517124300

$0.19

39

Amber, Reflector

520000271

$19.99

41

Latch

520000528

$7.69

45

Snow Guard

520000659

$84.99

47

MAT BLACK RH FOOTREST - Call your local BRP dealership

520000768

Unavailable

48

MAT BLACK LH FOOTREST - Call your local BRP dealership

520000769

Unavailable

49

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

50

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Europe

520000803

Unavailable

51

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Europe

520000804

Unavailable

52

Reinforcement

520000751

$20.99

53

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000832

Unavailable

54

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000831

Unavailable

55

Deep Black, Reflector Support

520000871

$5.79

58

REFLECTOR SUPPORT - Call your local BRP dealership | Model-Europe

520000933

Unavailable

59

FOAM - Call your local BRP dealership

520001060

Unavailable

63

YELLOW FRONT REFLECTOR XR - Call your local BRP dealership

520001234

Unavailable

68

Tool Kit | Includes 20 To 28

529000065

$55.99

200

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

201

Set Key, 16/21 mm

529000046

$14.49

202

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

203

Was 412500100 Rope-Starter

219704403

$158.99

204

Starter Grip

529000060

$14.15

205

Spacing Tool

520001142

$10.52

206

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable
