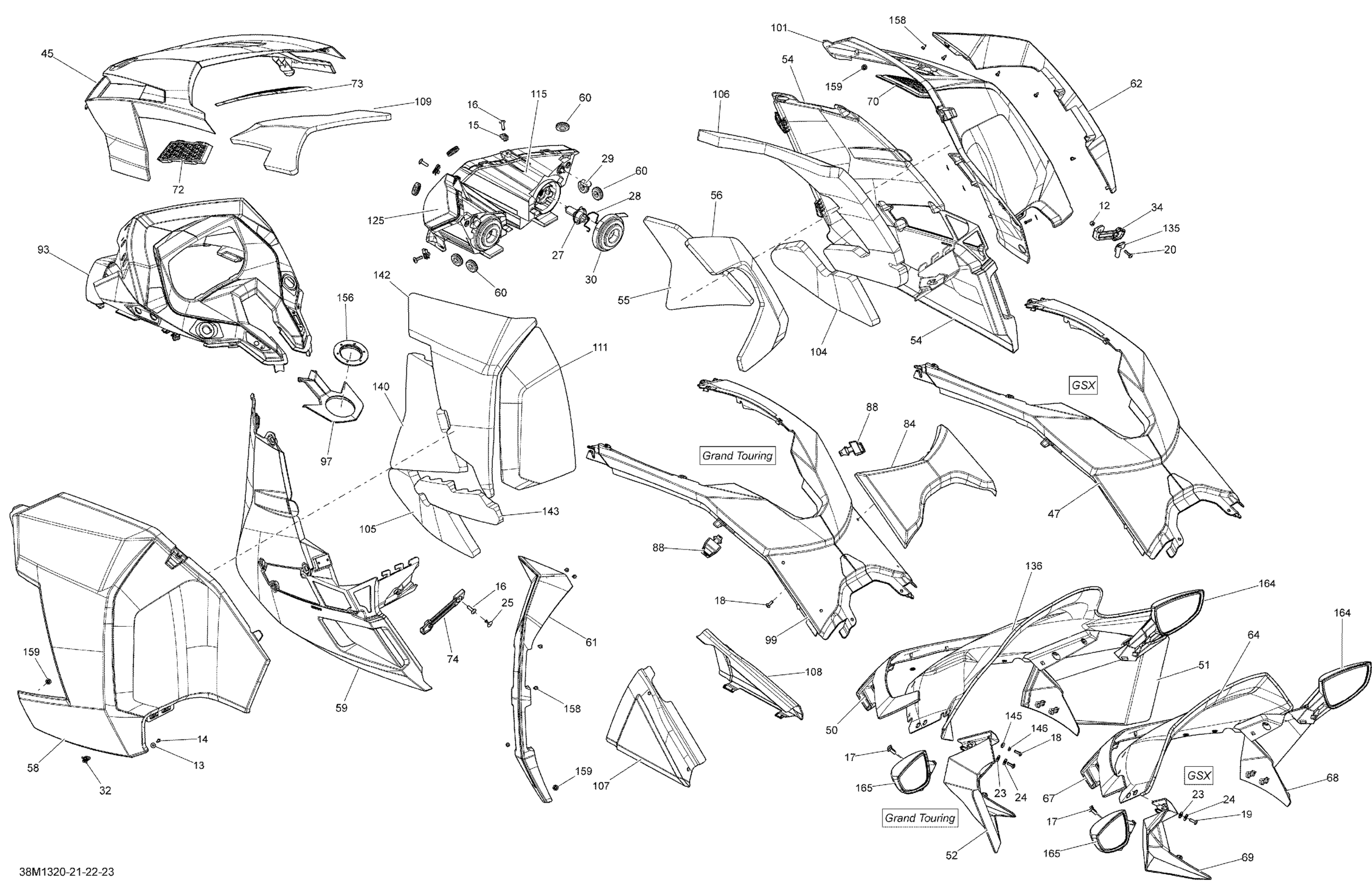

Ski-Doo GRAND TOURING LE 600HOE XR, 2013 09- Hood, Windshield And Console Diagram

#

Description
Price

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

Hex. Flange Screw K40 X 16

241141660

$1.48

15

Panel Nut M6 X 1.0

250100198

$2.11

16

Torx Screw M6 X 20

250000722

$1.68

17

Torx Truss Screw M6 X 16

250000721

$1.69

18

Torx Screw K50 X 16

250000720

$1.69

20

Torx Screw M5 X 20

250000792

$2.11

23

Rubber Washer 5 mm

250200024

$2.19

24

Washer M5

250200025

$0.74

25

Not Available As Spare Parts

XXX

Unavailable

27

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

28

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

29

Cap

515176498

$12.99

30

Rubber Cap Protector

219800280

$19.49

32

Edge Clip

517302785

$0.88

34

RH Panel Latch

517303612

$9.99

45

Black Hood | Model-Black-Black

517303739

$244.99

45

HOOD, BRIGHT WHITE - Call your local BRP dealership

517304374

Unavailable

45

HOOD B-341 - Call your local BRP dealership | Model-SE White-White

517305158

Unavailable

45

HOOD B-321 - Call your local BRP dealership | Model-GSX SE Magnesium-Magnesium

517305159

Unavailable

47

Black Console

517303741

$224.99

47

CONSOLE, BRIGHT WHITE - Call your local BRP dealership

517304381

Unavailable

47

MAGNESIUM CONSOLE ASS'Y - Call your local BRP dealership | Model-GSX SE Magnesium-Magnesium

517305163

Unavailable

47

CONSOLE B-341 ASSY - Call your local BRP dealership | Model-SE White-White

517305259

Unavailable

50

Windshield Support Kit

860200230

$34.99

51

RH Console Air Deflector

517303745

$42.99

52

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303746

Unavailable

54

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

55

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

56

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

58

Black LH Pannel | Model-Black-Black

517303753

$229.99

58

White LH Pannel | Model-SE White-White

517305327

$589.99

58

Magnesium LH Panel | Model-GSX SE Magnesium-Magnesium

517305174

$589.99

59

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

60

Grommet

517303756

$4.09

61

BLACK LH SIDE WIND DEFLECTOR - Call your local BRP dealership

517304196

Unavailable

61

DEFLECTOR_AIR KNEE LH B-341 - Call your local BRP dealership | Model-SE White-White

517305233

Unavailable

62

BLACK RH SIDE WIND DEFLECTOR - Call your local BRP dealership | Model-Black-Black

517304197

Unavailable

62

DEFLECTOR_AIR KNEE RH B-341 - Call your local BRP dealership | Model-SE White-White

517305232

Unavailable

64

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

Not Available As Spare Parts

XXX

Unavailable

70

PANEL GRILL - Call your local BRP dealership | Model-SE Black-Black

517304909

Unavailable

72

LH Hood Grille

517303804

$31.99

73

RH Hood Grille

517303805

$31.99

74

LH Panel Latch

517303808

$11.49

84

Not Available As Spare Part - Friction Washer

Unavailable

88

Panel Latch

517305000

$13.49

93

INDICATOR SUPPORT - Call your local BRP dealership

517303971

Unavailable

93

INDICATOR SUPPORT - Call your local BRP dealership

517303996

$80.99

97

Deep Black, Cap Console

517304027

$15.49

99

Not Available As Spare Parts

XXX

Unavailable

101

Black RH Pannel

517304006

$349.99

101

PANEL_BODY RH B-341 - Call your local BRP dealership | Model-SE White-White

517305328

$389.99

101

Magnesium RH Panel | Model-GSX SE Magnesium-Magnesium

517305168

$589.99

104

RH LOWER PANEL FOAM - Call your local BRP dealership

517304905

Unavailable

105

LH LOWER PANEL FOAM - Call your local BRP dealership

517304901

Unavailable

106

RH UPPER PANEL FOAM - Call your local BRP dealership

517304908

Unavailable

107

DEEP BLACK LH FUEL TANK MOULDING - Call your local BRP dealership | Model-Black-Black

517304123

Unavailable

107

White LH Fuel Tank Moulding | Model-SE White-White

517305177

Unavailable

108

DEEP BLACK RH FUEL TANK MOULDING - Call your local BRP dealership | Model-Black-Black

517304124

Unavailable

108

White RH Fuel Tank Moulding | Model-SE White-White

517305178

Unavailable

109

Hood Foam

517304893

$28.99

111

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

115

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

125

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

135

Latch Support

517304221

$9.19

136

EXTRA HIGHT WINDSHIELD (620) - Call your local BRP dealership

517304268

Unavailable

140

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304899

Unavailable

142

LH UPPER PANEL FOAM - Call your local BRP dealership

517304902

$28.99

143

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304897

Unavailable

145

Rubber Washer 5 mm

517304281

$14.24

146

Flat Washer

517225900

$0.18

156

Console Nut

517304518

$15.29

158

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

159

Push Nut

732610072

$2.19

164

RH Mirror Ass'y

517305100

$52.99

165

LH Mirror Ass'y

517305101

$52.99
