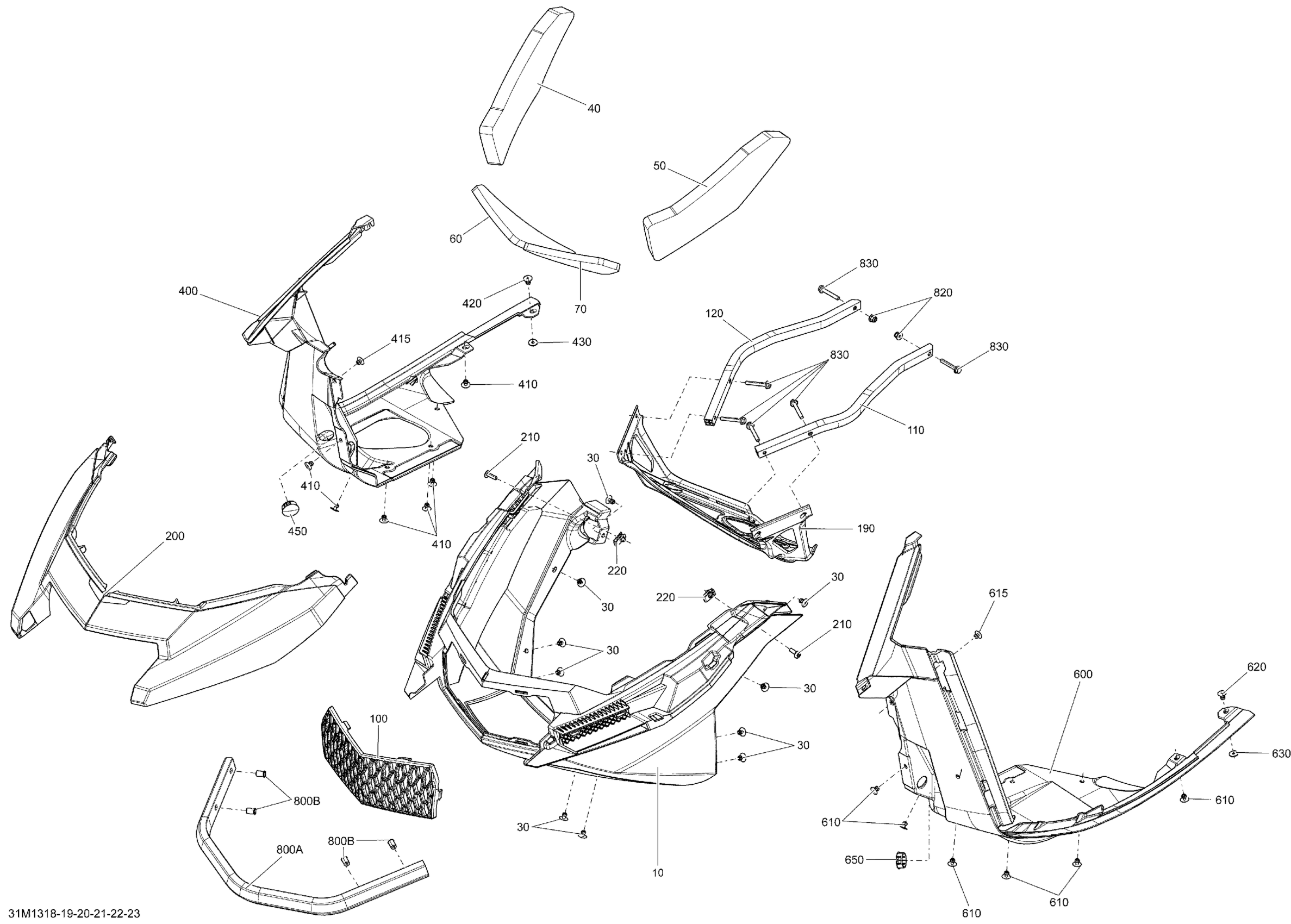

Ski-Doo GRAND TOURING LE 600HOE XR, 2013 09- Bottom Pan Diagram

#

Description
Price

10

Deep Black Front Bottom Pan

502006873

$114.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH UPPER HULL FOAM - Call your local BRP dealership

502007217

Unavailable

50

LH UPPER HULL FOAM - Call your local BRP dealership

502007219

Unavailable

60

RH MIDDLE HULL FOAM - Call your local BRP dealership

502007220

$18.49

70

LH MIDDLE HULL FOAM - Call your local BRP dealership

502007223

Unavailable

100

Botton Pan Grille

502006887

$27.99

110

LH Support

502007357

$31.99

120

RH Support

502006926

$28.99

190

Bracket

502006938

$21.99

200

Black Bottom Pan Cap

502006898

$98.99

210

Torx Screw M6 X 20

250000722

$1.68

220

Panel Nut M6 X 1.0

250100198

$2.11

400

RH BOTTOM PAN - Call your local BRP dealership

502006877

Unavailable

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

415

Pop Rivet 3/16"

293150103

$0.55

420

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Washer

517124300

$0.19

450

Black, Nylon Cap

414916600

$4.69

600

LH BOTTOM PAN - Call your local BRP dealership

502006937

Unavailable

610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

615

Pop Rivet 3/16"

293150103

$0.55

620

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

630

Washer

517124300

$0.19

650

Black, Nylon Cap

414916600

$4.69

800A

Black Bumper

502006939

$158.99

800B

Insert

293450275

$12.99

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

830

Hex. Flange Screw M6 X 40

207664044

$2.22
