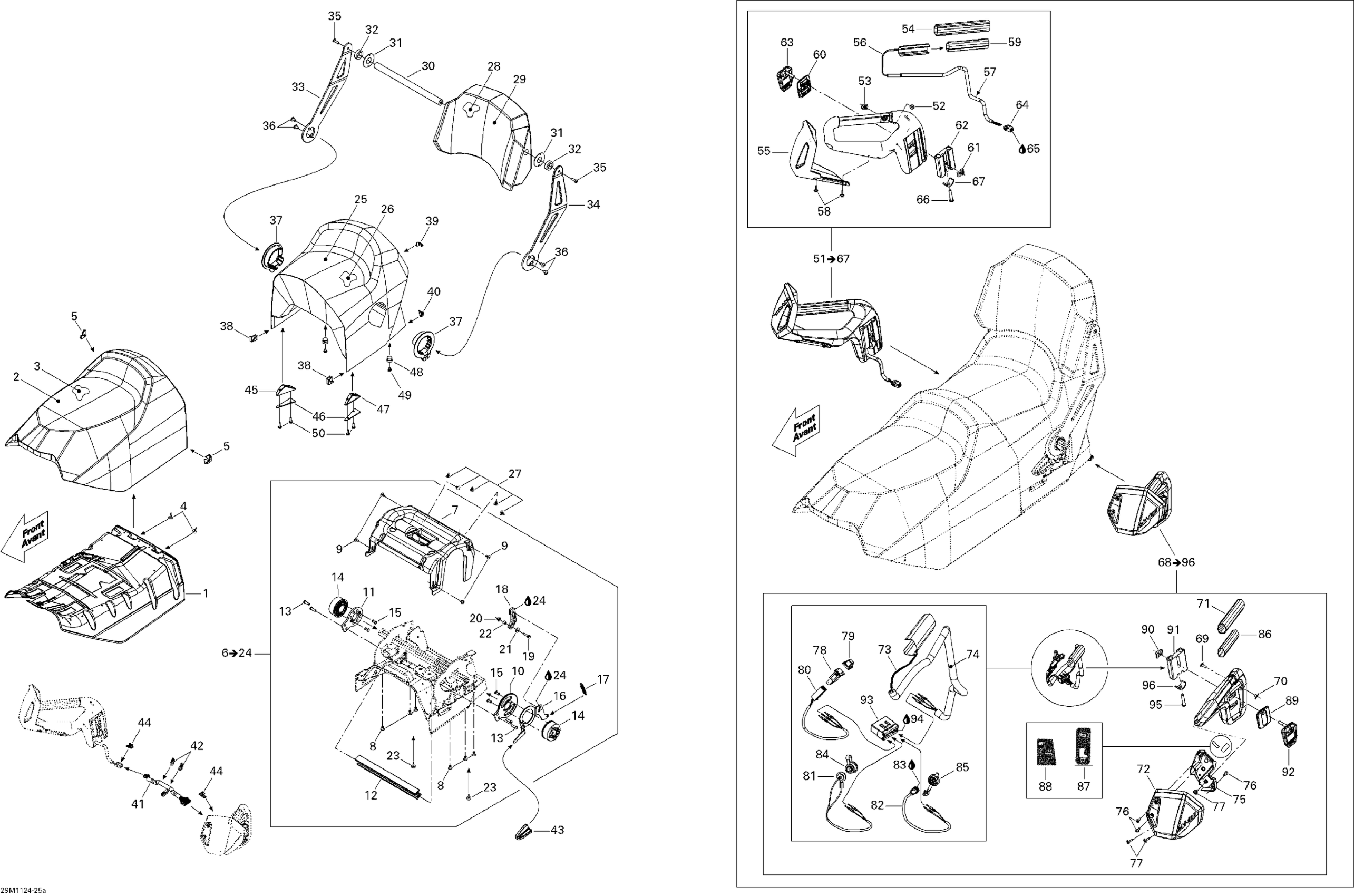

Ski-Doo Grand Touring LE 600HO ETEC XR, 2011 Seat Diagram

#

Description
Price

1

Front Seat Base

510004775

$85.79

2

FRONT SEAT COVER - Call your local BRP dealership

510004941

Unavailable

3

Front Seat Foam

510004777

$224.99

4

Rubber Stopper

708000759

$4.15

5

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

6

REAR SEAT BASE ASS'Y - Call your local BRP dealership | Includes 6 to 24

510004779

Unavailable

7

Foam Support

510004423

$35.04

8

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

9

Pop Rivet 3/16"

293150100

$1.04

10

Sprocket

510004391

$27.58

11

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

12

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

13

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

14

SPACER - Call your local BRP dealership

510005425

Unavailable

15

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

16

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

17

Spring

514053643

$6.01

18

Adjustment Pivot

510006338

$20.12

19

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

21

Flat Washer

224061201

$1.27

22

BUSHING - Call your local BRP dealership

510004425

Unavailable

23

Rubber Stopper

708000759

$4.15

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

REAR SEAT COVER - Call your local BRP dealership

510004996

Unavailable

26

Rear Seat Foam

510004791

$299.99

27

Black, Dart

414644300

$0.90

28

Backrest Foam

510004782

$129.99

29

BACKREST COVER - Call your local BRP dealership

510005101

Unavailable

30

Upper Backrest Axle

510004377

$44.00

31

Washer

510004379

$8.69

32

Rubber Shim

510004378

$8.36

33

RH ARM, BLACK - Call your local BRP dealership

510004794

Unavailable

34

LH ARM, BLACK - Call your local BRP dealership

510004796

Unavailable

35

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

36

Torx Truss Screw M8 X 16

250000746

$3.19

37

SPACER - Call your local BRP dealership

510004966

Unavailable

38

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

39

RH REAR CORNER SEAT - Call your local BRP dealership

510004964

Unavailable

40

LH REAR CORNER SEAT - Call your local BRP dealership

510004965

Unavailable

41

Seat Harness

515176766

$37.28

42

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

43

GRIP - Call your local BRP dealership

510004419

Unavailable

44

Housing Support

515175283

$8.18

45

RH Seat Anchor

518325710

$34.30

46

SPACER - Call your local BRP dealership

510005216

Unavailable

47

LH Seat Anchor

518325709

$34.30

48

SEAT STUD - Call your local BRP dealership

510005095

$23.85

49

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

50

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

51

RH HANDLE ASS'Y - Call your local BRP dealership | Includes 140 to 140,051

510005854

Unavailable

52

Torx Truss Screw M6 X 16

250000721

$1.60

53

Nut Welded, M6

293100003

$7.25

54

Handle Grip

510004449

$10.33

55

RH Air Deflector

510005009

$26.84

56

Heated Element

515176999

$66.39

57

Was 515175506 Tubing

219704426

$132.06

58

Screw M4 X 16

250000725

$3.30

59

Handle Reinforcement

510005011

$17.88

60

Passenger Handle Trim

510006602

$11.36

61

Stopper Block

510004804

$17.88

62

HANDLE LINK - Call your local BRP dealership

510004798

$29.07

63

Lever Lock Ass'y

510004806

$29.07

64

Male Housing, 3 Circuits

515175494

$14.90

65

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

66

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

67

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

68

LH Handle Ass'y | Includes 150a to 150a16

510006709

$244.99

69

Torx Truss Screw M6 X 16

250000721

$1.60

70

Nut Welded, M6

293100003

$7.25

71

Handle Grip

510004449

$10.33

72

LH Air Deflector

510005010

$26.84

73

Heated Element

515176999

$66.39

74

Was 515175506 Tubing

219704426

$132.06

75

Switch Housing

510005036

$17.13

76

Torx Screw K50 X 16

250000720

$1.60

77

Screw M4 X 16

250000725

$3.30

78

Rocker Switch

510004413

$8.31

79

Switch Protector

510004414

$7.15

80

Handle Harness

515176697

$27.58

81

Visor Connector Harness

515176698

$27.58

82

WIRING HARNESS_HEATED SOLE - Call your local BRP dealership

515177018

$24.60

83

Loctite 243, 10 ml

293800060

$21.49

84

Cap

572103300

$9.36

85

Cap

510004950

$12.67

86

Handle Reinforcement

510005011

$17.88

87

VISOR AND LINER DECAL - Call your local BRP dealership

516003612

Unavailable

88

Heated Handle Decal

516003816

$10.04

89

Passenger Handle Trim

510006602

$11.36

90

Stopper Block

510004804

$17.88

91

HANDLE LINK - Call your local BRP dealership

510004798

$29.07

92

Lever Lock Ass'y

510004806

$29.07

93

Male Connector

515176033

$14.90

94

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

95

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

96

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable
