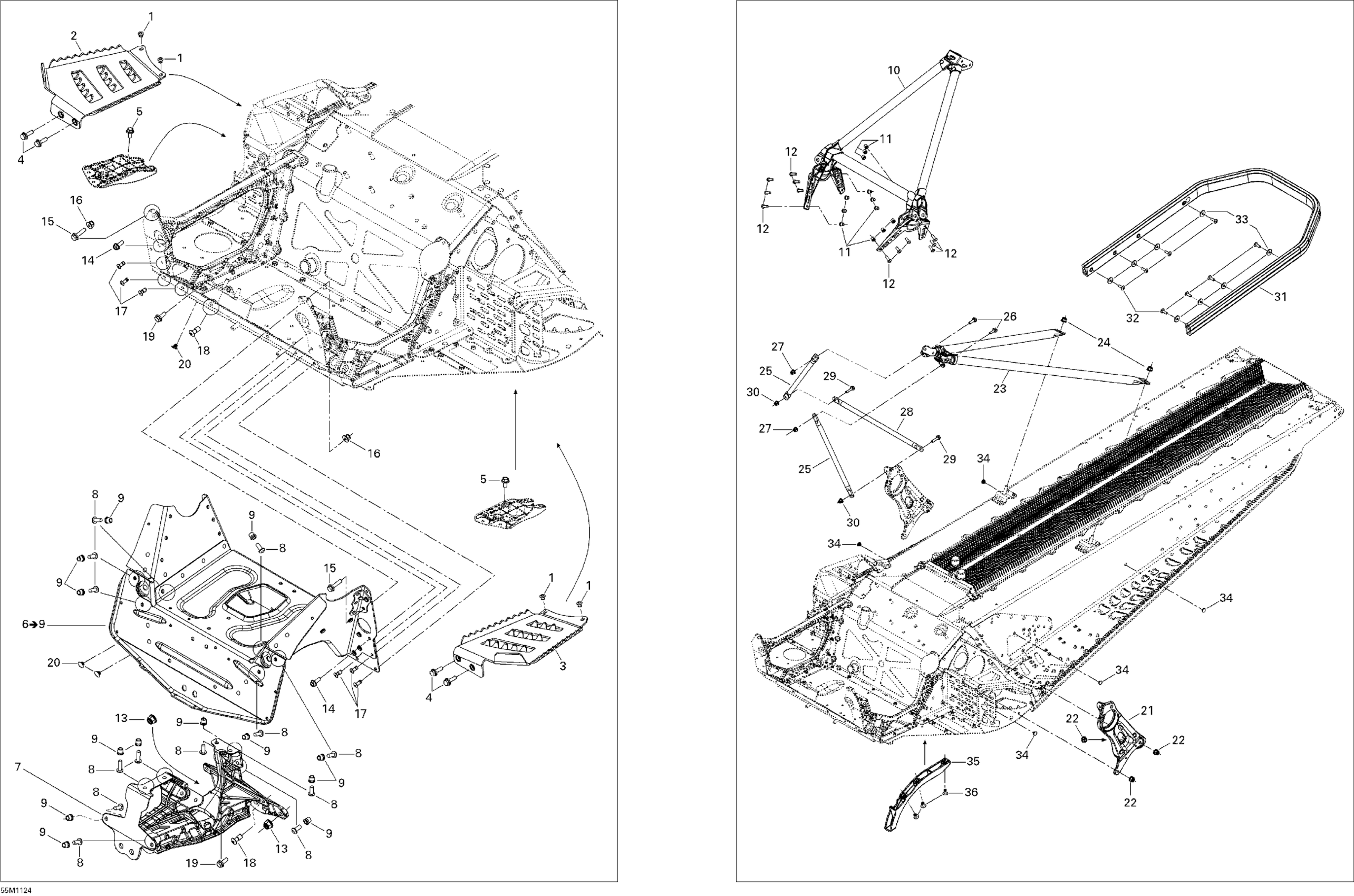

Ski-Doo Grand Touring LE 600HO ETEC XR, 2011 Frame and Components Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402200

$0.26

2

RH FOOTREST - Call your local BRP dealership | Grand Touring LE

518326193

Unavailable

3

LH FOOTREST - Call your local BRP dealership | Grand Touring LE

518326194

Unavailable

4

Hex. Flange Screw M6 X 20

207662044

$1.66

5

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

6

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

7

Front Suspension Support

518327487

$267.66

8

Hex. Flange Screw M6 X 20

207662044

$1.66

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Front Member

518326970

$276.12

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Hex. Flange Screw M6 X 20

207662044

$1.66

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Hex. Flange Screw M6 X 16

210261650

$1.22

15

Hex. Flange Screw M6 X 25

207662544

$0.53

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Monobolt Rivet, 4.8 mm

293150191

$0.95

18

Monobolt Rivet 6.4

293150182

$2.91

19

Hex. Flange Screw M6 X 16

207661644

$0.61

20

Full Moon Dart 5 mm

293730042

$2.12

21

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Rear Member

518326559

$244.58

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Upper Lateral Column Support

518325114

$20.74

26

Hex. Flange Screw M6 X 20

207662044

$1.66

27

Elastic Flange Nut M6 X 1.0

233261416

$1.74

28

Center Column Support

518325115

$20.74

29

Hex. Flange Screw M6 X 25

207662544

$0.53

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

31

REAR BUMPER - Call your local BRP dealership | Grand Touring LE

518325470

Unavailable

32

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

33

Flat Washer

224061201

$1.11

34

Full Moon Dart 8 mm

293730041

$2.12

35

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

36

Pop Rivet 3/16”

293150108

$1.23
