Description

Price

1

FRAME GRAND TOURING LE REV XR 137'' - Call your local BRP dealership | Includes 1 to 36

415129668

Unavailable

2

E Module | Includes 10n to 10at

518327567

$469.99

2a

RH Member

518326795

$284.99

2b

LH Member

518326796

$229.99

3

Front Member

518326198

$64.99

4

Stavex Rivet

293150144

$0.82

5

Hemlock Rivet 6.5 mm

293150120

$7.41

6

Hemlock Rivet, 6.5 mm

293150119

$4.29

7

Leg Bushing

505072690

$12.49

8

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

RH Reinforcement

518324874

$27.99

13

LH Reinforcement

518324875

$27.99

14

RH Deflector, Black Polypropylene

518325782

$13.99

15

LH Deflector, Black Polypropylene

518325783

$13.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

18

RH Bracket | Sport

518328787

$79.99

19

LH Bracket | Sport

518328788

$79.99

20

Stavex Rivet

293150144

$0.82

21

RH Rear Base

518325973

$21.99

22

LH Rear Base | Includes 10v to 10x

518325974

$21.99

23

RH ROLLER - Call your local BRP dealership

518325377

$69.99

24

LH Roller

518325378

$76.99

25

RH SEAL - Call your local BRP dealership

518325653

Unavailable

26

LH SEAL - Call your local BRP dealership

518325654

Unavailable

27

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

28

Front Radiator | Includes 10b to 10b2

518326485

$444.99

29

Clinch Stud M6 X 20

250300027

$2.09

30

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$783.99

31

Stavex Rivet

293150144

$0.82

32

Rear Cap

518327105

$22.49

33

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

36

Full Moon Dart 5 mm

293730042

$2.21

37

Insert M5 X 0.8

293450268

$2.09

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.30

C

Avex Rivet

390909100

$0.30

D

Stavex Rivet

293150144

$0.82

E

Henrob Rivet

293150146

$2.09

F

Hemlock Rivet, 6.4 mm

293150174

$7.86

G

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

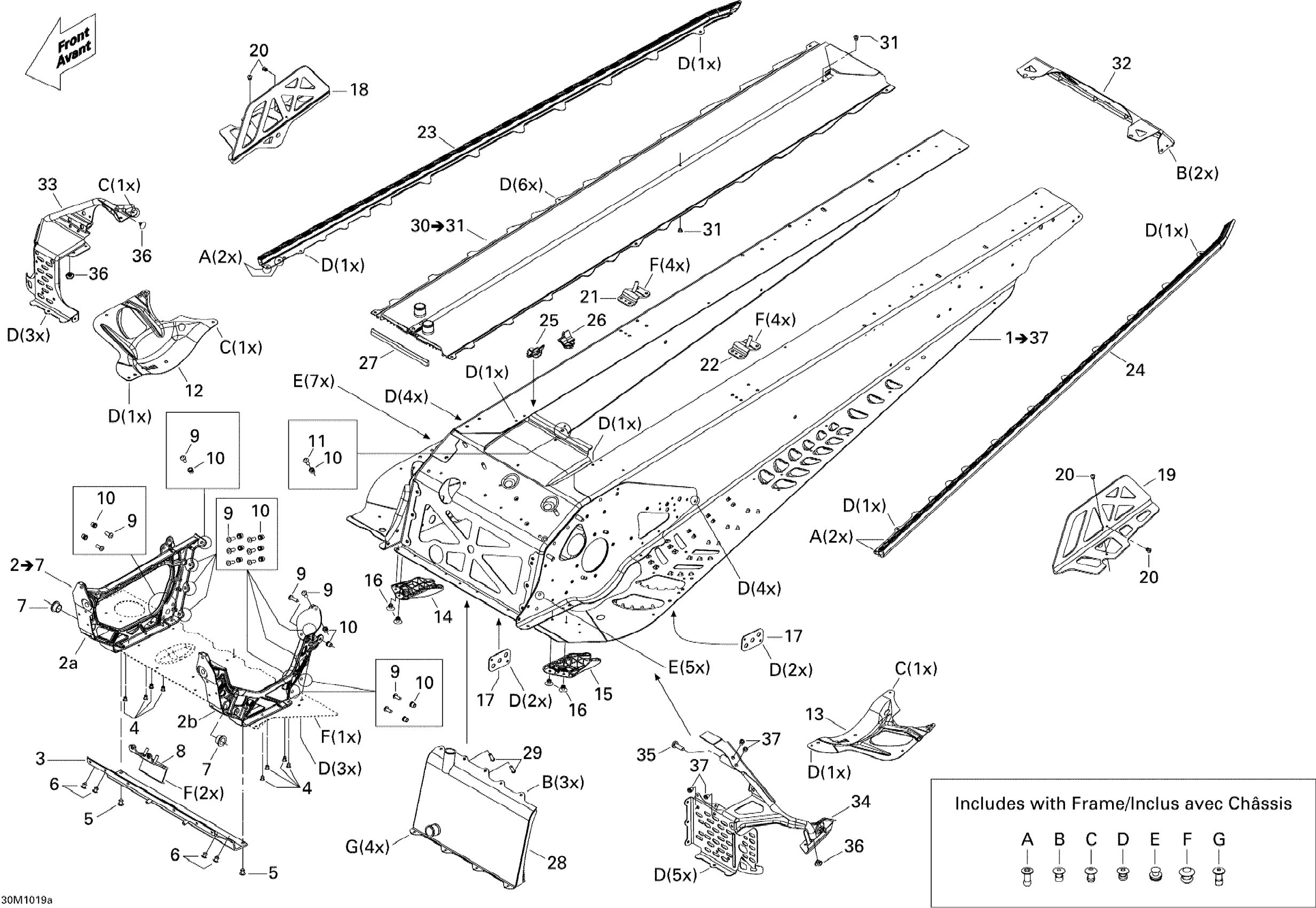

Ski-Doo Grand-Touring LE 600HO ETEC, 2010 09- Frame 1, LE 600HO ETEC Diagram
