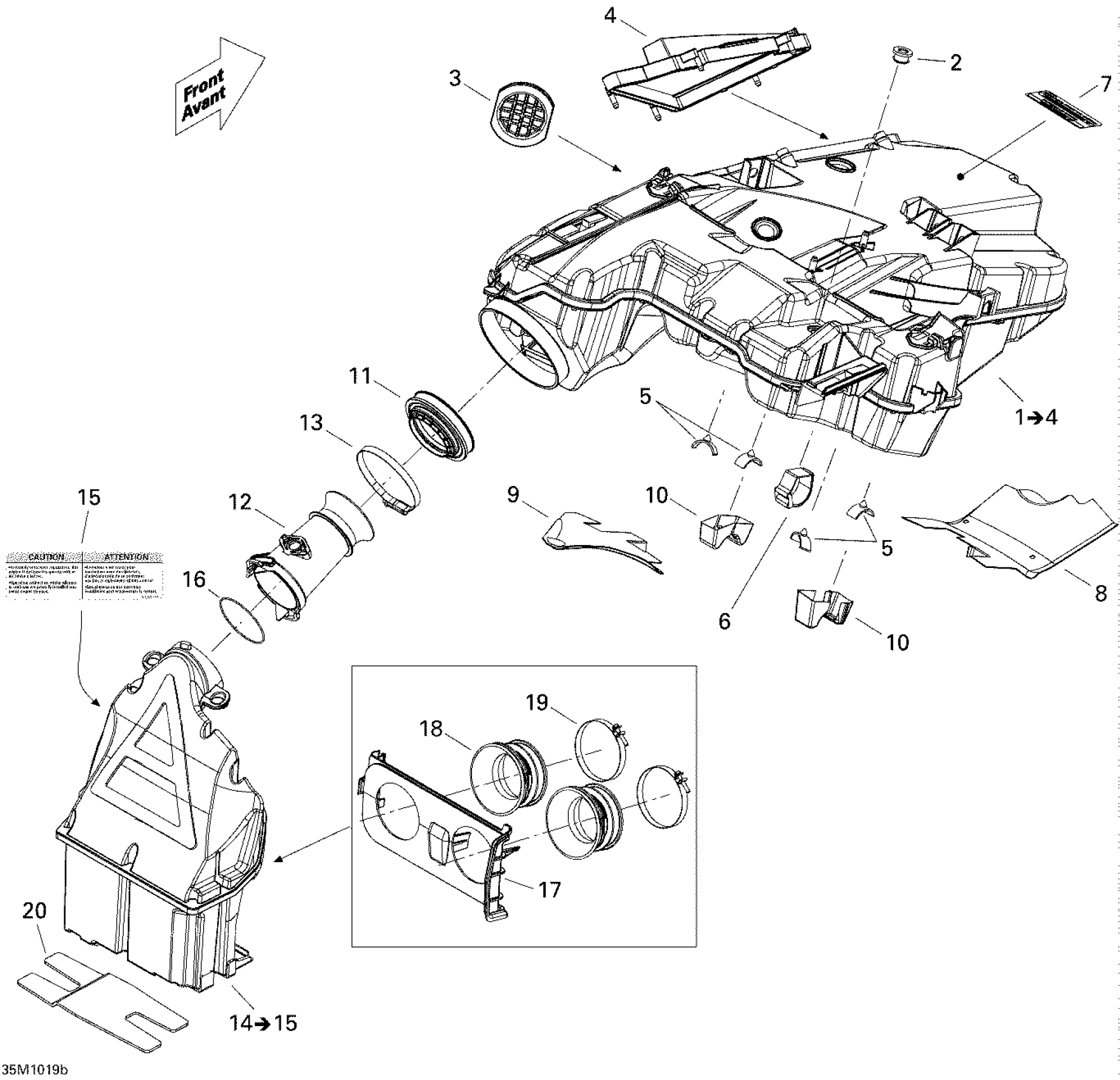

Ski-Doo Grand-Touring LE 600HO ETEC, 2010 Air Intake System 600HO ETEC Diagram

#

Description
Price

1

SECONDARY CHAMBER ASS'Y - Call your local BRP dealership

508000779

Unavailable

2

Grommet

508000574

$7.13

3

Cap

508000590

$17.13

4

Air Filter

508000546

$36.54

5

Stopper

508000537

$7.13

6

Velcro Strip

508000820

$7.13

7

WARNING DECAL, HOT PARTS - Call your local BRP dealership

516002965

Unavailable

8

Heat Shield

508000675

$9.07

9

Heat Shield

508000676

$9.07

10

Heat Shield

508000677

$7.13

11

Boot

508000548

$22.36

12

Flute

508000662

$13.24

13

Norma Gear Clamp

514052983

$14.90

14

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$79.07

15

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership

516003371

Unavailable

16

O'RING - Call your local BRP dealership

293300140

Unavailable

17

Plate Adapter

508000613

$17.88

18

Air Intake Adapter

508000614

$17.88

19

Gemi Clamp

508000346

$9.03

20

Insulated Foam

508000674

$12.21
