Description

Price

12

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

13

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

14

Hex. Screw M8 X 90

207089044

$3.48

15

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

17

Hex. Flange Screw M6 X 25

207562544

$1.69

18

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

20

Hex. Nut M10 X 1.5

232006414

$1.37

21

Hex. Flange Screw M6 X 25

207562544

$1.69

23

Not Available As Spare Parts

XXX

Unavailable

25

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

26

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

28

Bonded Washer

250200100

$2.11

31

Rolled Pin M3 X 10

250400010

$1.90

33

Spring Pin M5 X 16

250400045

$4.55

34

Dowel Pin

250400048

$2.11

35

Hex. Countersunk Drain Plug

250500013

$7.89

39

Oil Seal

293200158

$14.22

40

O-Ring

293300122

$2.11

41

Tight Seal

293300130

$7.51

42

Ball Bearing

293350115

$12.11

45

Ball Bearing

293350059

$30.99

46

Needle Bearing

293350063

$23.99

47

Needle Bearing

293350064

$23.49

48

Not Available As Spare Parts

XXX

Unavailable

49

Circlip

293370054

$8.11

50

Circlip

293370055

$8.11

53

Not Available As Spare Parts

XXX

Unavailable

56

Tie-Rap 180 mm

414115200

$0.11

62

O-Ring

414484400

$7.51

63

Spring Clamp

414554800

$0.88

64

Male Connector

414580700

$4.12

69

Spacer

504077300

$6.95

70

Ring

504078700

$20.99

72

Washer

504082900

$2.64

73

Reverse Shaft

504083100

$46.99

76

Circlip

504152282

$3.17

77

Track Guide | Track Width 16''

415129528

$3.29

78

Cleat

504152651

$9.69

79

Oil Seal

293200159

$16.25

80

Circlip

504152572

$6.95

81

Circlip

504152576

$9.99

82

Circlip

504152582

$9.99

83

Kit Sprocket This part replaces 504152581.

861805539

$159.99

83

Kit Sprocket This part replaces 504152593.

861805538

$164.99

84

Adjustment Screw

504152602

$12.49

86

Magnetic Cap

504152619

$23.49

87

Magnetic Cap

504152619

$23.49

89

Drive Chain, 104 Links

504152629

$179.99

89

Drive Chain, 106 Links

504152630

$179.99

91

Magnetic Plug 1/8 - 27 NPTF

504152854

$11.49

93

Washer

504152689

$7.65

94

Double Ball Joint

504152710

$50.99

97

Sprocket, 29 Teeth

504152724

$179.99

99

Chaine Tensionner

504153431

$15.99

100

Double Ball Joint

504152710

$50.99

105

Not Available As Spare Parts

XXX

Unavailable

106

Lever

504153427

$29.99

108

Track Ass'y 15X137X1.0

504152755

$849.99

108

Track Ass'y, 16X137X1.2RS | Includes 3200 to 3200b

504152734

$899.99

109

Tensioner Axle

504152841

$16.34

110

Cap

504152860

$20.49

112

Washer

504152862

$10.33

113

Drive Axle Ass'y

504154054

$529.99

124

Rotation Sensor

504152896

$37.99

126

Protector Tube

504153074

$14.49

129

Not Available As Spare Parts

XXX

Unavailable

132

Not Available As Spare Parts

XXX

Unavailable

133

Retaining Ring

504153886

$21.99

135

Ball Joint

504152951

$46.49

136

Fork Ass'y

504153432

$37.99

138

Welded Axle Fork

504152956

$29.99

140

Slinding Gear, 27 Teeth

504152960

$103.99

141

Sprocket, 24 Teeth | Engine 900 ACE

504152961

$137.49

143

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

145

Coupling

504152979

$73.99

148

Not Available As Spare Parts

XXX

Unavailable

149

Slider Chain

504152739

$65.99

163

Chain Slider

504153122

$16.99

165

Black Chaincase Cover Ass'y | Includes 1700 to 1700a

504153412

$339.99

172

Grip

504153082

$33.99

175

Spring Release

504153178

$9.39

177

Chaincase | Includes 10 to 10b

504153407

$339.99

178

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

186

Polyurethane Hose 10000Mm Long

219704410

$56.99

190

Alignement Rod

570048600

$15.99

191

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

212

Hex. Flange Screw M6 X 20

207662034

$2.11

214

Flange Elastic Nut M6

233261434

$4.44

322

Plate | Not Shown

518325816

$79.99

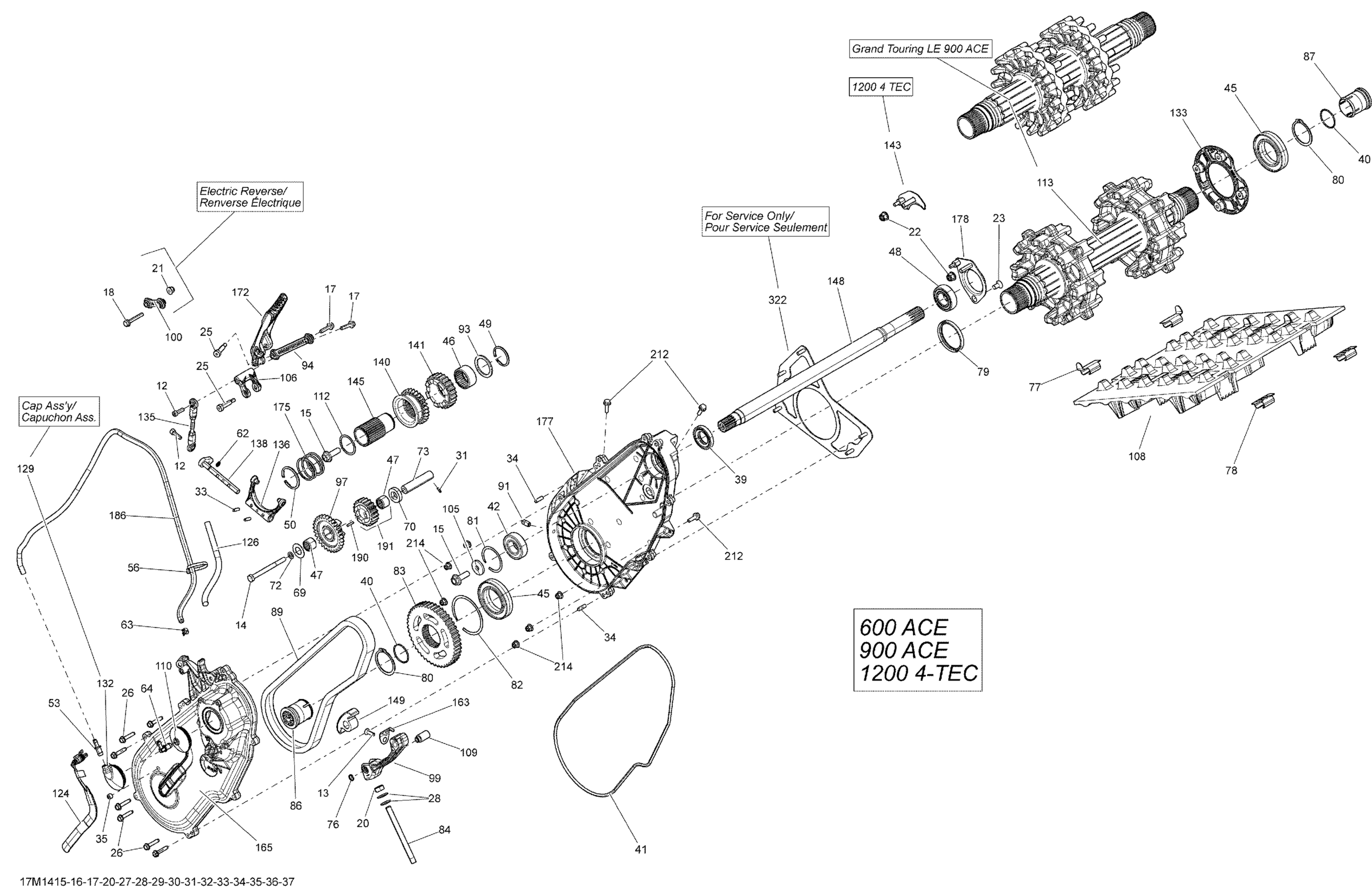

Ski-Doo GRAND TOURING LE 12004TEC XR, 2014 05- Drive System Diagram
