Description

Price

1

Socket Head Screw M4X 10

205041060

$2.00

2

Socket Head Screw M4 X 12

205041254

$1.96

3

Socket Screw M8 X 25

205082554

$2.00

4

Socket Head Screw M10 X 35

205503554

$7.09

5

Socket Head Screw M12 X 35

205523554

$4.15

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

7

Hex. Cap Screw M10 X 60

207006056

$7.09

8

Hex. Screw M8 X 55

207085544

$1.57

9

Cap Screw Hex. M10 X 40

207204056

$7.09

10

Hex. Flange Screw M5 X 25

207652544

$0.48

11

Hex. Flange Screw M6 X 25

207662556

$4.15

12

Hex. Flange Screw M6 X 70

207667056

$4.15

13

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

14

Hex. Flange Screw M8 X 40

207684044

$1.43

15

Phillips Screw M6 X 25

208562531

$2.00

16

Hex Screw M10 x 100

230100054

$6.07

17

Hexagonal Nut M6

232061404

$0.31

19

Elastic Stop Nut M5

232551414

$0.82

20

Elastic Stop Nut M6

232561434

$1.78

21

Flange Elastic Nut M5

233251434

$1.91

22

Hex. Flange Elastic Nut M6

233261466

$1.91

23

Elastic Flange Nut M8

233281466

$0.96

24

Elastic Locking Nut M10 X 1.5

233601416

$1.63

25

Elastic Locking Nut M10

233601466

$2.00

26

Flat Washer 8 mm

234082410

$1.27

27

Hex. Cap Screw M12 X 35

250000537

$3.01

28

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.15

29

Flat Washer 8 mm

250200128

$2.00

30

Washer

250200140

$0.96

31

Flat Washer

250200143

$3.01

32

Pop Rivet 3/16"

293150013

$1.27

33

Rivet 3/16"

293150102

$0.69

34

E-Circlip

293370013

$0.60

35

Retaining Ring

293370080

$2.06

37

Tridon Clamp

293650064

$7.57

38

Avex Rivet

390909200

$0.28

39

Grease Fitting

408200700

$3.21

40

Tie-Rap 180 mm

414115200

$0.10

41

Retaining Ring

415129371

$8.66

42

Retaining Ring

415129780

$13.46

43

Urethane Bushing

503189117

$6.67

44

Axle Spring

503189146

$7.31

45

Pivot Arm Axle

503189156

$20.12

46

Bushing

503189271

$10.15

47

Washer

503189276

$3.10

48

Bushing | Includes 240d to 240d1

503189282

$4.06

49

Ball Bearing | Package-STD

503190396

$8.18

50

Rear Wheel Spacer

503190428

$5.88

51

Rear Axle

503190429

$58.18

52

Spacer

503196317

$14.90

53

Washer

503190432

$12.15

54

Labyrinth Seal

503190434

$4.16

55

Rubber Stopper

503190576

$9.93

56

Axle Bar (Long)

503190643

$14.90

57

Washer

503190656

$2.82

58

Labyrinth Seal

503190682

$5.67

59

Axle

503190698

$17.13

60

Spring Support Kit

861805547

$7.90

61

Spring Support Kit

861805547

$7.90

62

Center Bushing

503191259

$8.70

63

Axle Strap

503191260

$28.33

64

Washer

503191273

$1.03

65

Bushing

503191554

$5.70

66

Swivel Bushing

503191555

$5.54

67

LH Cam Adjuster

503191565

$13.54

68

RH Cam Adjuster

503191566

$13.54

69

Full Moon Wheel Ass'y, 147 mm

503191624

$44.75

70

Full Moon Wheel Ass'y, 180 mm

503191627

$48.48

71

Cushion

503191640

$5.54

72

Wheel Cup M6

503191820

$4.52

73

Washer

503191910

$2.18

74

Washer

503191926

$1.52

75

Male Pneumatic Connector

503191939

$44.75

76

Rubber Damper

503191940

$8.46

77

Lower Axle

503191966

$14.90

78

Ball Bearing

503193548

$16.39

79

Bolt M8 X 248mm

503192440

$29.07

80

Washer

503192491

$4.25

81

Washer

503192494

$3.01

82

Washer

503192496

$0.73

83

Rocker

503192531

$76.09

84

Axle Bar

503192555

$11.06

85

Labyrinth Ring

503192592

$4.52

86

Axle Shock Absorber

503196509

$9.69

87

Air Hose Ass'y

503192652

$120.12

88

Spacer

503196943

$7.36

89

Guide Block

503192749

$5.67

90

Rubber Stopper

503192750

$12.27

91

Bushing

503192767

$14.81

92

Black, Wheel Cap

503192771

$2.21

93

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$114.90

94

LH Cam Block

503192918

$12.27

95

RH Cam Block

503192919

$12.27

96

O-Ring

503192921

$2.18

97

Lower Shaft

503192981

$17.13

98

Link Rod

503193005

$26.09

99

Bushing

503193037

$14.90

100

Link Rod

503193058

$17.88

101

Axle Bar

503193063

$36.54

102

Spacer

503193064

$8.48

103

Rubber Stopper Ass'y

503195523

$5.09

104

Bolt M10 X 251MM

503193227

$15.64

105

Spacer

503193250

$13.54

106

Screw M8 X 90

503193372

$4.15

107

Black, Slider Shoe 137"

503193449

$26.84

108

Black Wheel Ass'y 165 mm | Included 3070 to 3070b

503193451

$48.48

109

PRESSURE COLLECTOR SUPPORT - Call your local BRP dealership

503193466

Unavailable

110

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership

503193492

Unavailable

111

Screw M8 X 120, 10.9

503193499

$3.19

112

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$258.18

113

LH Protector

503193724

$34.30

114

RH Protector

503193725

$34.30

115

Casted Support

503193894

$12.37

116

Front Arm Ass'Y | Included 2000 to 2000h

503193971

$429.82

117

Runner 137"

503194037

Unavailable

118

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

119

Leg Cushion

505072663

$7.18

120

Male Terminal Housing, 2 Circuits

515175654

$7.25

121

Runner Decal

516004755

$8.84

122

LH Block Sticker Decal

516004900

$15.64

123

RH Block Sticker Decal

516004901

$15.64

124

Flat Washer

517225900

$0.16

125

AIR SUSPENSION BRACKET - Call your local BRP dealership

518328167

Unavailable

126

Protection Boot

570278300

$58.18

127

Reinforcement Stopper

572084800

$5.09

128

Connector

706000869

$32.06

128a

Male Terminal

515175232

$1.45

129

Check Valve

706000940

$34.30

130

Conical Spring Washer 10 mm

234201474

$1.60

131

Tensioner

503192583

$5.67

132

Hex. Cap Screw M6 X 30

207063054

$5.06

133

Stopper Strap

503192360

$19.37

134

Pivot Axle

503193435

$37.28

135

Flange Elastic Nut M10

233201466

$3.01

136

Pop Rivet 3/16"

390402200

$0.30

137

Black LH Spring, Square

503193539

$99.97

137

Black, RH Spring Square

503193538

$99.97

138

Link Ass'y | Includes 3100 to 3100f

503195985

$75.34

139

Central Shock

503193444

$152.96

140

Black, Spring (51mm) Short

503193837

$64.90

141

Spring Stopper

706200881

$11.82

142

Adjustment Cam

505073625

$11.82

143

Protector

503193663

$34.30

144

Spring Guide

503191872

$2.12

145

Deep Black, Spring (189mm) Long

503193160

$85.79

146

Spring Spacer

503191281

$7.43

147

Rear Shock Ass'y

503195281

$231.31

148

Rear Shock | Included 5500 to 5500m

503194926

$716.99

149

Compressor

706001349

$423.85

150

Hose 4.32Mm 3000Mm Long

219704415

$50.72

151

Tubing 6 Mm 3000Mm Long

219704425

$12.75

152

Norma Gear Clamp

293650090

$4.25

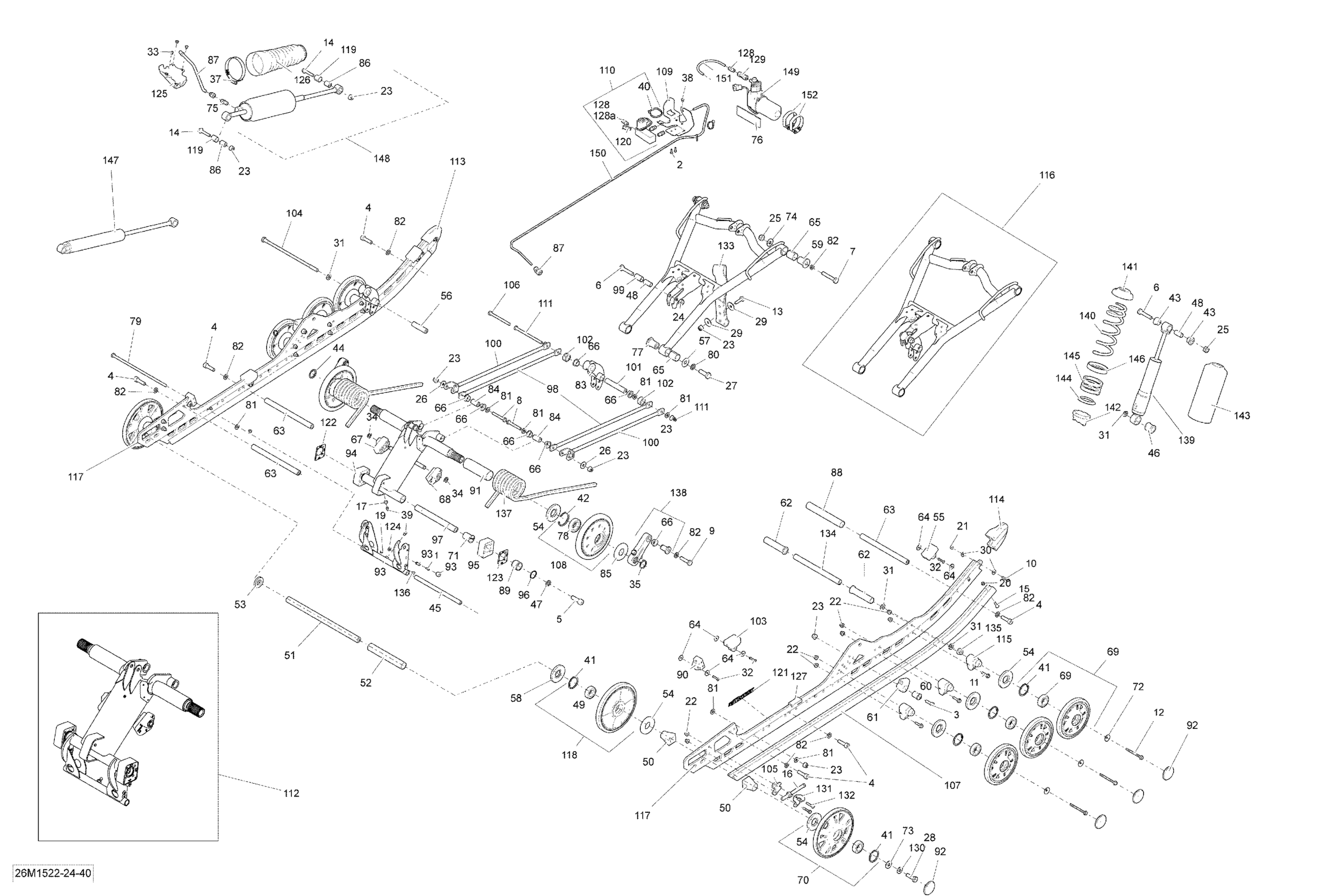

Ski-Doo Grand Touring LE 1200 XR137, 2015 Rear Suspension LE_26M1522 Diagram
