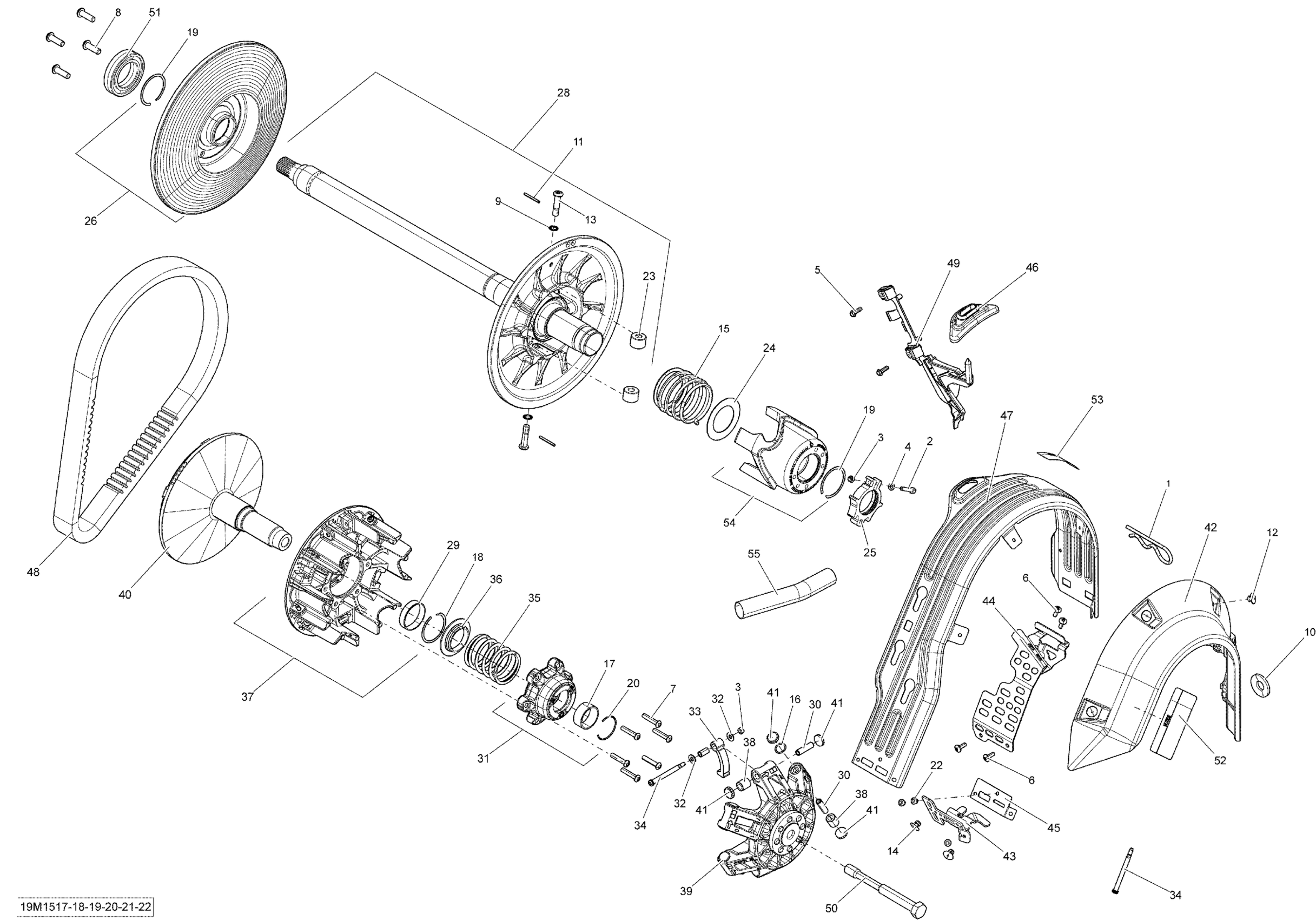

Ski-Doo Grand Touring LE 1200 XR137, 2015 Pulley System _19M1522 Diagram

#

Description
Price

1

Hair Pin

114045200

$10.69

2

Socket Screw M5 X 25

205052544

$1.34

3

Elastic Stop Nut M5

232551414

$0.72

4

Flat Washer M5

234051410

$0.44

5

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

6

Torx Screw M5 X 14

250000742

$1.20

7

Torx Screw M6 X 30

250000580

$5.02

8

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

9

Lock Washer 8 mm

250200009

$2.06

10

Conical Spring Washer M14

250200144

$3.63

11

Spring Pin M3 X 30

250400063

$1.74

12

Pop Rivet 3/16"

293150103

$0.54

13

Pivot Stud

417127294

$13.58

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

15

Release Spring

417127467

$44.58

16

O-Ring

293300185

$0.95

17

Not Available As Spare Parts

XXX

Unavailable

18

Circlip

293370037

$3.02

19

Circlip

293370049

$4.71

20

Circlip

293370065

$0.95

22

Avex Rivet

390909200

$0.29

23

Pulley Roller

417127016

$23.05

24

Washer

417127155

$8.03

25

Calibration Ass'y

415129604

$22.49

26

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

27

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

28

Fix Flange Ass'y | Includes 101 to 101e

417127362

$456.89

29

Bushing

417222758

$20.74

30

Roller Axle

417223257

$7.74

31

Spring Cover Ass'y

417223650

$39.97

32

Stopper Washer

417223660

$3.11

33

Rampe 735

417223679

$32.28

34

Ramp Axle

417223694

$4.60

35

Clutch Spring

417224084

$12.31

36

Seat Spring

417223752

$13.43

37

Flange Slide Ass'y

417224044

$198.43

38

Roller

417223767

$7.37

39

Governor Cup Ass'y

417223865

$179.97

40

Fixed Flange Ass'y

417224091

$179.97

41

Slider Shoe

417223919

$3.68

42

Side Protector

417300356

$13.25

43

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$10.86

44

BELT GUARD BRACKET - Call your local BRP dealership

417300361

Unavailable

45

Reinforcement

417300380

$5.17

46

Guide

417300381

$9.23

47

Belt Guard

417300382

$85.35

48

Drive Belt

417300551

$170.99

49

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

50

Pulley Drive Bolt

417300432

$42.99

51

Ball Bearing

504152574

$34.58

52

Decal English

516005503

Unavailable

53

Safety Belt Guard Decal

516005509

Unavailable

54

Cam Ass'y | Includes 100c to 100c3

417127476

$144.99

55

PROTECTOR TUBE 25 MM - 210 MM - Call your local BRP dealership

219702532

Unavailable
