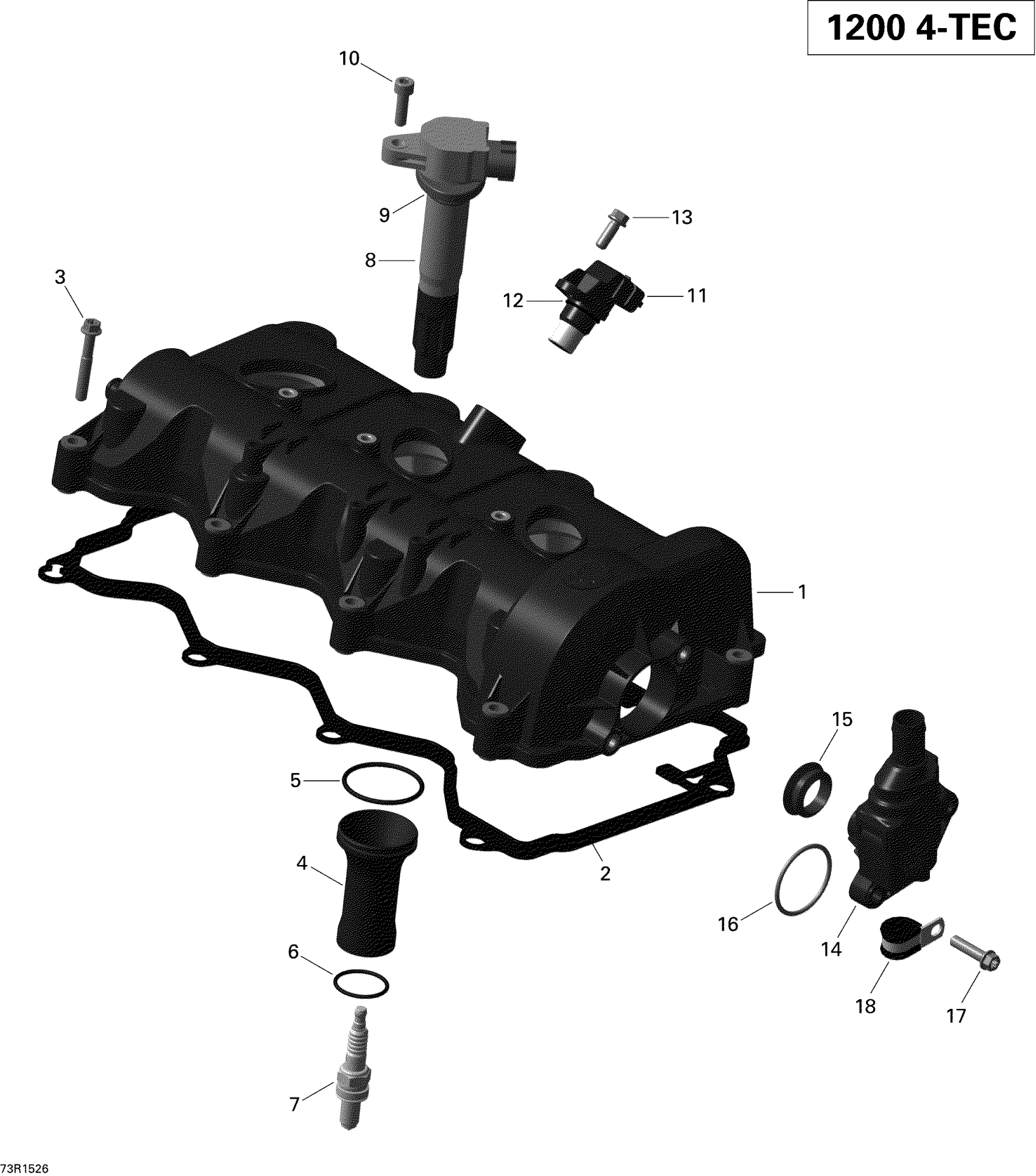

Ski-Doo Grand Touring LE 1200 XR137, 2015 01- Valve Cover _73R1526 Diagram

Valve Cover Ass'y | Includes 1 to 2

420611857

$169.49

Gasket

420431041

$20.49

Torx Flange Screw M6 X 40

420440282

$3.17

Spark Plug Pipe Ass'y | Includes 4 to 6

420460585

$6.39

O-Ring

420431740

$14.22

O-Ring

420631611

$10.33

Spark Plug NGK CR8EKB

415129429

$14.83

Stick Coil | Includes 8 to 9 This part replaces 420665810.

420665811

$164.49

PROTECTION CAP - Call your local BRP dealership

420201435

$17.49

Socket Head Screw M6 X 20

205062044

$1.26

Camshaft Position Sensor Ass'y

420664046

$88.99

O-Ring

420631890

$5.18

Torx Flange Screw M6 X 16

420440162

$3.17

Vent Valve Ass'y | Includes no. 39-41

420856506

$82.49

V-Ring 20S FPM Blow By Valve

420630125

$11.63

O-Ring

420950870

$5.39

Torx Flange Screw M6 X 25

420440234

$3.06

Cable Clamp

420851492

$14.28
