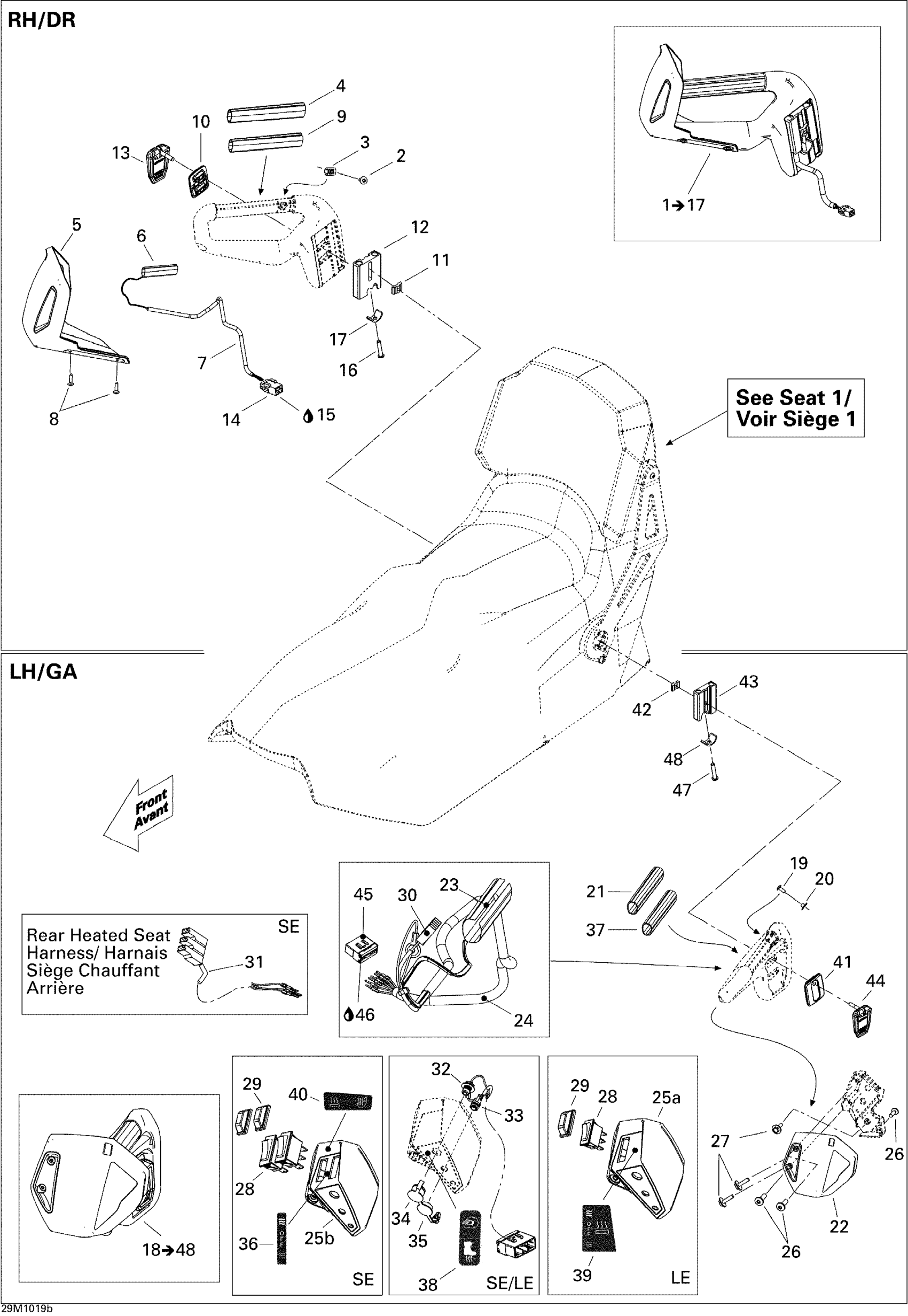

Ski-Doo Grand-Touring LE 1200, 2010 Seat 2, LE Diagram

#

Description
Price

1

RH HANDLE ASS'Y - Call your local BRP dealership | Includes 140 to 140,051

510005854

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.60

3

Nut Welded, M6

293100003

$7.25

4

Handle Grip

510004449

$10.33

5

RH Air Deflector

510005009

$26.84

6

Heated Element

515176999

$66.39

7

Was 515175506 Tubing

219704426

$132.06

8

Screw M4 X 16

250000725

$3.30

9

Handle Reinforcement

510005011

$17.88

10

Passenger Handle Trim

510006602

$11.36

11

Stopper Block

510004804

$17.88

12

HANDLE LINK - Call your local BRP dealership

510004798

$29.07

13

Lever Lock Ass'y

510004806

$29.07

14

Male Housing, 3 Circuits

515175494

$14.90

15

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

16

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

17

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

18

LH Handle Ass'y | Includes 150a to 150a16

510006709

$244.99

19

Torx Truss Screw M6 X 16

250000721

$1.60

20

Nut Welded, M6

293100003

$7.25

21

Handle Grip

510004449

$10.33

22

LH Air Deflector

510005010

$26.84

23

Heated Element

515176999

$66.39

24

Was 515175506 Tubing

219704426

$132.06

25a

Switch Housing

510005036

$17.13

25b

Not Available As Spare Parts

XXX

Unavailable

26

Torx Screw K50 X 16

250000720

$1.60

27

Screw M4 X 16

250000725

$3.30

28

Rocker Switch

510004413

$8.31

29

Switch Protector

510004414

$7.15

30

Handle Harness

515176697

$27.58

31

Not Available As Spare Parts

XXX

Unavailable

32

Visor Connector Harness

515176698

$27.58

33

WIRING HARNESS_HEATED SOLE - Call your local BRP dealership

515177018

$24.60

34

Cap

572103300

$9.36

35

Cap

510004950

$12.67

36

Not Available As Spare Parts

XXX

Unavailable

37

Handle Reinforcement

510005011

$17.88

38

VISOR AND LINER DECAL - Call your local BRP dealership

516003612

Unavailable

39

Heated Handle Decal

516003816

$10.04

40

Not Available As Spare Parts

XXX

Unavailable

41

Passenger Handle Trim

510006602

$11.36

42

Stopper Block

510004804

$17.88

43

HANDLE LINK - Call your local BRP dealership

510004798

$29.07

44

Lever Lock Ass'y

510004806

$29.07

45

Male Connector

515176033

$14.90

46

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

47

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

48

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable
