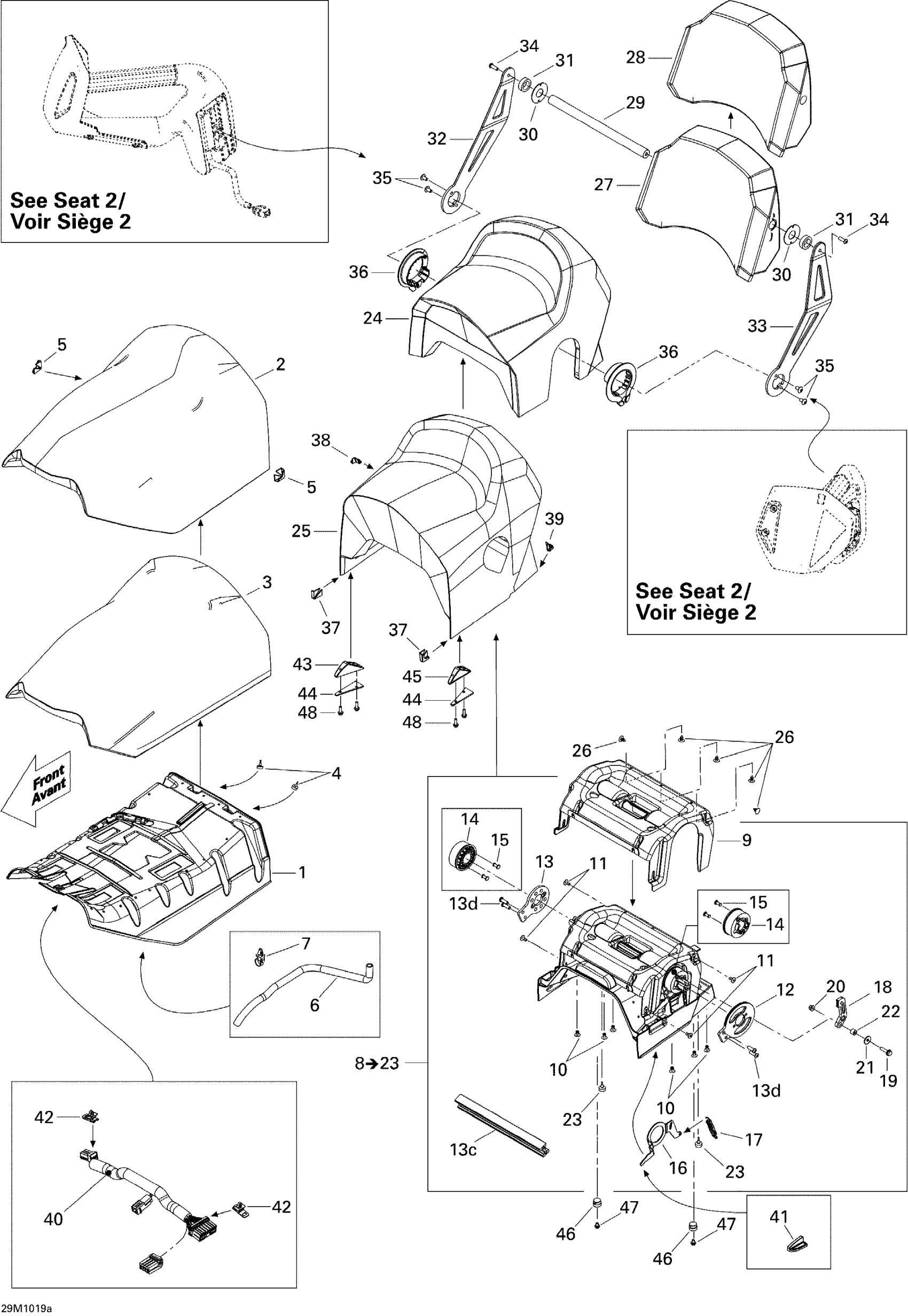

Ski-Doo Grand-Touring LE 1200, 2010 09- Seat 1, LE Diagram

#

Description
Price

1

Front Seat Base

510004775

$93.99

2

FRONT SEAT COVER - Call your local BRP dealership | LE

510005266

Unavailable

3

Front Seat Foam

510004777

$219.99

4

Rubber Stopper

708000759

$4.19

5

SEAT CORNER, RED - Call your local BRP dealership

510004971

Unavailable

5

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

6

Tubing 6 Mm 3000Mm Long

219704425

$13.75

7

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

8

REAR SEAT BASE ASS'Y - Call your local BRP dealership | Includes 6 to 24

510004779

Unavailable

9

Foam Support

510004423

$38.99

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

11

Pop Rivet 3/16"

293150100

$1.09

12

Sprocket

510004391

$29.99

13

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

13c

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

13d

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

14

SPACER - Call your local BRP dealership

510005425

Unavailable

15

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

16

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

17

Spring

514053643

$6.35

18

Adjustment Pivot

510006338

$22.49

19

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Flat Washer

224061201

$1.37

22

BUSHING - Call your local BRP dealership

510004425

Unavailable

23

Rubber Stopper

708000759

$4.19

24

Rear Seat Cover | LE

510005225

Unavailable

25

Rear Seat Foam

510004791

$294.99

26

Black, Dart

414644300

$0.98

27

Backrest Foam

510004782

$124.99

28

BACKREST COVER - Call your local BRP dealership

510005101

Unavailable

29

Upper Backrest Axle

510004377

$44.99

30

Washer

510004379

$10.01

31

Rubber Shim

510004378

$10.99

32

RH ARM, BLACK - Call your local BRP dealership

510004794

Unavailable

33

LH ARM, BLACK - Call your local BRP dealership

510004796

Unavailable

34

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

35

Torx Truss Screw M8 X 16

250000746

$3.38

36

SPACER - Call your local BRP dealership

510004966

Unavailable

37

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

38

RH REAR CORNER SEAT - Call your local BRP dealership

510004964

Unavailable

39

LH REAR CORNER SEAT - Call your local BRP dealership

510004965

Unavailable

40

Seat Harness

515176766

$40.99

41

GRIP - Call your local BRP dealership

510004419

Unavailable

42

Housing Support

515175283

$9.19

43

RH Seat Anchor

518325710

$37.99

44

SPACER - Call your local BRP dealership

510005216

Unavailable

45

LH Seat Anchor

518325709

$37.99

46

SEAT STUD - Call your local BRP dealership

510005095

$26.99

47

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

48

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11
