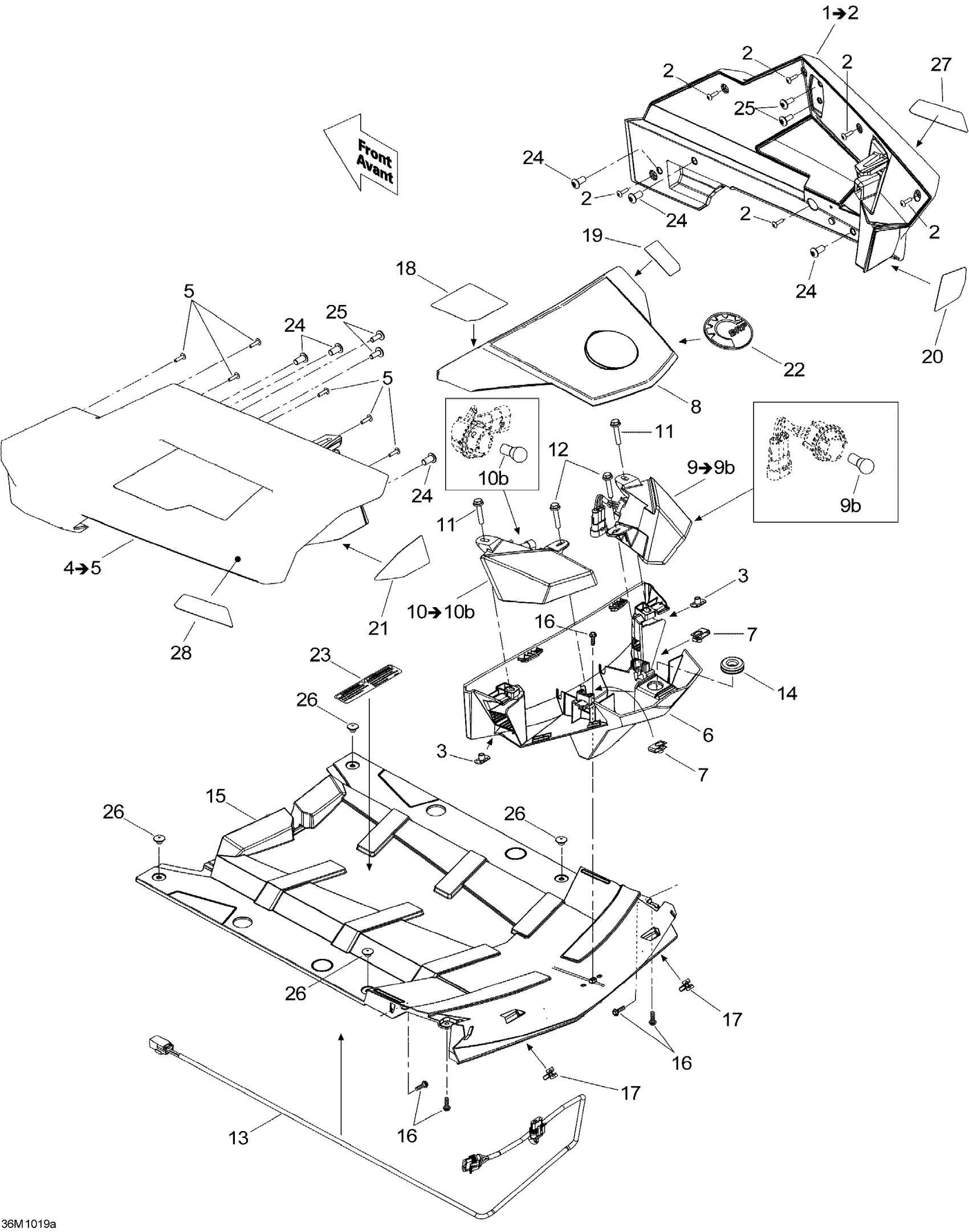

Ski-Doo Grand-Touring LE 1200, 2010 09- Luggage Rack 1 Diagram

#

Description
Price

1

RH Arm Ass'y

511000631

$91.99

2

Torx-Truss Pt K40 X 16

250000759

$2.11

3

Nut Welded, M6

293100003

$9.12

4

LH Arm Ass'y

511000632

$91.99

5

Torx-Truss Pt K40 X 16

250000759

$2.11

6

Rack Ass'y

511000530

$72.99

7

Panel Nut M6 X 1.0

250100198

$2.11

8

Cover

511000545

$77.99

9

RH Tail Light Ass'y

515176849

$59.49

9b

Bulb

520000758

$9.10

10

LH Tail Light Ass'y

515176850

$59.49

10b

Bulb

520000758

$9.10

11

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

12

Hex. Flange Screw M6 X 25

207662554

$1.48

13

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

14

Grommet

517303756

$4.09

15

Radiator Cover

511000861

$52.99

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

17

Edge Clip

517302785

$0.88

18

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

19

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

20

Red RH Rear Reflector

520000731

$15.99

21

Red LH Rear Reflector

520000732

$16.99

22

BRP Logo 68mm

516008739

$16.99

23

WARNING DECAL, SECURITY - Call your local BRP dealership

516004587

Unavailable

24

Torx Screw M8 X 16

250000751

$6.11

25

Torx Truss Screw M6 X 16

250000721

$1.69

26

Pop Rivet 3/16"

293150103

$0.55

27

Red RH Rear Reflector

520000729

$15.99

28

RED LH REAR REFLECTOR - Call your local BRP dealership

520000730

Unavailable
