Partiron

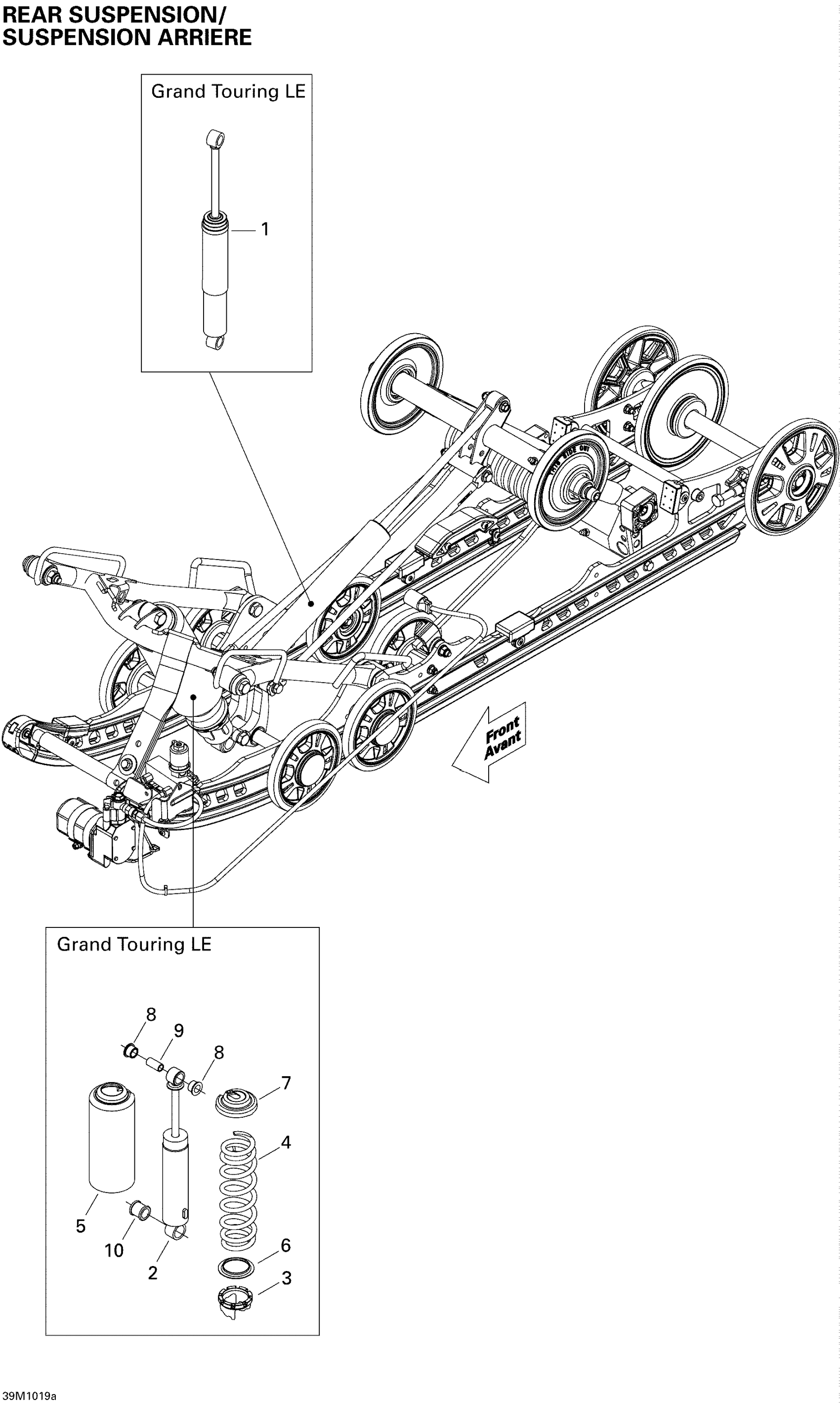

Ski-Doo Grand-Touring LE 1200, 2010 Rear Suspension Shocks 1, LE Diagram

#

Description
Price

1

Rear Shock HPG SEAL

503193192

$231.31

2

Center Shock

503191590

$152.96

3

Adjustment Cam

505073625

$11.82

4

Black, Spring

503191882

$58.18

5

Protector

503193663

$34.30

6

Spring Guide

503191872

$2.12

7

Spring Stopper

706200881

$11.82

8

Urethane Bushing

503189117

$6.67

9

Bushing | Includes 240d to 240d1

503189282

$4.06

10

Bushing

503189271

$10.15
