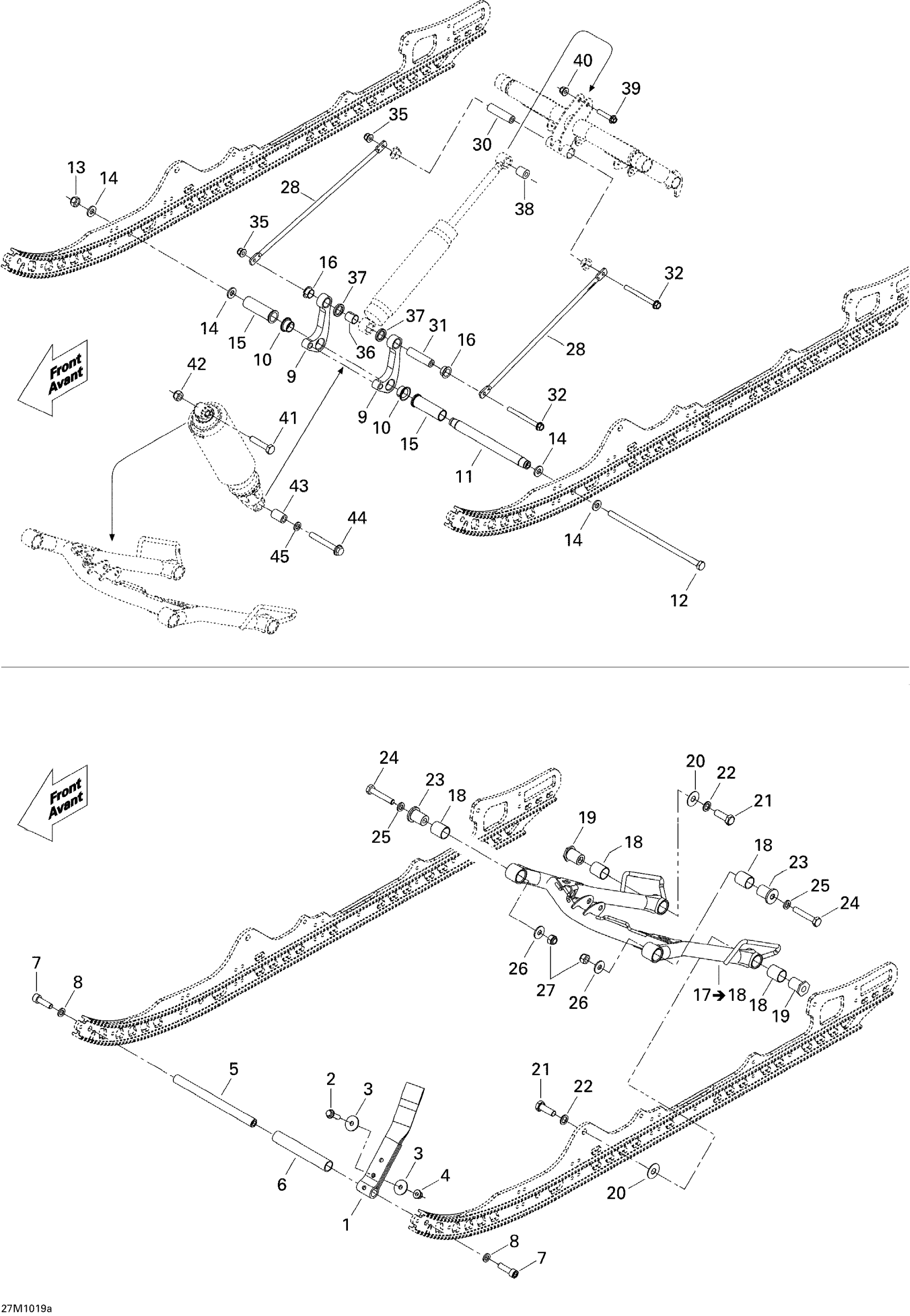

Ski-Doo Grand-Touring LE 1200, 2010 Front Arm 1, LE Diagram

#

Description
Price

1

Stopper Strap

503192360

$20.99

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

3

Flat Washer

224081301

$0.88

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Axle Strap

503191260

$30.99

6

Spacer

503191448

$11.99

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

Washer

503189564

$0.74

9

LH Rocker Arm

503191890

$62.49

9

RH Rocker Arm

503191894

$62.49

10

Bushing

503191552

$5.93

11

Center Shaft

503191764

$63.49

12

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$15.99

13

Elastic Locking Nut M10 X 1.5

233601416

$1.69

14

Washer

732900049

$0.58

15

Center Bushing

503191351

$8.29

16

Swivel Bushing

503191555

$7.83

17

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

18

Bushing

503191554

$6.14

19

Lower Axle

503191966

$15.89

20

Washer

503190656

$2.96

21

Hex. Cap Screw M12 X 35

250000537

$3.17

22

Washer

503189276

$3.28

23

Axle

503190698

$20.99

24

Hex. Cap Screw M10 X 60

207006056

$7.51

25

Washer

503191910

$2.32

26

Washer

503191910

$2.32

27

Elastic Locking Nut M10 X 1.5

233601416

$1.69

28

ROD-THROTTLE - Call your local BRP dealership

503191974

Unavailable

30

Axle Bar (Long)

503190643

$17.39

31

Axle Bar (Long)

503190643

$17.39

32

Hex. Flange Screw

207688544

$1.69

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Bushing

503191553

$5.93

37

Plastic Spacer

503190694

$2.11

38

Bushing

414936000

$13.99

39

Hex. Flange Screw M8 X 40

207684044

$1.48

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

42

Elastic Stop Nut M10

232500416

$1.90

43

Central Shock Axle

503190604

$14.15

44

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

45

Washer

503189564

$0.74
