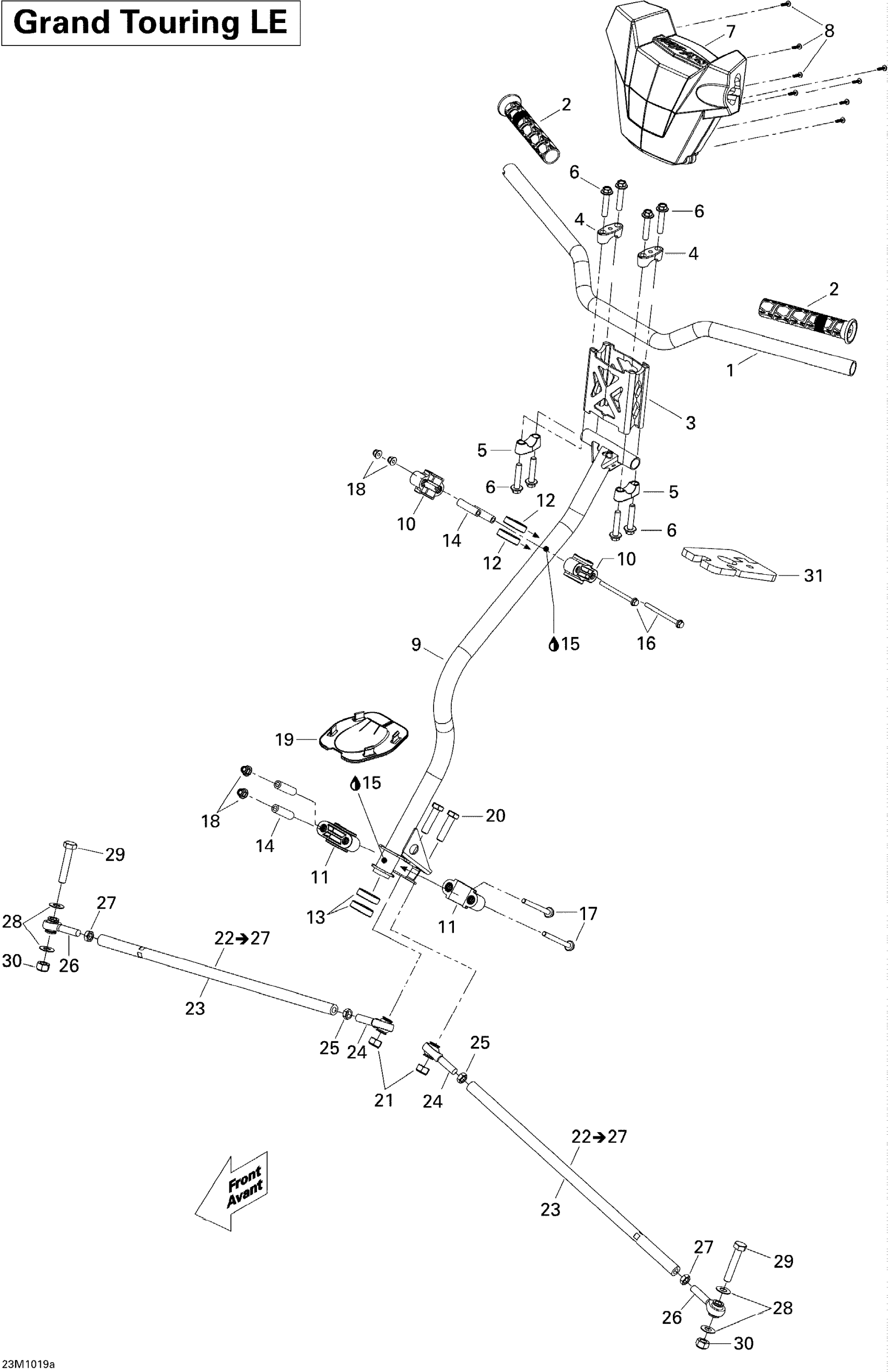

Ski-Doo Grand-Touring LE 1200, 2010 Steering LE Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Handle Grip

506152424

$13.78

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

4

Steering Support | Includes 40 to 40a

506152751

$10.09

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 X 40

250000352

$3.26

7

STEERING PAD (ADJUSTABLE) - Call your local BRP dealership This part replaces 506152307.

506152679

Unavailable

8

Screw PT Type K-50 X 16

250000959

$1.74

9

Steering Column

506152964

$189.20

10

Upper Half Housing

506152219

$1.68

11

Lower Half-Housing

506152217

$5.57

12

Upper Vibration Ring

506152292

$0.72

13

Lower Vibration Ring

506152518

$4.52

14

Housing Bushing

506152297

$10.23

15

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

16

Hex. Flange Screw M6 X 70

207667056

$3.61

17

Hex. Flange Screw M6 X 70

207667044

$0.70

18

Elastic Flange Nut M6 X 1.0

233261416

$1.74

19

Plate

506152163

$10.23

20

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

21

Elastic Stop Nut M10

232500416

$1.56

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Tie-Rod Ass'y

506152496

$59.97

24

LH Thread Ball Joint

506152081

$39.97

25

LH Threaded Hex. Jam Nut M10

250100016

$0.72

26

RH Threaded Ball Joint

506152019

$39.97

27

RH Threaded Hex. Jam Nut M10

732610010

$0.72

28

Washer

506152194

$4.42

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Elastic Stop Nut M10

232500416

$1.56

31

Bushing

506152521

$13.60
