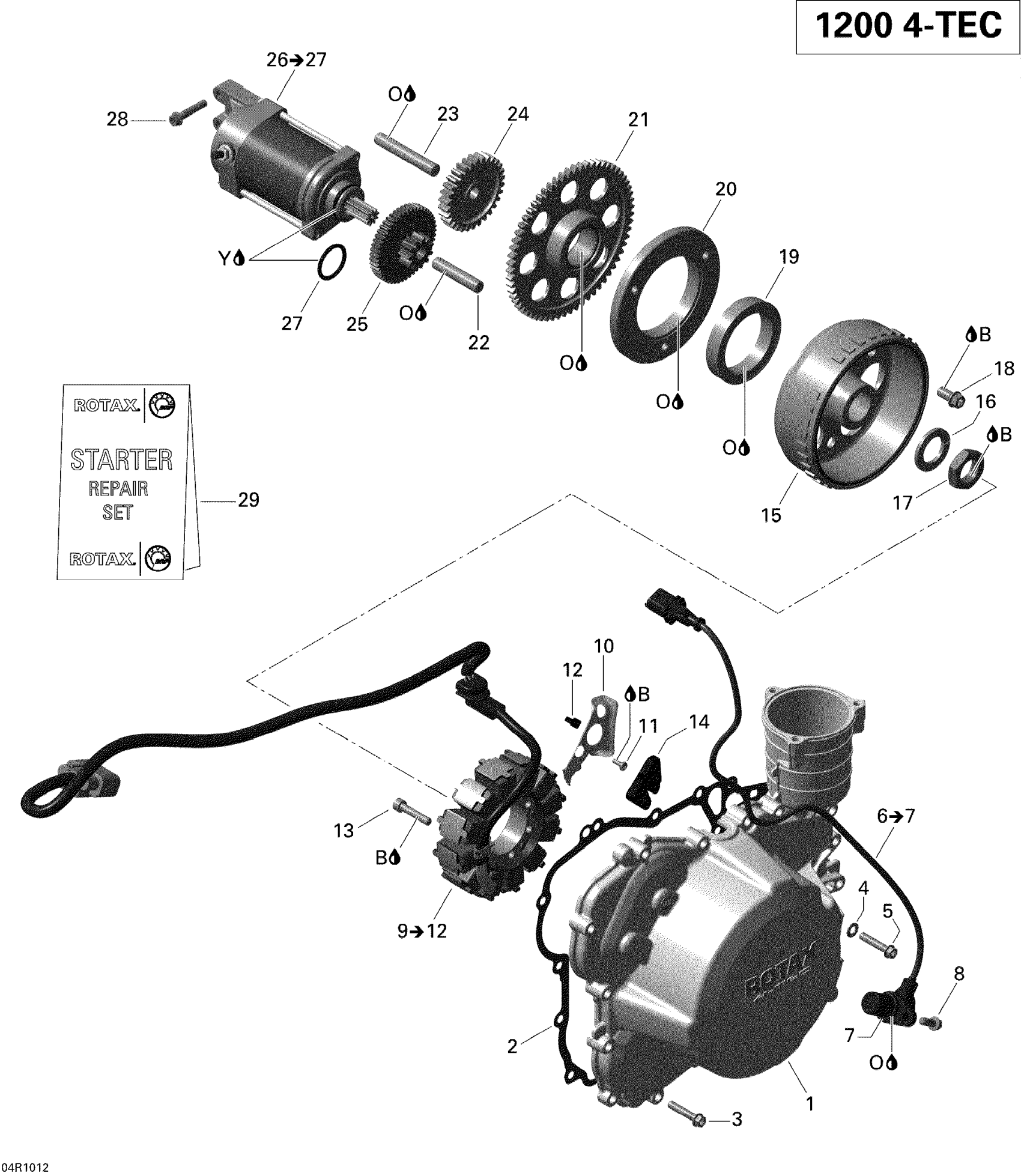

Ski-Doo Grand-Touring LE 1200, 2010 Magneto And Electric Starter Diagram

#

Description
Price

1

Cover

420611833

$176.84

2

Gasket

420430750

$18.63

3

Torx Flange Screw M6 X 30

420440647

$1.91

4

Sealing Washer

404146600

$0.72

5

Torx Flange Screw M6 X 30

420440647

$1.91

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

7

O-Ring

420431580

$14.10

8

Torx Flange Screw M6 X 16

420440162

$3.01

9

Stator Ass'y | Includes 8 to 11

420892378

$340.99

10

Cable Holder

420951192

$14.90

11

TORX SCREW 3.5 X 8 - Call your local BRP dealership

420640085

Unavailable

12

CLAMP - Call your local BRP dealership

420866717

Unavailable

13

Socket Head Screw M6 X 30

205063044

$1.63

14

Spacer

420860052

$9.03

15

Magneto Flywheel

420892361

$319.99

16

Lock Washer, 22 mm

420945759

$1.78

17

Hex. Nut, M22 X 1.5

420842239

$16.39

18

Torx Flange Screw M8 X 16

420440852

$3.88

19

Sprag Clutch

420659113

$235.79

20

Housing Sprag Clutch

420659266

$159.67

21

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$173.85

22

Location Pin 10 M6x50

420229302

$3.01

23

Needle Pin

420229475

$14.10

24

GEAR, 30 TEETH - Call your local BRP dealership

420634604

Unavailable

25

Starter Double Gear 11/49 T

420634741

$179.07

26

Starter Ass'y | Includes 25 to 26

420893531

$297.99

27

O-Ring

420250140

$8.09

28

Torx Flange Screw M6 X 30

420440647

$1.91

29

Carbon Brush Set This part replaces 420881140.

420881141

$61.91

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.10
