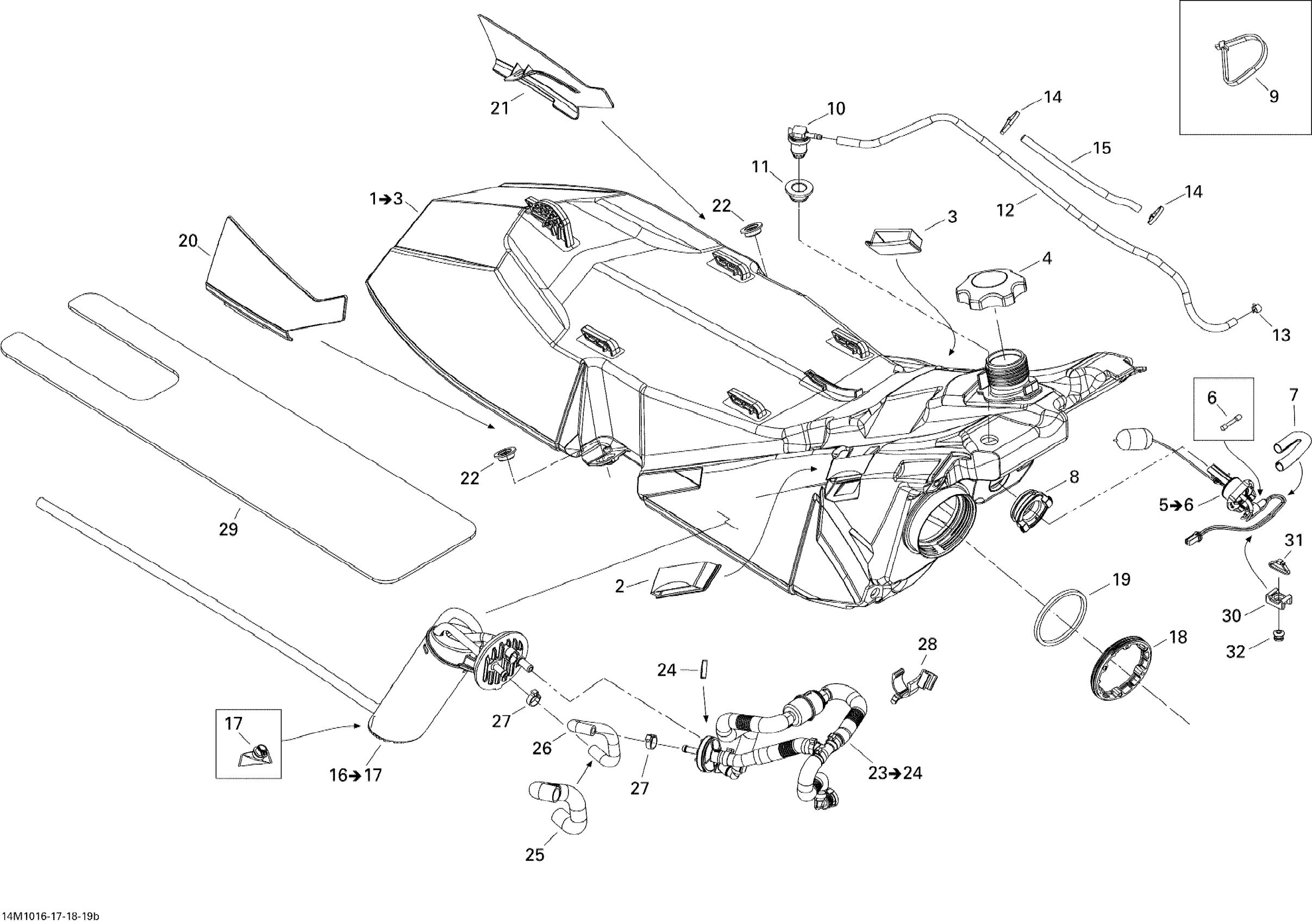

Ski-Doo Grand-Touring LE 1200, 2010 02- Fuel System 1200 Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1 to 3

513033578

Unavailable

2

RH Panel Clip

513033471

$7.19

3

LH Panel Clip

513033472

$5.99

4

Fuel Tank Cap

513033025

$24.49

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$109.99

6

Fuse, 0.5 Ampère

710001995

$8.32

7

Tubing 10 MM 1000MM Long

219704407

$2.79

8

Grommet

513033606

$21.99

9

Tie Wrap 368 mm

293750008

$1.04

10

Check Valve

513033842

$35.99

11

Grommet

513033596

$21.99

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Spring Clamp

414554800

$0.88

14

Tie-Rap 180 mm

414115200

$0.11

15

Protector Tube

504153074

$14.49

16

PUMP FUEL This part replaces 513033585.

513034262

$259.99

17

Fuel Filter

415129451

$25.99

18

Ring

513033180

$19.99

19

Gasket

513033334

$24.49

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Shoulder Bushing

513033326

$14.99

23

HOSE ASS'Y - Call your local BRP dealership

513033339

Unavailable

24

Locking Clip

513033135

$5.89

25

Tubing 16 Mm 1000Mm Long

219704408

$7.49

26

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

27

Crimp Clamp, 15.3-706R

293650047

$3.29

28

FILTER CLIP - Call your local BRP dealership

513033336

Unavailable

29

Insulating Foam

513033588

$14.99

30

Tie Rap Mount (screwable)

515176795

$5.39

31

Tie Wrap 142 mm

293750002

$1.25

32

Pop Rivet 3/16" | DS 650 X

390402000

$0.33
