Description

Price

1

Valve Cover Ass'y | Includes 1 to 2

420611856

Unavailable

2

Gasket

420431041

$20.49

3

Torx Flange Screw M6 X 40

420440282

$3.17

4

Spark Plug Pipe Ass'y | Includes 4 to 6

420460585

$6.39

5

O-Ring

420431740

$14.22

6

O-Ring

420631611

$10.33

7

Spark Plug NGK CR8EKB

415129429

$14.83

8

Stick Coil | Includes 8 to 9 This part replaces 420665810.

420665811

$164.49

9

Socket Head Screw M6 X 20

205062044

$1.26

10

Camshaft Position Sensor Ass'y

420664046

$88.99

11

O-Ring

420631890

$5.18

12

Torx Flange Screw M6 X 16

420440162

$3.17

13

Vent Valve Ass'y | Includes no. 39-41

420856506

$82.49

14

V-Ring 20S FPM Blow By Valve

420630125

$11.63

15

O-Ring

420950870

$5.39

16

Torx Flange Screw M6 X 25

420440234

$3.06

17

Cable Clamp

420851492

$14.28

O

Not Available As Spare Part - Friction Washer

Unavailable

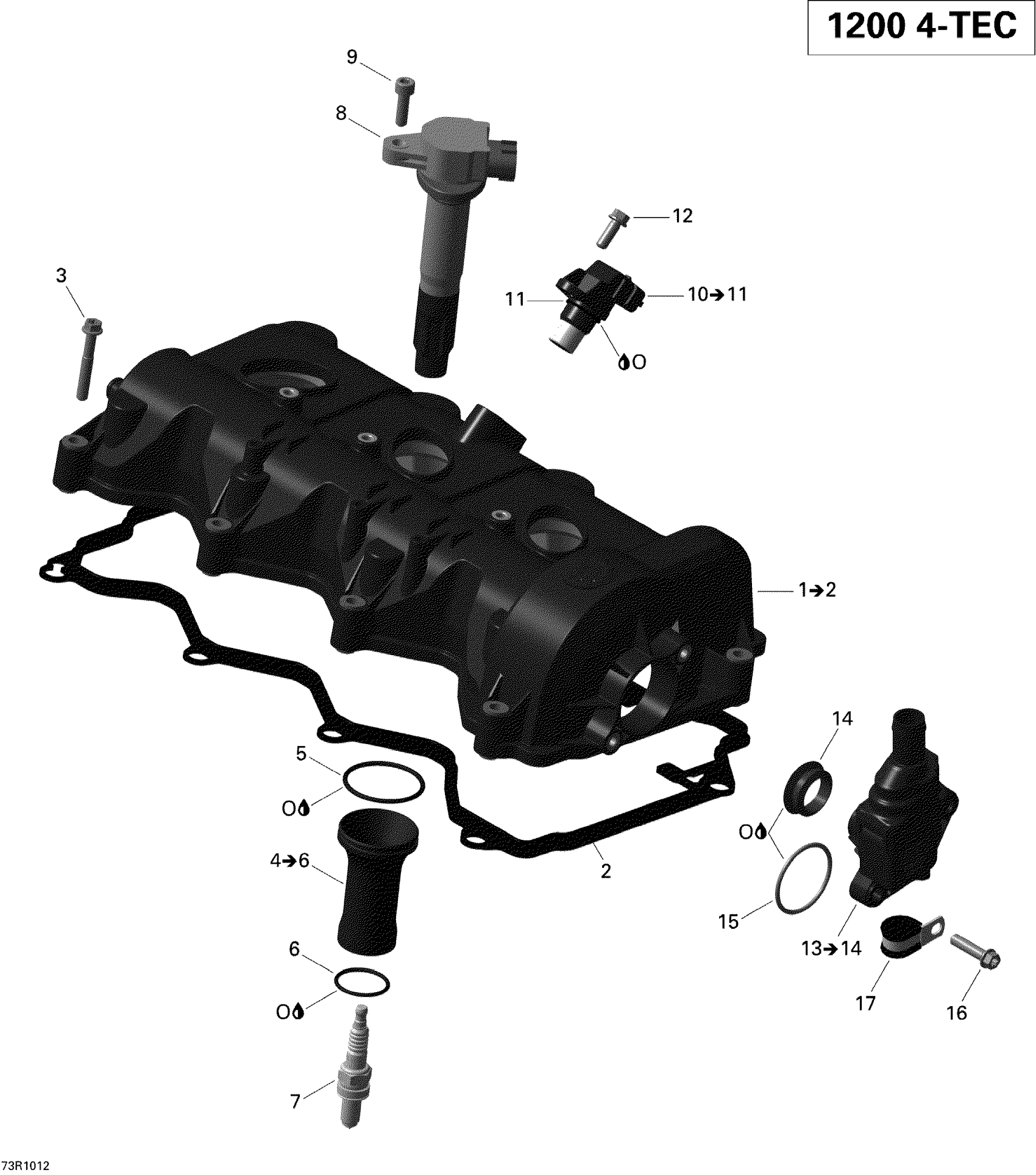

Ski-Doo Grand-Touring LE 1200, 2010 01- Valve Cover Diagram

Valve Cover Ass'y | Includes 1 to 2

Gasket

Torx Flange Screw M6 X 40

Spark Plug Pipe Ass'y | Includes 4 to 6

O-Ring

O-Ring

Spark Plug NGK CR8EKB

Stick Coil | Includes 8 to 9 This part replaces 420665810.

Socket Head Screw M6 X 20

Camshaft Position Sensor Ass'y

O-Ring

Torx Flange Screw M6 X 16

Vent Valve Ass'y | Includes no. 39-41

V-Ring 20S FPM Blow By Valve

O-Ring

Torx Flange Screw M6 X 25

Cable Clamp

Not Available As Spare Part - Friction Washer
