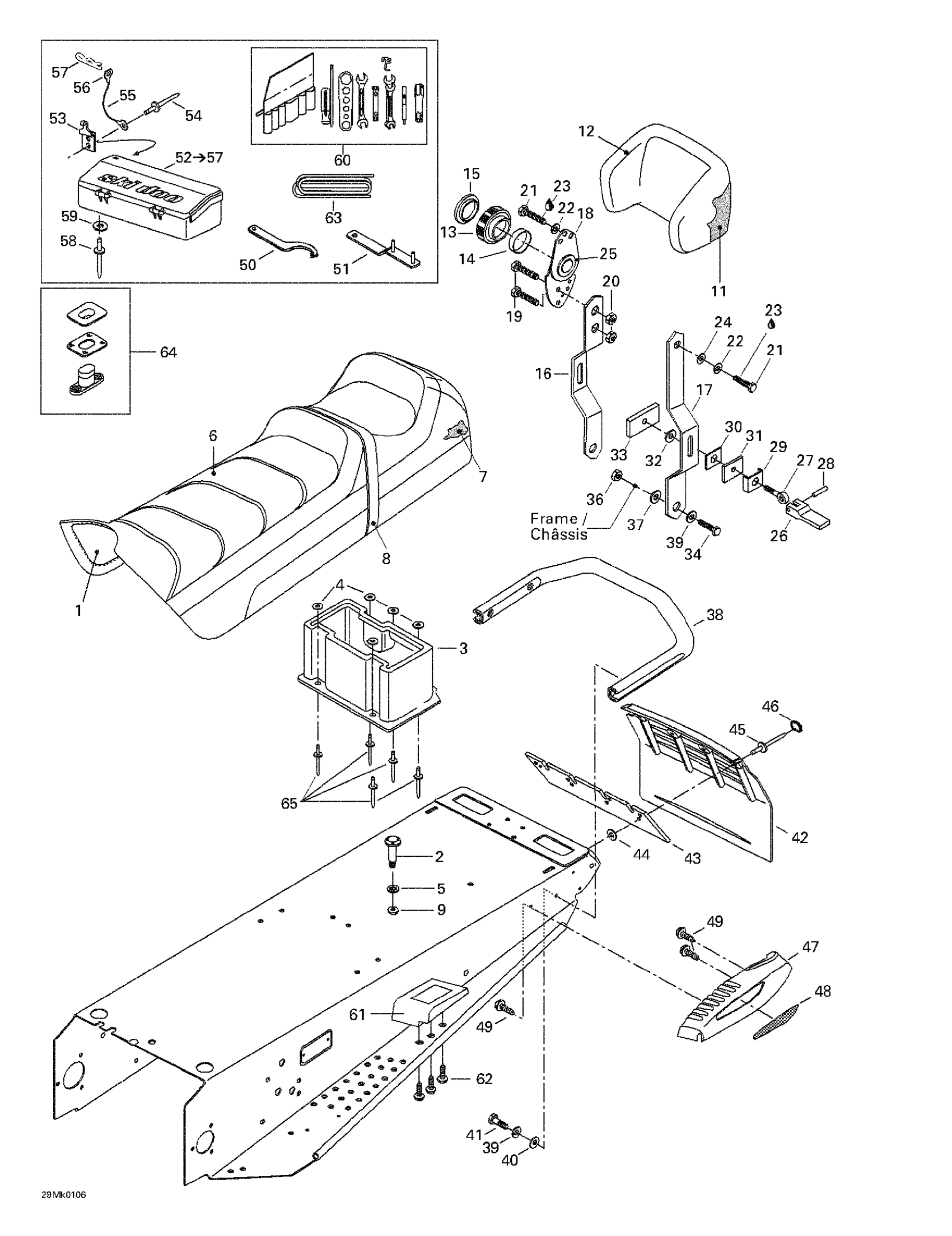

Ski-Doo Grand Touring 800 SE, 2001 Seat, Backrest And Accessories Diagram

#

Description
Price

1

Sub-Seat

510003589

Unavailable

2

«T» Bolt

732601221

Unavailable

3

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

4

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

5

Push Nut

732610072

$2.19

6

Seat Cover

510003837

Unavailable

7

Seat Foam

510003591

Unavailable

8

Seat Belt

415095600

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Backrest Ass'y | Includes 1 - 16.

510003783

Unavailable

11

Backrest Foam

414821200

Unavailable

12

Backrest Cover

510003782

Unavailable

13

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

14

STRIP - Call your local BRP dealership

415015500

Unavailable

15

Cap

414821000

Unavailable

16

RH Arm

517296400

Unavailable

17

LH Arm

517296500

Unavailable

18

Recliner

414813300

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.90

20

Hex. Elastic Stop Nut M8

232581414

$0.56

21

Hex. Screw M8 X 20

207182044

$0.74

22

Lock Washer 8 mm

234181401

$0.92

23

Loctite 243, 10 ml

293800060

$21.49

24

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

25

Cap

517250500

Unavailable

26

Lock Lever

572038200

Unavailable

27

Eye Bolt

517257600

Unavailable

28

Pin

414821400

$7.55

29

Guide

517257300

Unavailable

30

Spacer

317251300

Unavailable

31

Rubber Shim

570027400

Unavailable

32

Washer

414819500

Unavailable

33

Nut

517250000

Unavailable

34

Hex. Screw M8 X 25

207182584

Unavailable

35

Stainless Steel Flat Washer 8 mm

234081670

$0.67

36

Hex. Elastic Stop Nut M8

232581414

$0.56

37

Washer

414819600

Unavailable

38

Rear Bumper | Includes 32 to 33

517272510

Unavailable

39

Lock Washer 8 mm

234181401

$0.92

40

Flat Washer 8 mm

234081410

$0.83

41

Hex. Screw M8 X 20

207182044

$0.74

42

SNOW GUARD - Call your local BRP dealership

520000229

Unavailable

43

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

44

Flat Washer

517225900

$0.18

45

Pop Rivet 3/16"

293150100

$1.09

46

Cap

415073300

Unavailable

47

RH Moulding

572103900

Unavailable

LH Moulding

572104000

Unavailable

48

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

49

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

50

Adjustment Wrench

529000035

$2.09

51

Adjustment Wrench | LT

520000126

$1.49

52

Tool Box Ass'y | Includes 35 - 40.

520000107

Unavailable

53

Latch

517168500

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Terminal Ring

561502800

Unavailable

57

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

58

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

59

Washer

517124300

$0.19

60

Tool Kit (Not Shown) | Includes 44 - 55.

529035592

Unavailable

61

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

62

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

63

Was 412500100 Rope-Starter

219704403

$158.99

64

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

65

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
