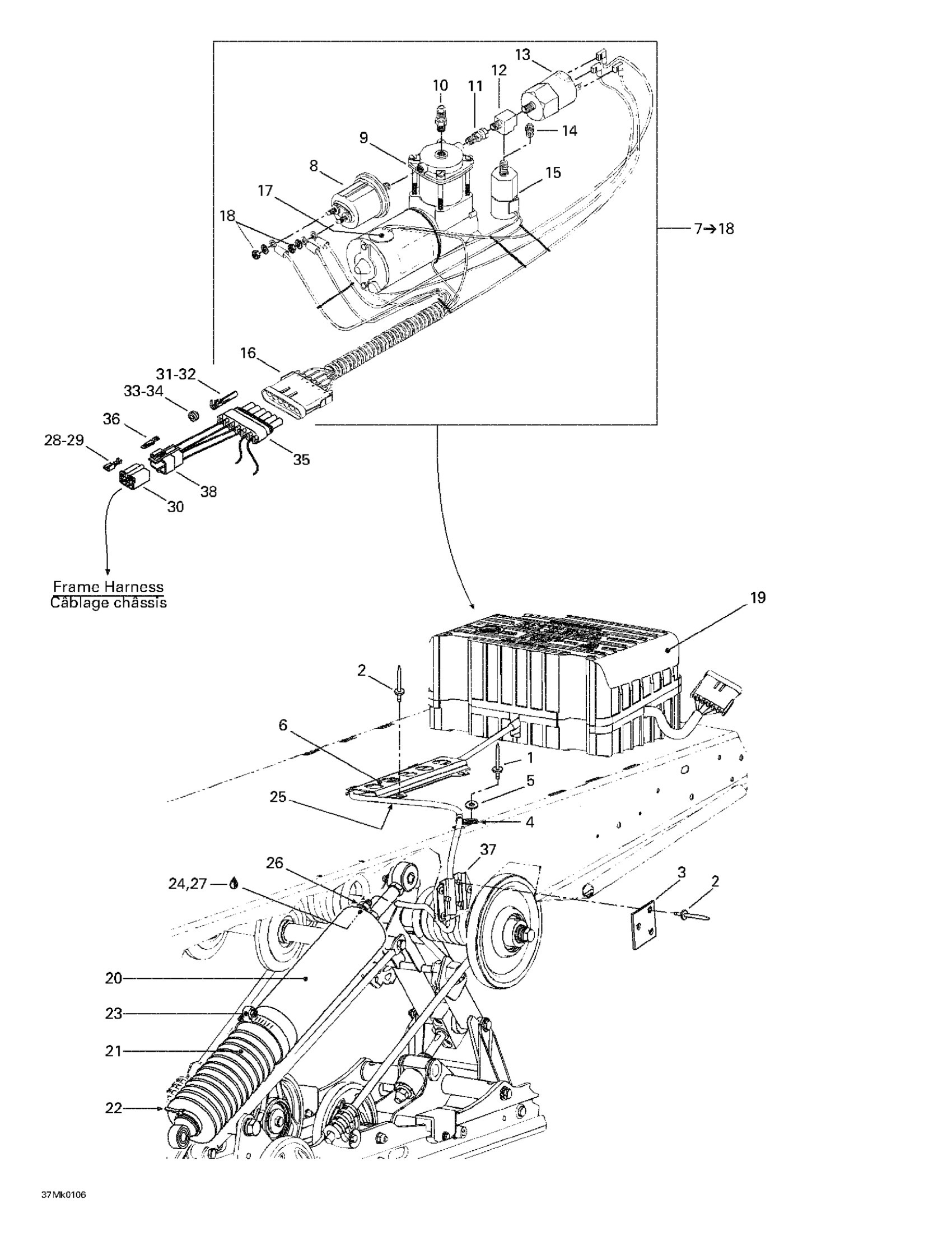

Ski-Doo Grand Touring 800 SE, 2001 08- Air Shock And Compressor Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402200

$0.35

2

Pop Rivet 3/16"

390402400

$0.35

3

Protector Plate

518317563

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Washer

517124300

$0.19

6

Upper Guide

518317580

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Pressure Sender | Grand Touring 600. Grand Touring 700.

415043600

Unavailable

9

Air Compressor | Grand Touring 600. Grand Touring 700.

503189096

Unavailable

10

Adaptor | Grand Touring 600. Grand Touring 700.

414893900

Unavailable

11

Swivel Fitting

415108400

Unavailable

12

T Fitting

415116400

Unavailable

13

Valve | Grand Touring 600. Grand Touring 700.

503189212

Unavailable

14

Pressure Regulator | Grand Touring 600. Grand Touring 700.

415099200

Unavailable

15

VALVE - Call your local BRP dealership

503189097

Unavailable

16

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

17

Resettable Fuse

409014400

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compressor Box

503189049

Unavailable

20

Shock

503189268

Unavailable

21

Protection Boot

570278300

$59.99

22

Tie-Rap 180 mm

414115200

$0.11

23

Tridon Gear Clamp | Grand Touring 600. Grand Touring 700.

408803300

Unavailable

24

Was 293800041 Loctite Primer 7649

219704458

$39.99

25

Pneumatic Hose

415093700

Unavailable

26

Adaptor | Grand Touring 600. Grand Touring 700.

414893900

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

Female Terminal PACKARD

561503200

Unavailable

29

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

30

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

31

Female Terminal

278000223

$3.19

32

Female Connector, 2 Circuits

409207300

$9.85

33

Wire Seal

278000218

$4.39

34

Wire Seal

710000048

$7.69

35

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

36

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

37

Protector Guide

518317562

Unavailable

38

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable
